1998-2002 Lexus LX470 Climate Control button repair kit

Last batch- once sold out we will not be restocking these

FOR 1998-2002 LEXUS LX470 ONLY - DOES NOT FIT LAND CRUISER

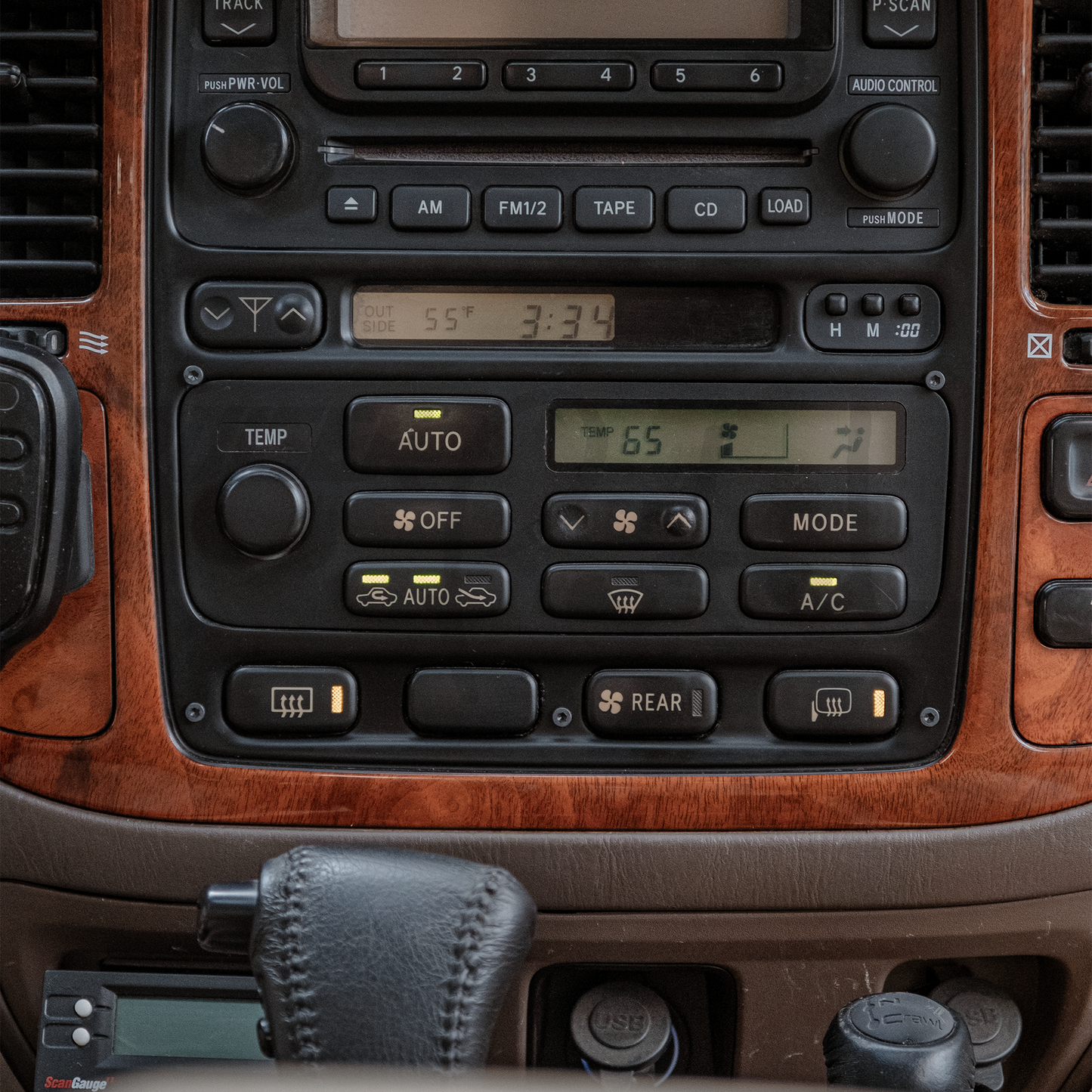

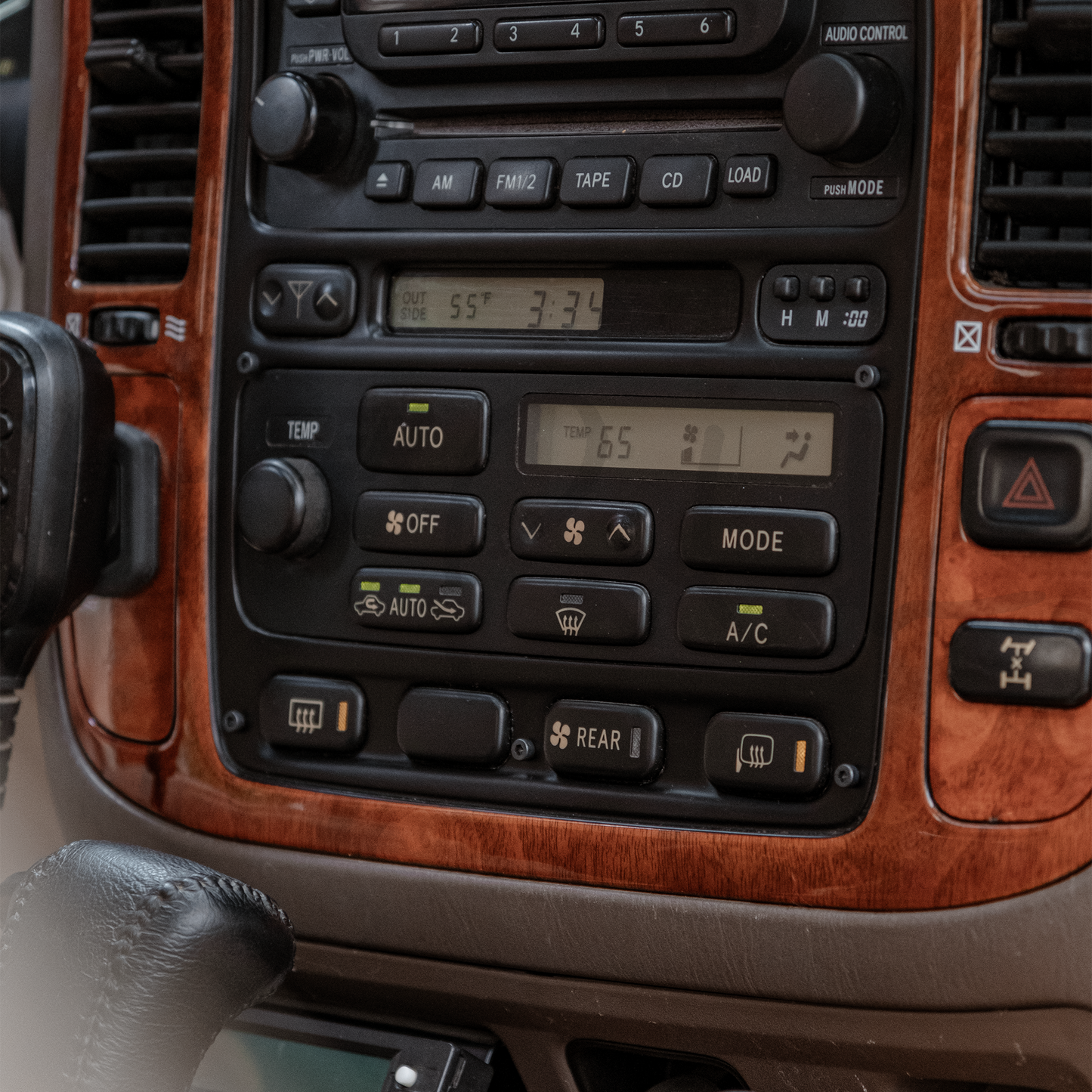

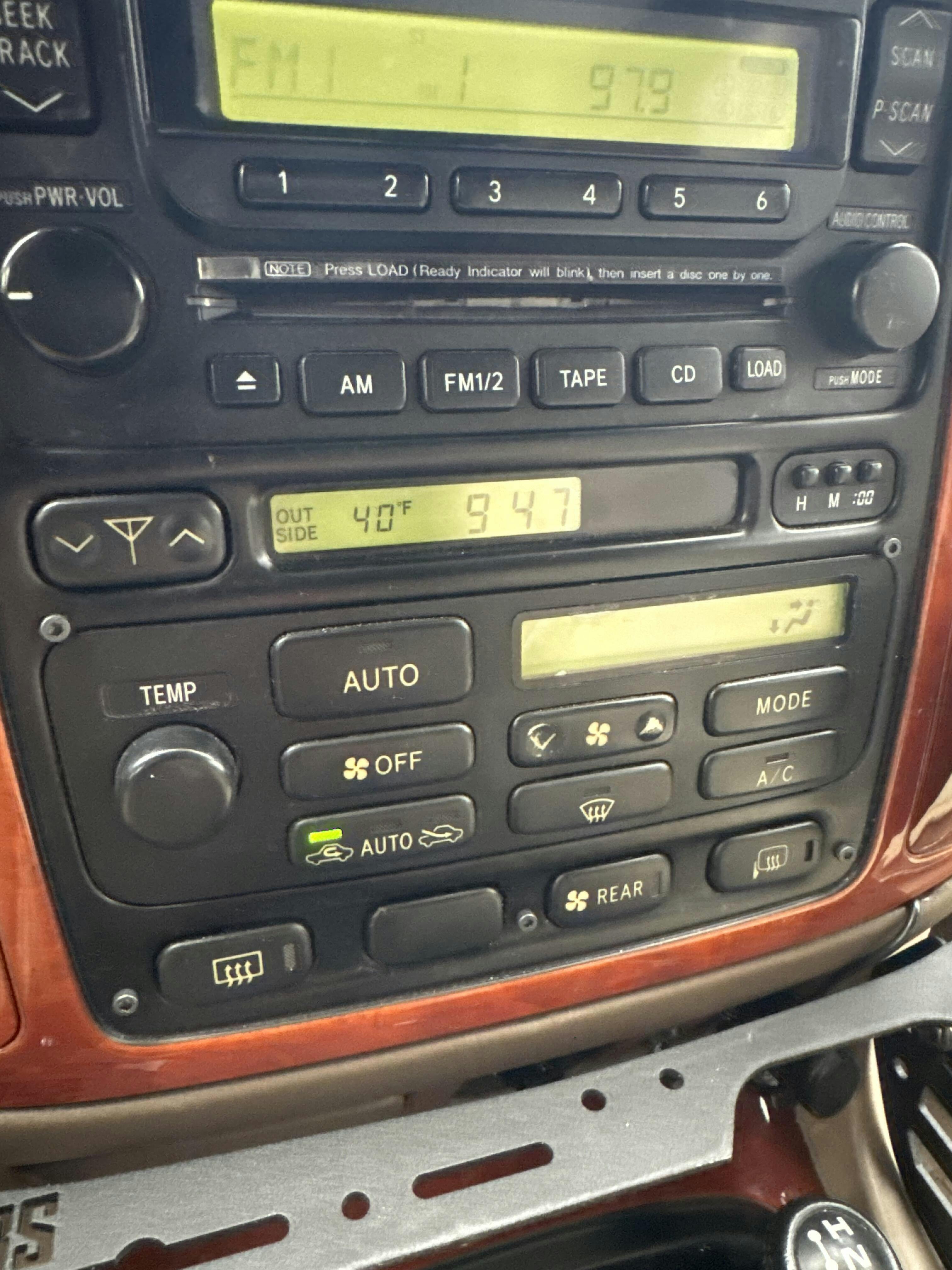

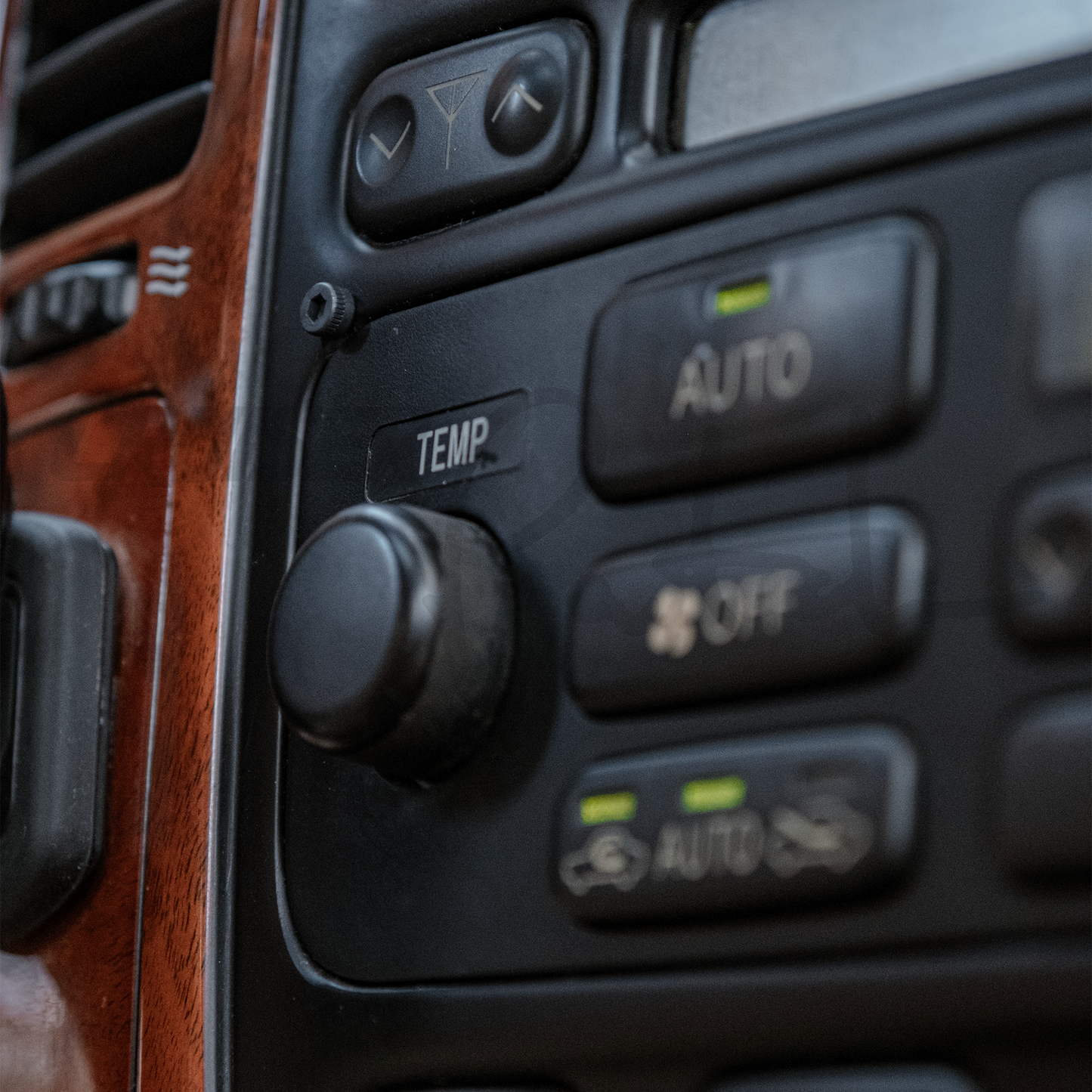

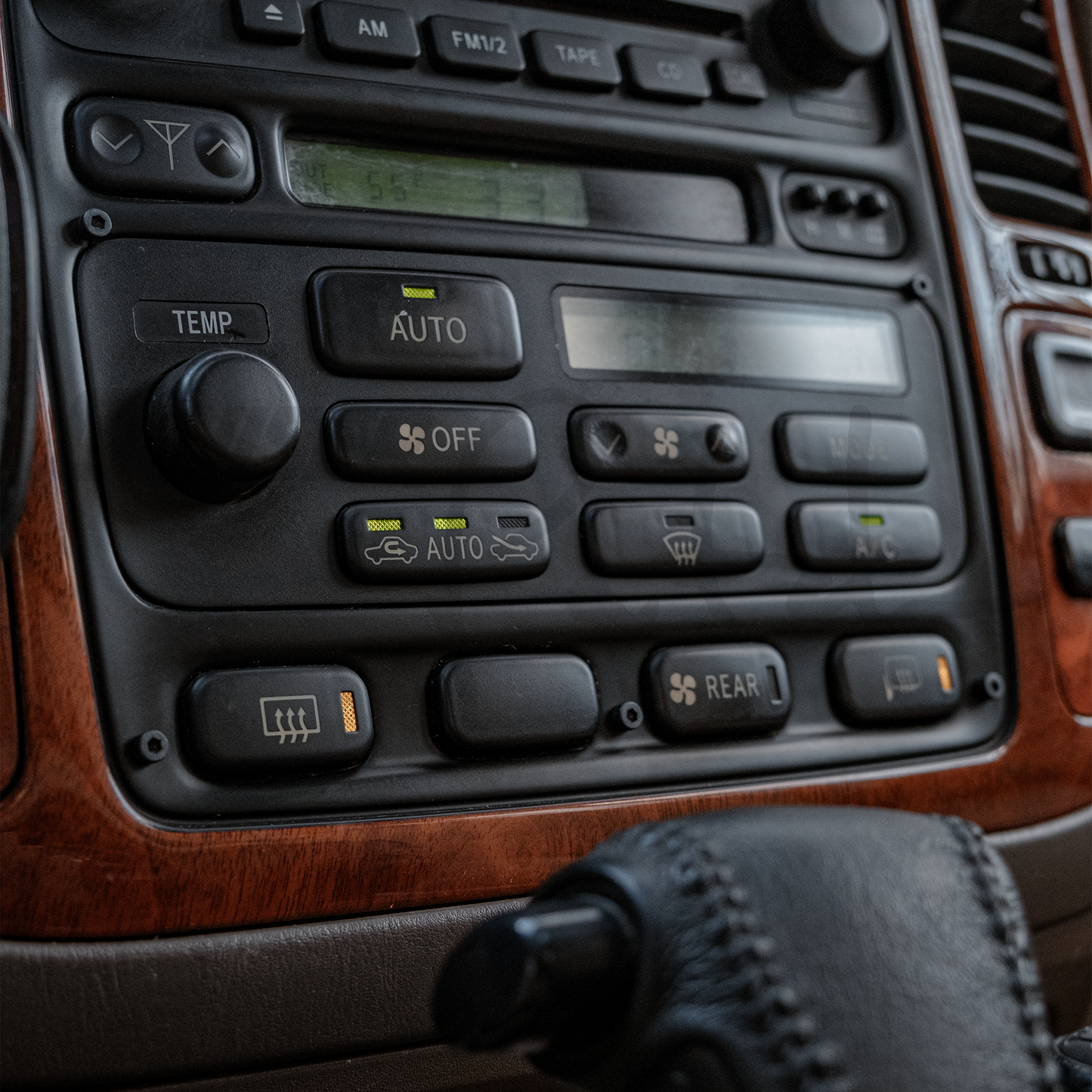

The A/C controls on the 98-02 LX470 are held together with small screws buried into plastic risers. When they break away, the circuit board pushes out from the buttons and the controls cease to work.

By drilling out the holes and adding five (5) allen-head bolts, one can reattach the climate controls and enjoy the luxuries of the LX470 climate system once again.

This is more of a band-aid kit to help re-secure the buttons onto the climate control unit. It is not a perfect solution but it improves the usability of the controls significantly. No more mashing the buttons a dozen times!

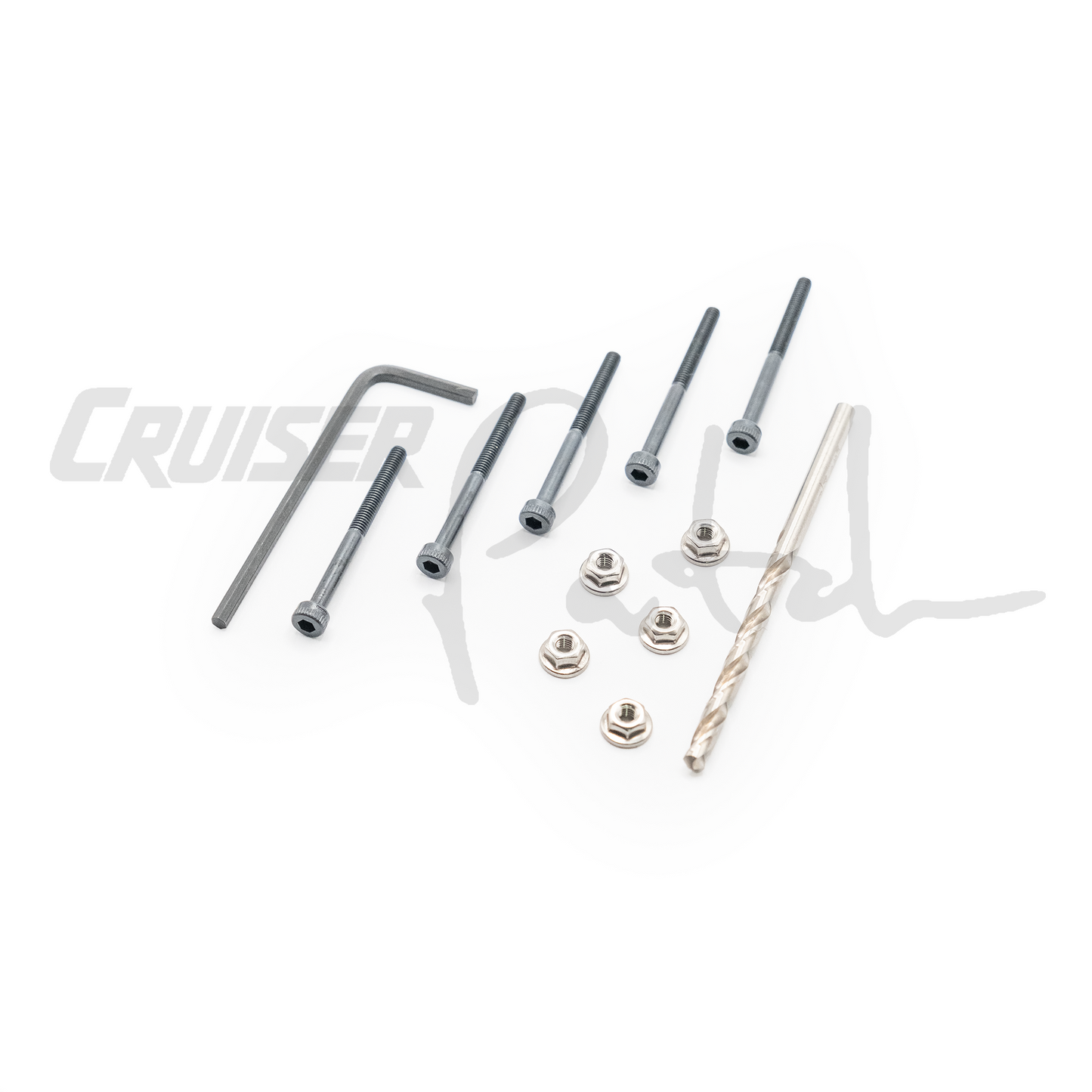

Kit includes:

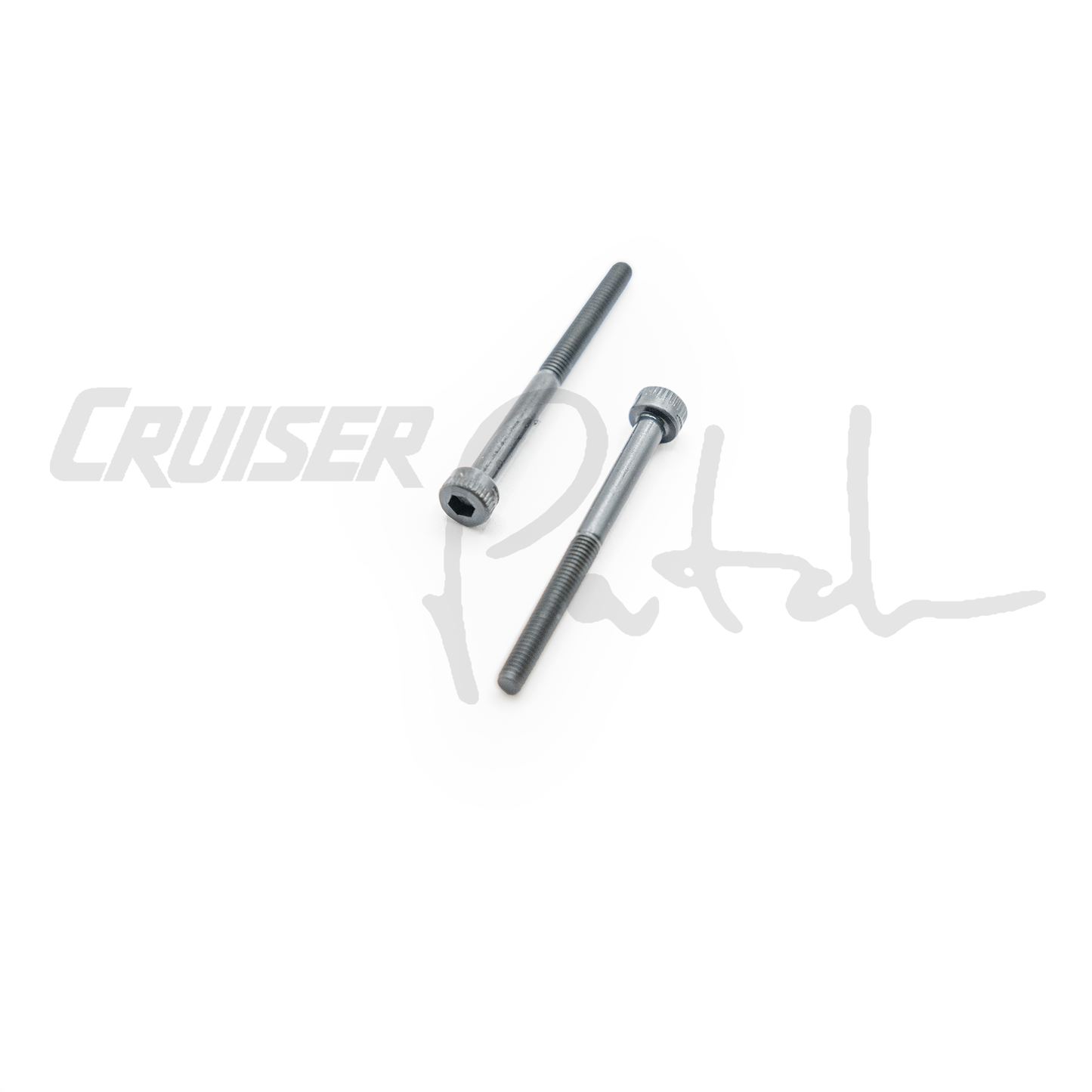

• M3x0.5mm, 35mm long allen head bolts (5x)

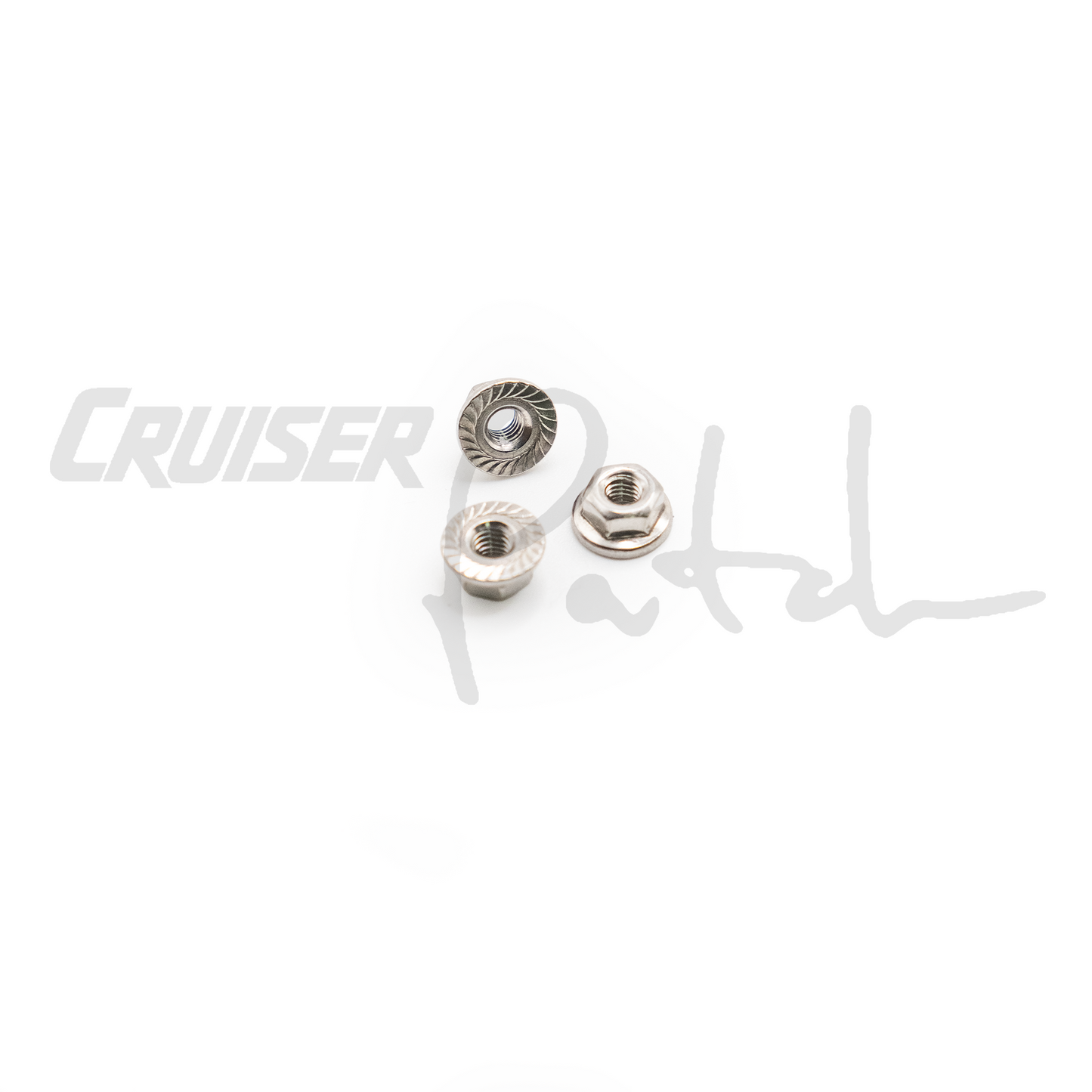

• M3x0.5mm stainless serrated flange nuts (5x)
• 9/64 drill bit (made in USA)
• 2.5mm allen key


Instructions:

1. Remove climate controls from dash using trim removal tools
2. Unscrew rear plastic cover from unit
3. Apply masking tape to front of AC controls (prevents plastic from chipping)
4. Drill all the way through screw holes using provided drill bit
5. Reinstall cover using M3 bolts and nuts
6. Reinstall climate controls

*NOTE: if the buttons are still inoperable after installation, add small layers of 3M VHB (with one side of adhesive still covered) or Flex-tape to the back of each inoperable button. This often allows for contact between the plastic bezel knob and the rubberized button on the circuit board.

Cruiser Design & Manufacturing makes a superior version of this kit. Buy his: https://cruiserdm.com/products/100-series-lc-lx470-ac-controls-refresh-kit
