Cruiser Patch 100 Series Toyota Land Cruiser CV Axle Puller Tool SST

Now in stock!

When replacing a CV, rebooting a joint, or changing any front-end driveline components on a 100 Series Toyota Land Cruiser or Lexus LX470 it is important to use the correct size snap ring for the axle flange.

See also: 100 Series CV axle snap ring kit (hub)

See also: Patch's Favorite Snap Ring Pliers

The correct thickness of snap ring (ranging from 1.8mm to 2.8mm) is selected by pulling the CV axle into the hub using an M8x1.25 bolt. The proper gap, measured with a feeler gauge, should measure at < 0.2mm (0.008") between the snap ring and axle flange.

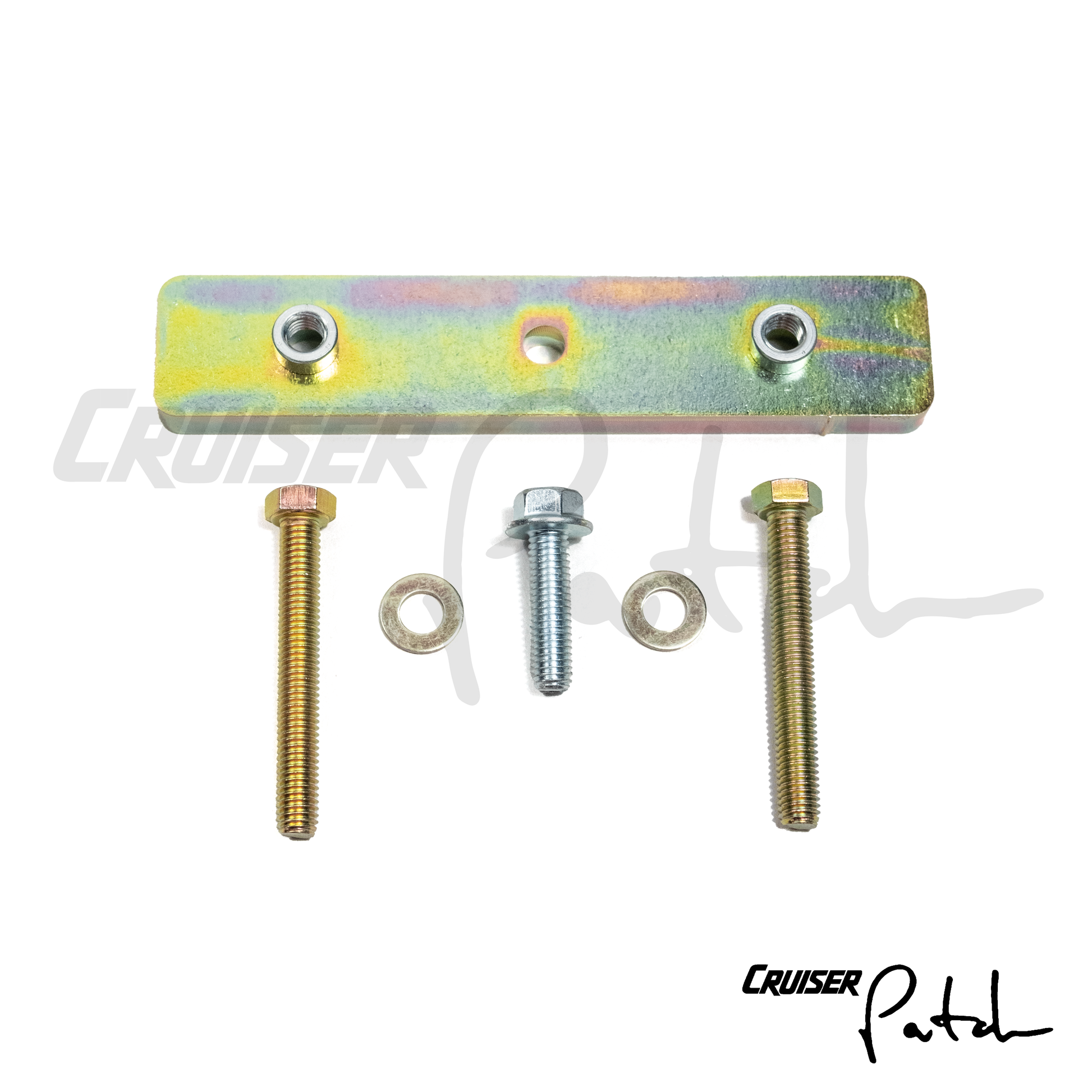

Includes:

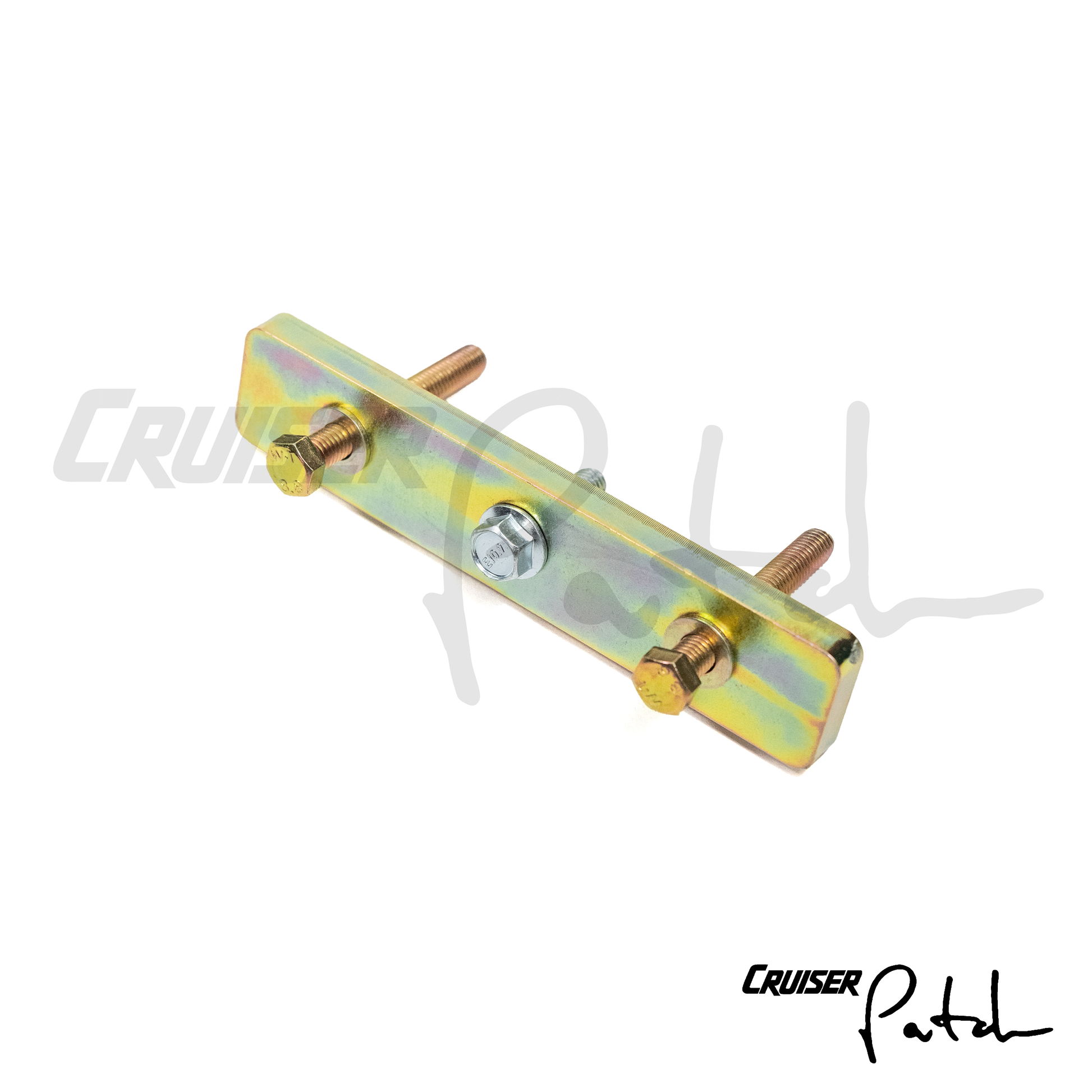

• Cruiser Patch CV axle puller tool (1x): .375" yellow zinc plated HR A36
• M8x1.25 60mm JIS bolts (2x): grade 8.8 yellow zinc plated
• M8x1.25 JIS bolt (1x): 12mm flanged head
• M8 washers (2x): grade 8.8 yellow zinc plated

Fitment Details:

• 01.1998-08.2007 Toyota Land Cruiser
• 01.1998-08.2007 Lexus LX470

DESIGNED by Cruiser Patch in Atlanta, GA - MADE IN USA
