OEM Turn Signal Corner Light Retrofit Kit for Lexus LX470

Kit designed for 1998-2007 Lexus LX470

See also: Lexus LX470 plug & play kit

Repining and wiring is necessary to add the Land Cruiser style dual-filament bulbs (6W corner light, 21W indicator/turn signal). Using our kit you can easily add the turn signal feature with minimal effort. Simply plug the provided male connector (90980-11155) into the existing female connector and add the turn signal wire from the factory fog light assembly to the provided three-pin female connector (90980-11020).

The 100 Series Toyota Land Cruiser came equipped with dual-filament bulbs for 6W corner lights and 21W indicator/turn signals. Now you can retrofit these into a Lexus LX470 using JDM Clear Corner lenses.

YouTube Tutorial

Wiring for 90980-11020:

1. Port #1: green
2. Port #2: white
3. Port #3: black

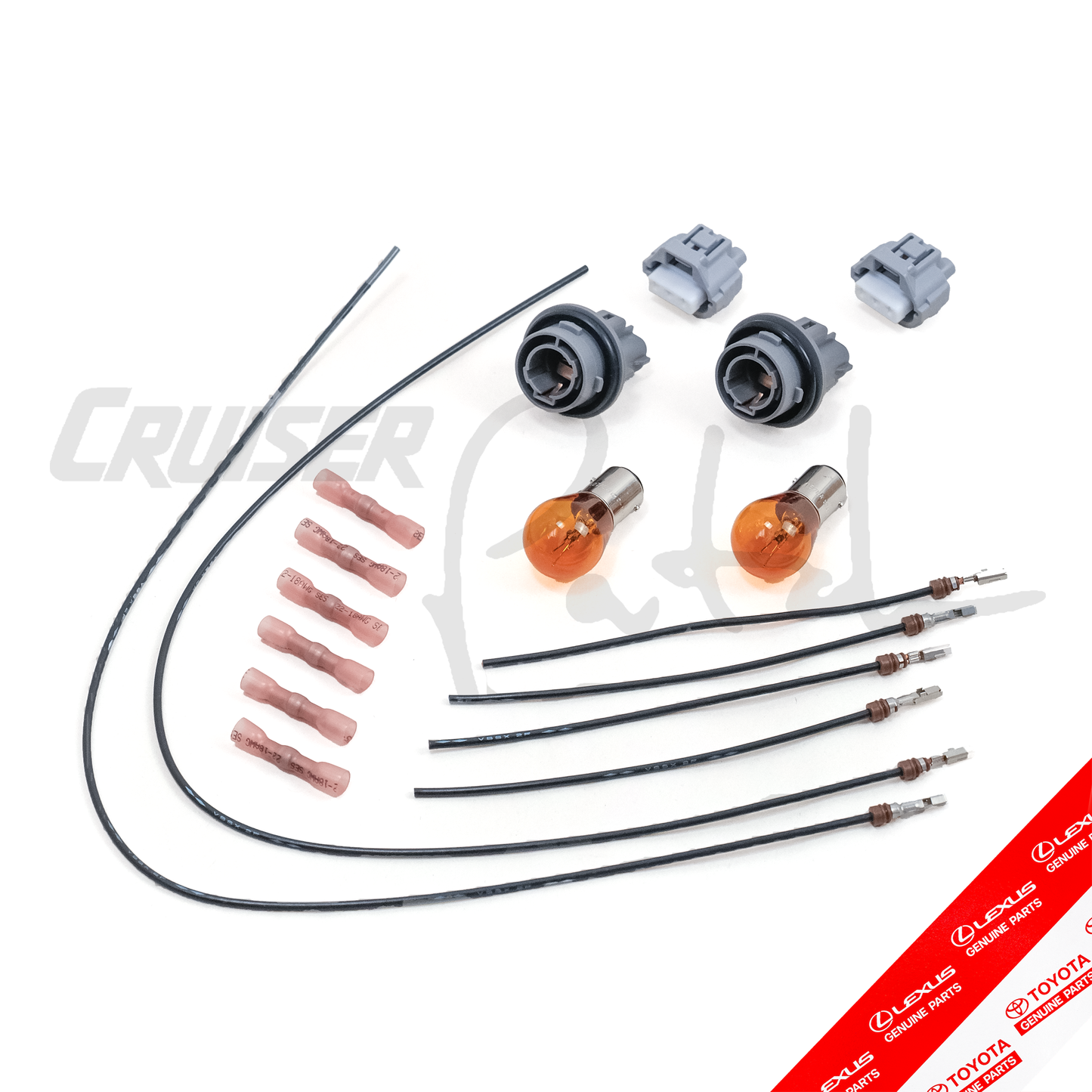

LX470 to Land Cruiser turn signal retrofit kit (clear): (OEM plastic lenses)

• OEM RH JDM clear corner light (1x): 81511-60490
• OEM LH JDM clear corner light (1x): 81521-60360
• **OEM Land Cruiser dual filament bulb (2x): 90981-12024
• OEM 3-pin Connector (2x): 90980-11020
• OEM 3-pin socket plug (2x): 90075-99106
• OEM female 500mm terminal repair wire (1x): 82998-12590
• OEM female 160mm terminal repair wire (2x): 82998-12440
• 22-18 AWG solder-filled heat shrink butt connectors (3x): lead-free, heat shrink

LX470 to Land Cruiser turn signal retrofit kit (orange corners): (OEM plastic lenses)

• OEM RH OEM corner light (1x): 81511-60500
• OEM LH OEM corner light (1x): 81521-60370
• **OEM Land Cruiser dual filament bulb (2x): 90981-12024
• OEM female 160mm Terminal Repair (4x): 82998-12440
• OEM 3-pin Connector (2x): 90980-11020
• OEM 3-pin socket plug (2x): 90075-99106
• OEM female 500mm terminal repair wire (2x): 82998-12590
• OEM male 160mm terminal repair wire (4x): 82998-12430
• OEM 2-pin male connector (2x): 90980-11155

Fitment details:

• 01.1998-07.2007 Lexus LX470 (UZJ100)

*Some states require yellow/amber corner markers and may fail a vehicle during inspection without them. Be sure to know your local vehicular standards and uphold them when applicable.

**LED bulbs from Lastfit: T3-1157D use code "PATCH" for 15% off

Vehicles pictured: Patch's 1999 LX

MADE IN JAPAN
