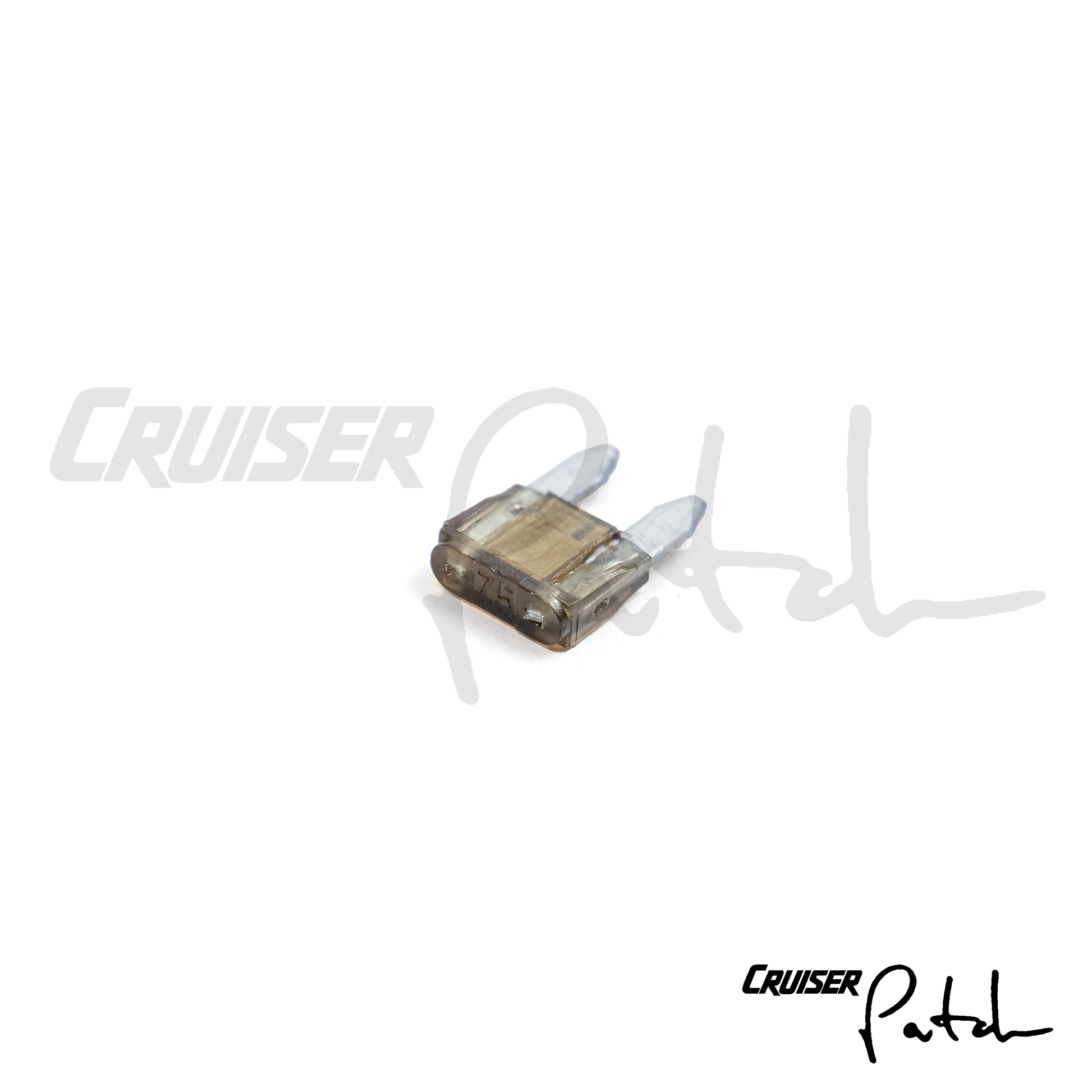

HKB Electronics 7.5A MK3 AGM Fused Mini Blade Battery Voltage Boost Regulator with PTC

Adding a voltage booster is a necessary upgrade for anyone running an AGM battery in their vehicle. Cruiser Patch recommends using this fused diode to increase alternator voltage output at idle and under load from 13.2V-14.2V to 14.4-14.6V.

"The PTC device incorporated in the MK3 offers far better circuit protection than both the OEM fuse it replaces and all other types of voltage boosters. Should an electrical fault develop in the vehicles wiring other types of booster diodes will be destroyed and need to be replaced, this is not the case with the MK3 unit, in the event of an electrical fault occurring, the PTC device in the MK3 detects the excessive current flow and turns off preventing damage to the booster unit, the vehicles wiring, and alternator. Once the electrical fault has been removed the PTC device automatically resets and the booster unit will resume normal operation."

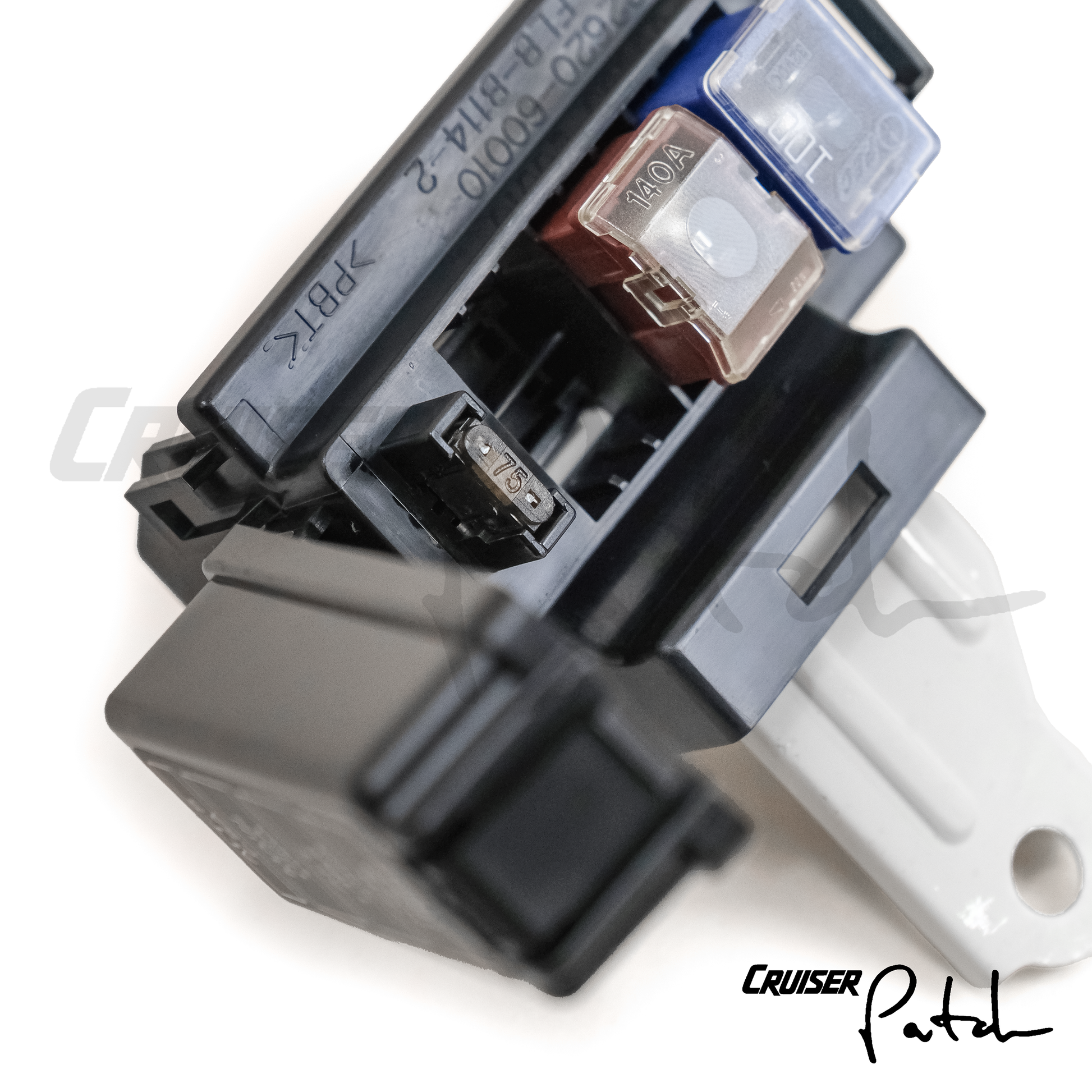

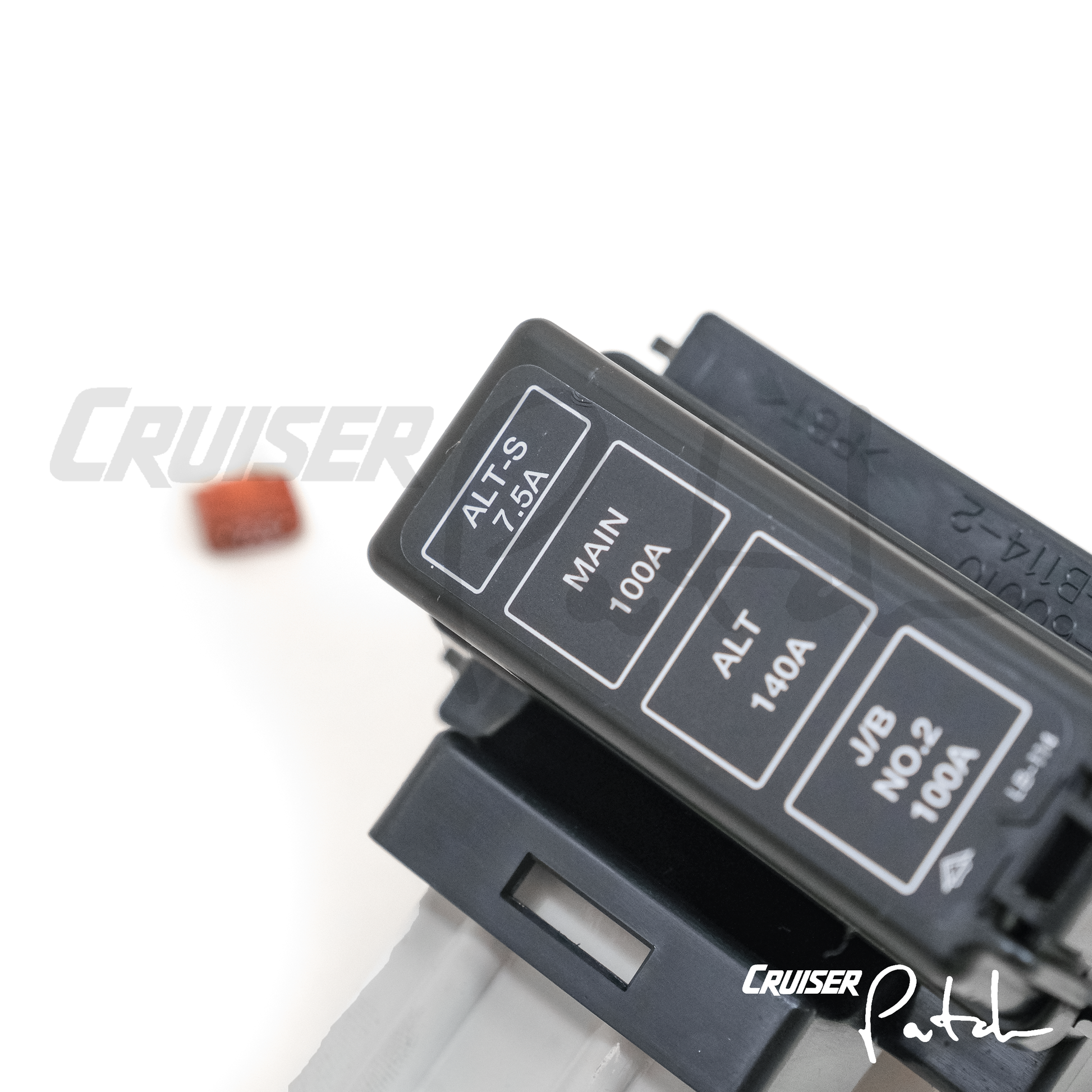

Replaces 90982-09008 (90080-82020) "ALT-S" 7.5A fuse in Toyota and Lexus vehicles.

Improper diode orientation will trigger the battery light- in this case, simply reverse the diode.

Compatible in 5A 'ALT-S' fuse locations- HKB engineers the 5A microblade diodes with the same internals as the 7.5A miniblades. The only difference, therefore, is the outer shell. The 5A microblade voltage boosters trip around 750mA.

Includes:

• HKB 7.5A MK3 Mini Blade w/ PTC

Features:

• Universal fitment (fits all mini-blade and micro-blade 7.5A and 5A alternator regulator fuse applications)
• Epoxy resin encapsulated
• Designed & manufactured in AUS
• 100% plug & play
• 3-year manufacture & material warranty

Fitment details:

• 01.1998-08.2007 Toyota Land Cruiser (UZJ100, HDJ100, FZJ100, HDJ101, FZJ105, HZJ105)
• 01.1998-08.2007 Lexus LX470 (UZJ100)
• 09.2007+ Toyota Land Cruiser (VDJ200)
• 11.2007+ Lexus LX570 (URJ201)
• 01.2012-08.2015 Lexus LX460 (URJ202)
• 09.2015+ Lexus LX450D (VDJ201)
• 10.1996-09.2001 Toyota Mega Cruiser (BXD20)
• 11.2002-07.2009 Lexus GX470 (UZJ120)
• 04.1996-08.2002 Toyota Land Cruiser Prado (KDJ90, KDJ95, KZJ90, KZJ95, VZJ90, VZJ95, LJ90, LJ95, RZJ90, RZJ95)
• 09.2002-07.2009 Toyota Land Cruiser Prado (GRJ120, GRJ125, KDJ120, KDJ125, LJ120, LJ125, RZJ120, RZJ125, TRJ120, TRJ125)
• 01.2006-12.2017 Toyota FJ Cruiser (GSJ10, GSJ15)
• 01.1995-08.2004 Toyota Tacoma
• 02.1999-09.2006 Toyota Tundra
• 09.2000-10.2007 Toyota Sequoia
• Many more!

MADE IN AUSTRALIA
