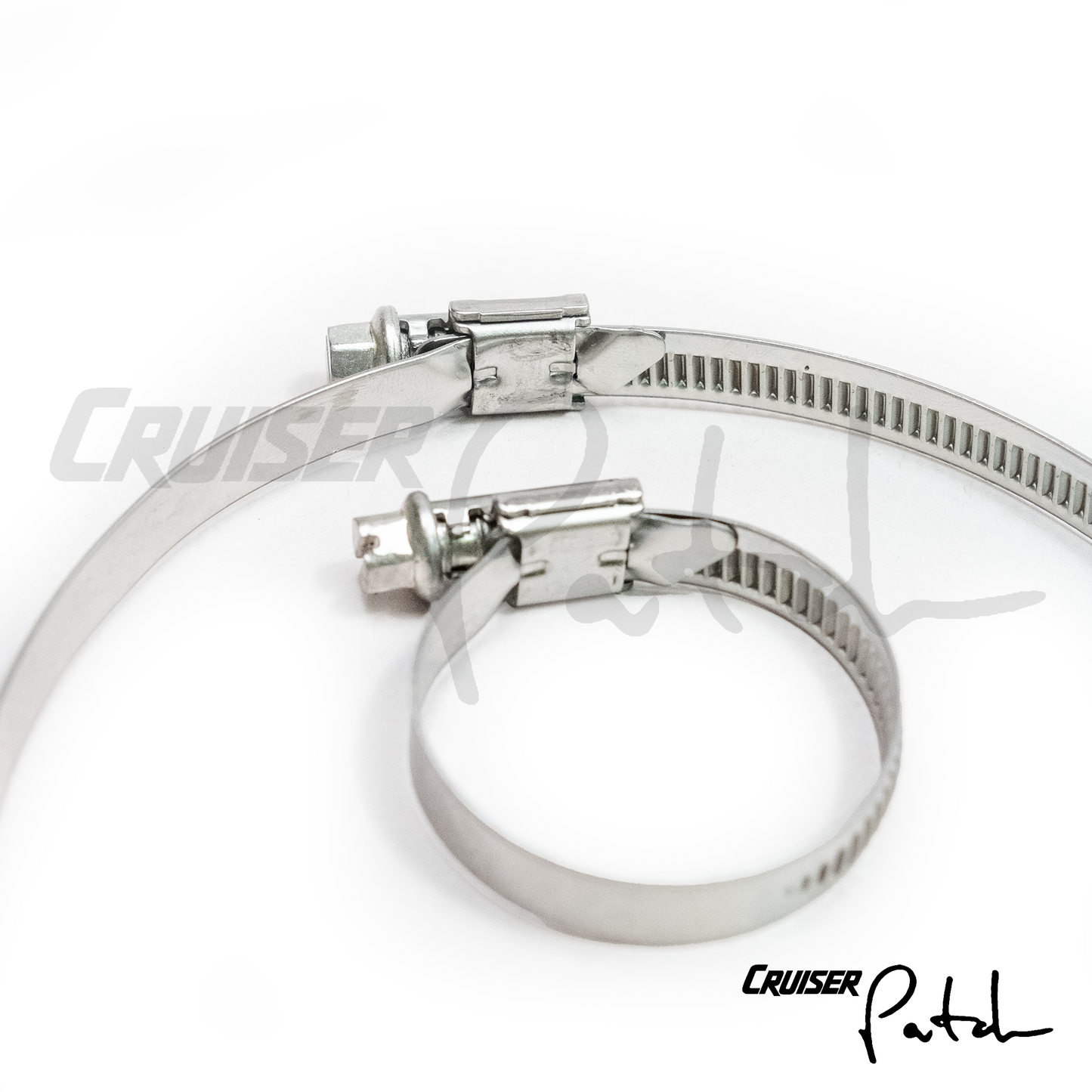

Cruiser Patch 100 Series & 200 Series Toyota Land Cruiser Worm-Style CV Boot Clamp Kit

Aftermarket worm-style CV boot clamps allow for a tighter install of the boot, preventing grease loss or leaks. Clamp edges are rolled on a smooth band to avoid cutting through OEM boot rubber.

Clamps are made from 304 stainless steel (high corrosion resistance) with a 7mm hex & slotted drive screw.

• Max torque (large) 35 in-lbs.
• Max torque (small) 26 in-lbs.

CV Axle Reboot Video

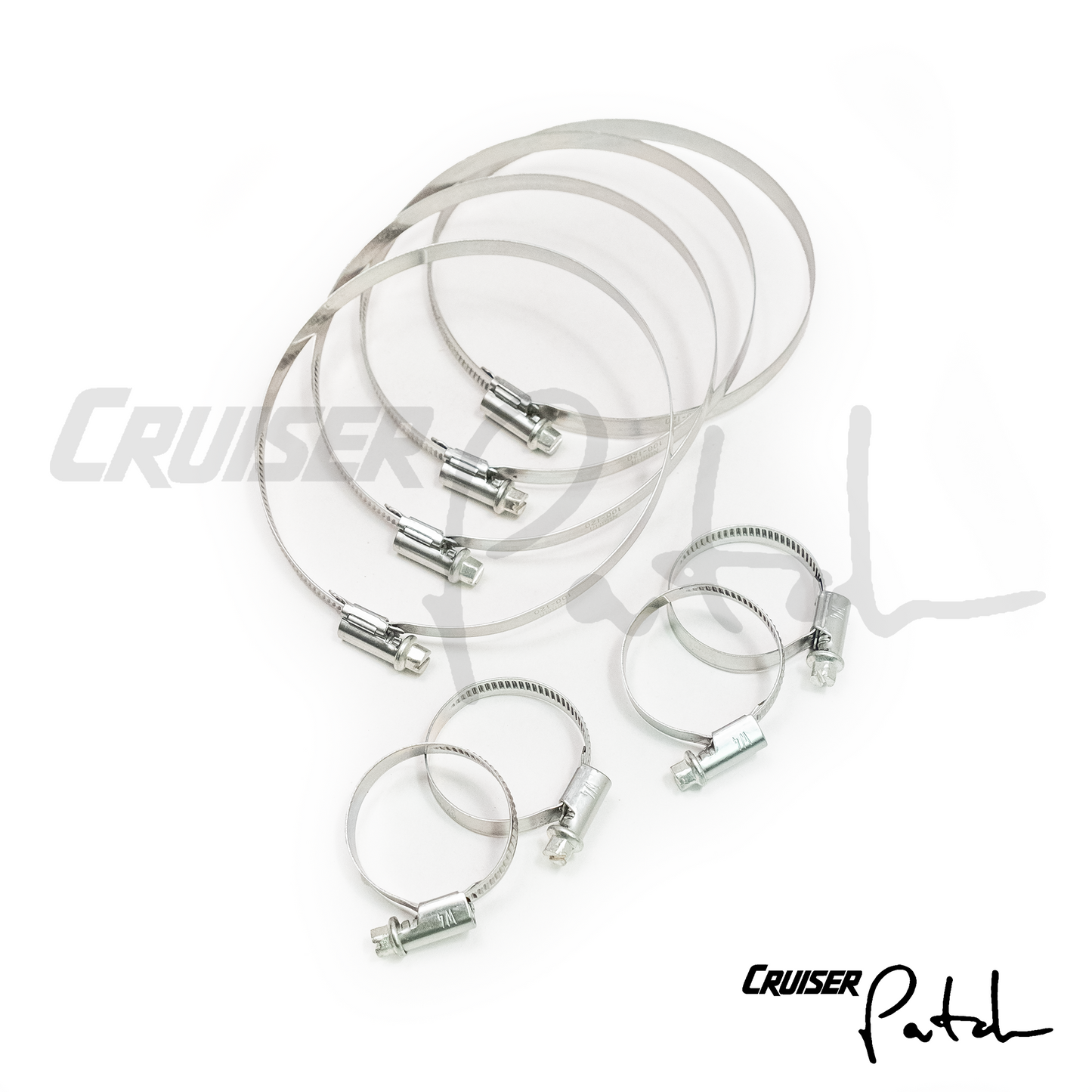

Includes:

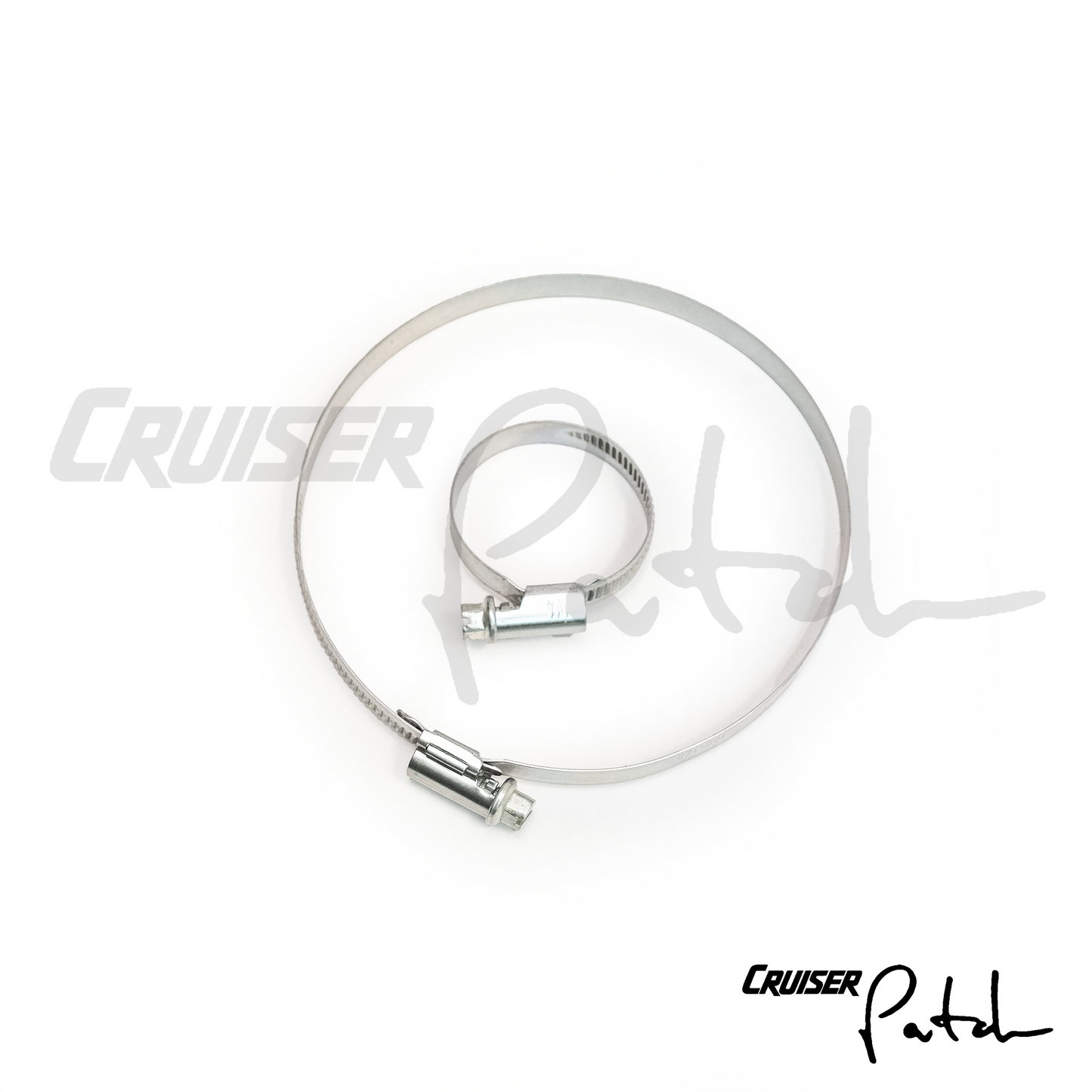

• Large (100mm-120mm) worm-style CV boot clamps (4x)
• Small (25mm-40mm) worm-style CV boot clamps (4x)

Vehicle fitment:

• 01.1998-07.2007 Toyota Land Cruiser (UZJ100, HDJ100, FZJ100, HDJ101, HZJ105, FZJ105)
• 09.2007+ Toyota Land Cruiser (UZJ200, GRJ200, URJ200, VDJ200, URJ201, VDJ201)
• 01.1998-07.2007 Lexus LX470 (UZJ100)
• 11.2007+ Lexus LX570/460/450D (URJ201, URJ202, VDJ450D)

MADE IN GERMANY
