Cruiser Patch AHC Globe (Accumulator) 36mm Wrenches for Toyota & Lexus Active Height Control Suspension

100 Series, 200 Series and 300 Series Toyota Land Cruisers and Lexus LX SUVs (LX470, LX570, LX460, LX450D, LX500D, LX600, LX700H) equipped with the Active Height Control (AHC) suspension system require maintenance in order to operate at full efficiency. One of the most common sources of harsh ride can be the damping force control actuators (also known as 'globes').

In order to replace the globes, one can simply unscrew them and screw the new ones on (we recommend replacing the o-rings as well: 100 Series AHC globe o-ring kit)

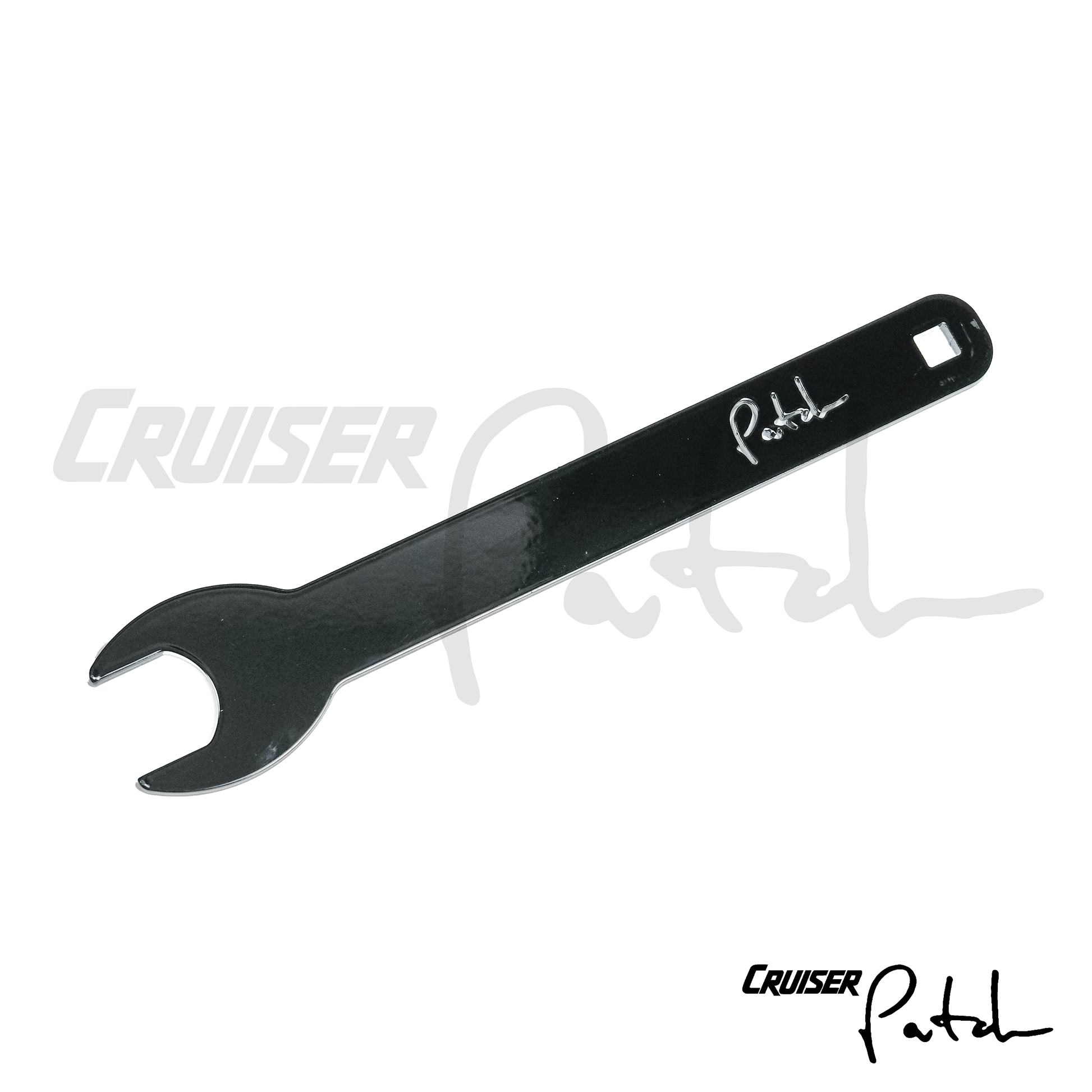

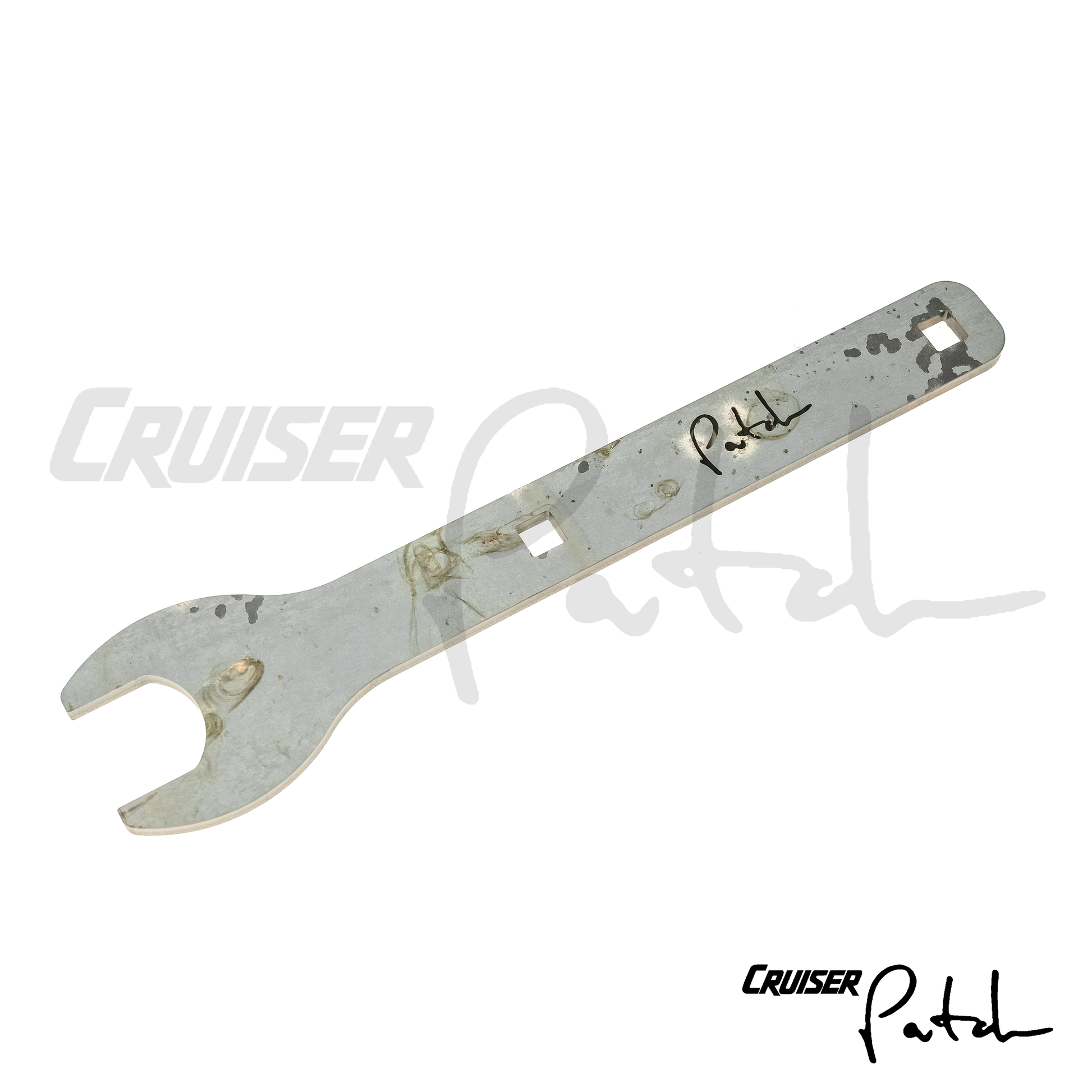

The Cruiser Patch 36mm AHC globe wrench (V3) is laser cut from 1/4" AR500 steel here in the USA. The wrench includes two 1/2" drive tool slots for use of a breaker bar should it be required.

Works with:

• OEM accumulator suspension control RH/LH (1x): 49141-60010 (front), 49151-60010 (rear)
• OEM accumulator suspension control RH/LH (1x): 49141-60020 (front), 49151-60020 (rear)
• OEM accumulator suspension control RH/LH (1x): 49141-60040 (front), 49151-60040 (rear)

Includes:

• Cruiser Patch 36mm AHC globe wrench V3 (1x):
• Cruiser Patch 36mm AHC globe wrench V3 stubby (1x):
• Lifetime, no-questions-asked warranty

Vehicle application: (AHC equipped)

• 01.1998-08.2007 Toyota Land Cruiser (UZJ100, HDJ100, HDJ101)
• 01.1998-07.2007 Lexus LX470 (UZJ100)
• 09.2007+ Toyota Land Cruiser (URJ200, VDJ200, UZJ200, URJ202)
• 11.2007+ Lexus LX570 (URJ201)
• 01.2012-08.2015 Lexus LX460 (URJ202)
• 09.2015+ Lexus LX450D (VDJ201)
• 12.2021+ Toyota Land Cruiser (VJA310)
• 12.2021+ Lexus LX600 (VJA310)
• 12.2021+ Lexus LX500D (FJA310)
• 2024+ Lexus LX700H (VJH310)

See also: 100 Series AHC globe o-ring kit

MADE IN USA
