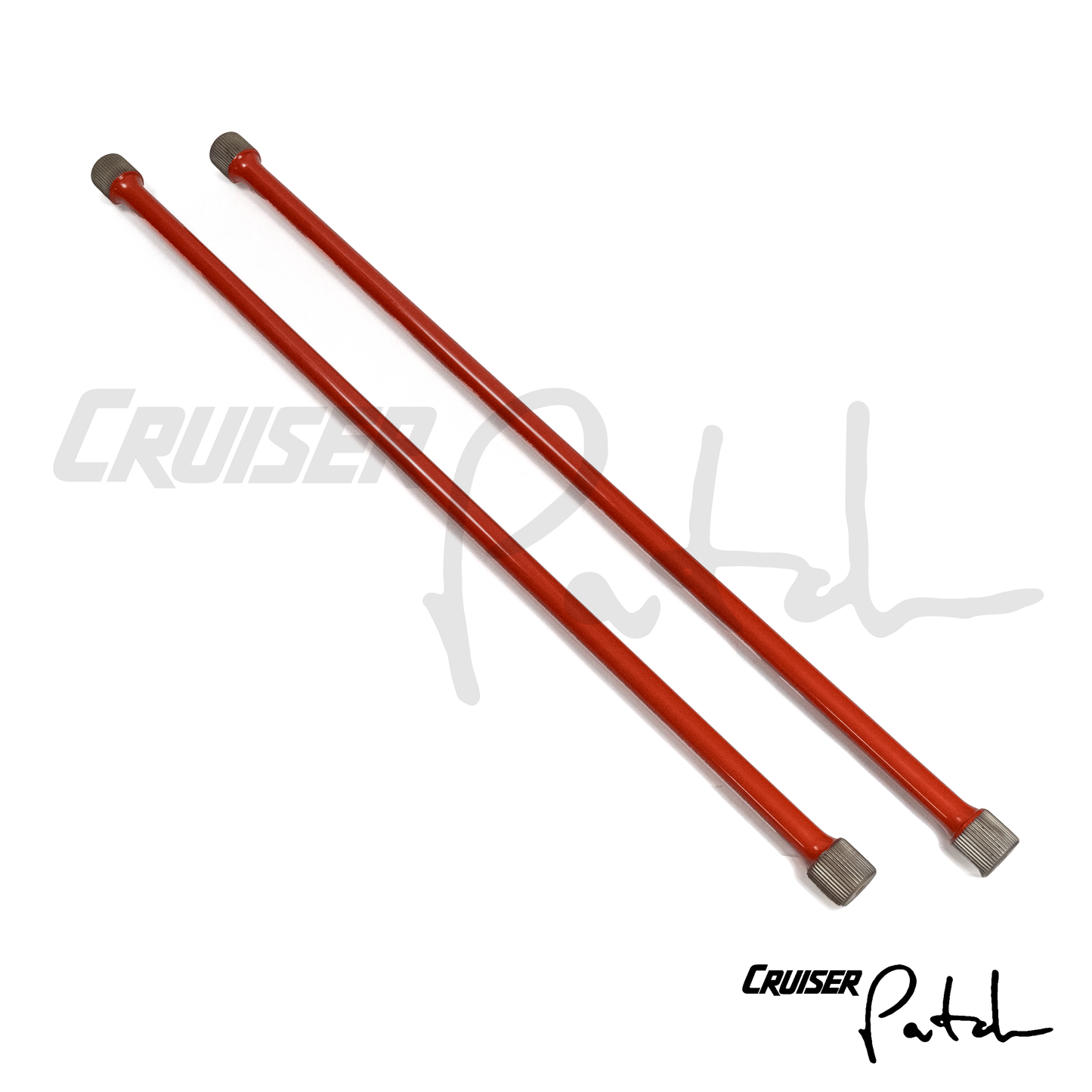

Cruiser Patch 100 Series Land Cruiser Torsion Bar set (1160mm length, 29.5mm diameter)

Batch #1 sold out

Batch #2 pre-orders now open

Watch this video for more information

Over time, OEM torsion bars wear out just like coil springs in a traditional suspension. Cruiser Patch is proud to present the first ever aftermarket O.E. spec+ torsion bar for the 100 Series Toyota Land Cruiser and Lexus LX470.

For maximum ride comfort and OEM performance, Cruiser Patch recommends our torsion bars be utilized in near-stock vehicles. As additional weight is added to a 100 Series on OEM or Cruiser Patch spec torsion bars, it is necessary to 'crank them up' or 're-index' the torsion bars to provide a taller ride height (lift).

NOTE: Vehicles using the Cruiser Patch or OEM torsion bars with significant additional weight or added pre-load (such as re-indexing) are recommended to also add Lower Control Arm reinforcement brackets to prevent damage to the LCAs.

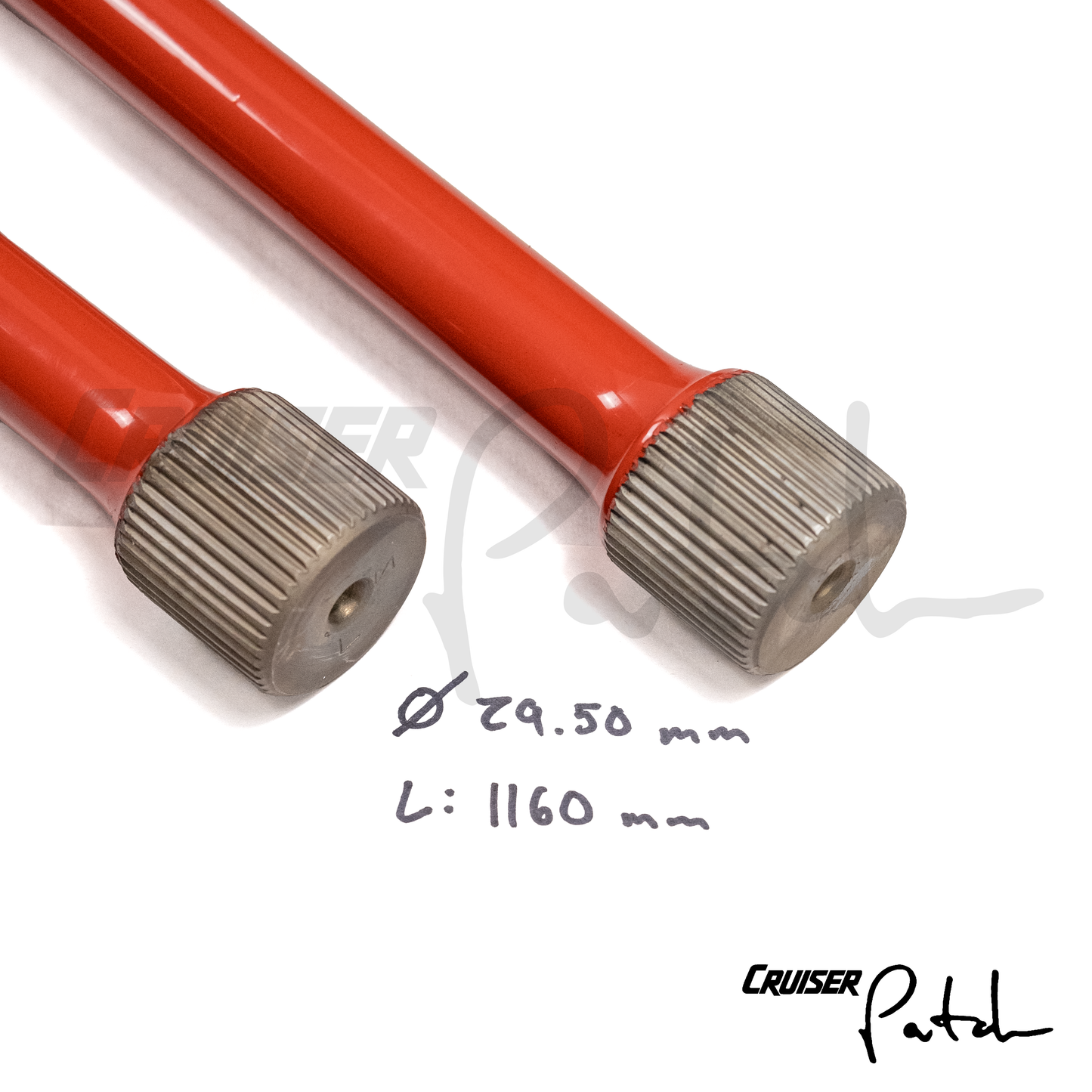

Cruiser Patch O.E. spec+ 29.50mm torsion bars measure 1160mm in length and are intended for use in petrol/gas powered US spec 100 Series Toyota Land Cruiser and Lexus LX470.

Specifications:

• Length: 1160mm
• Diameter: 29.5mm
• Spline count: 46
• Spline diameter: 47mm
• Material: solid aircraft-grade steel
• Finish: red powder coat

Includes:

• Cruiser Patch 29.50mm torsion bar set (1x): 1661-CP29.5K, solid aircraft-grade steel

OEM 1160mm long torsion bar part numbers:

• OEM Spring 28.87mm, Torsion Bar 1160mm, LH (1x): 48162-60030
• OEM Spring 28.87mm, Torsion Bar 1160mm, RH (1x): 48161-60030
• OEM Spring 25.4mm, Torsion Bar 1160mm, LH (1x): 48162-60040 (AHC equipped)
• OEM Spring 25.4mm, Torsion Bar 1160mm, RH (1x): 48161-60030 (AHC equipped)
• OEM Spring (dia. needed), Torsion Bar 1160mm, LH (1x): 48162-60060 (OE winch equipped)
• OEM Spring (dia. needed), Torsion Bar 1160mm, RH (1x): 48161-60060 (OE winch equipped)

Fitment details:

• 01.1998-08.2007 Toyota Land Cruiser (non-AHC)
• 01.1998-08.2007 Lexus LX470 (AHC deleted)

MADE IN USA
