OEM IFS 100 Series Toyota Land Cruiser LX470 CV Axle Reboot Kits

Sold individually (1x)

The 100 Series Toyota Land Cruiser and other IFS vehicles are prone to ripped, torn, or worn-out CV boots. With the CV inboard and outboard reboot kit, one can easily freshen up the boots and joints with new grease, pliable rubber, and OEM clamps.

When rebooting the outboard joint, one must remove the inboard boot. Therefore the outboard boot kit contains an inboard reboot kit.

See also: 100 Series Worm-Style CV Boot Clamps

CV axle reboot video

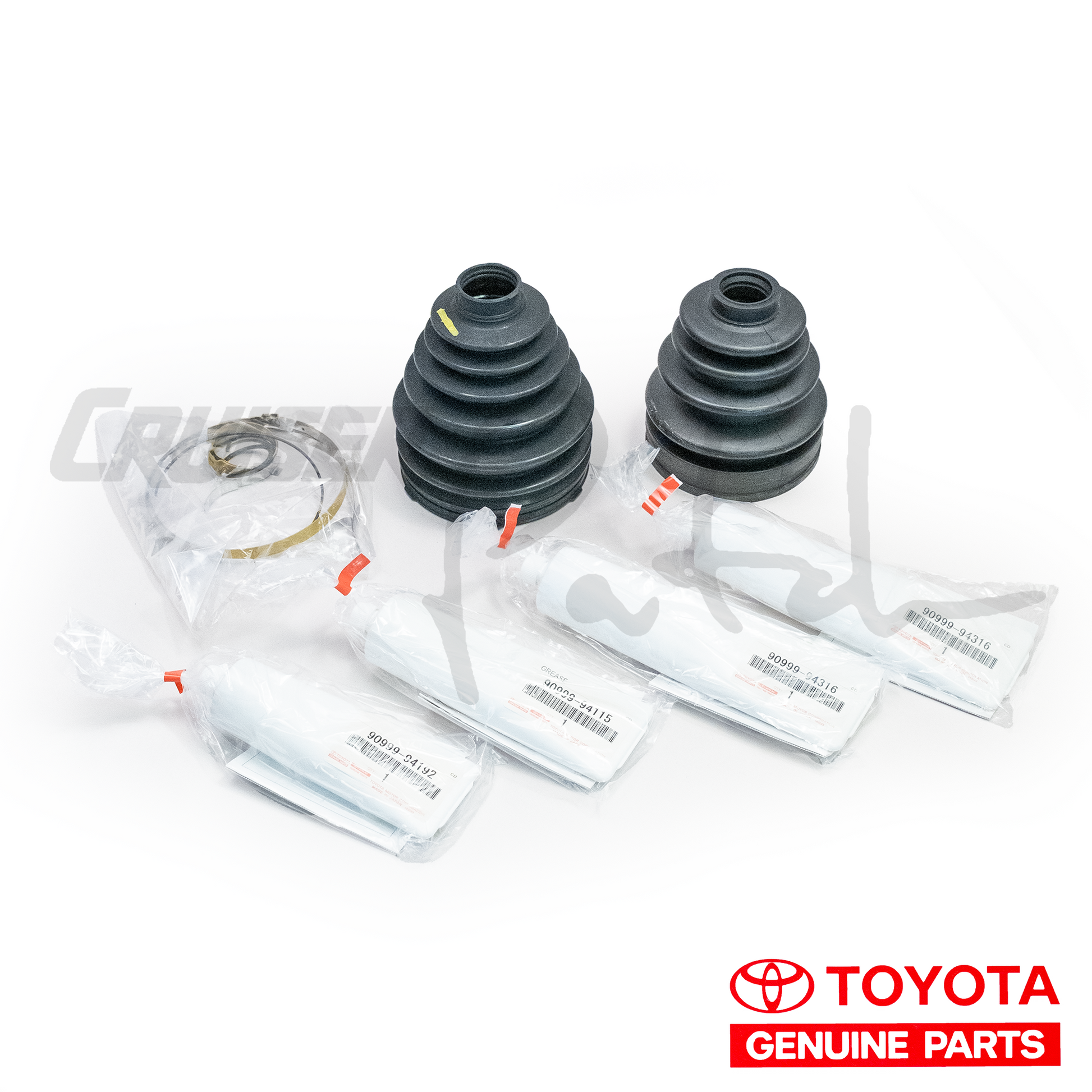

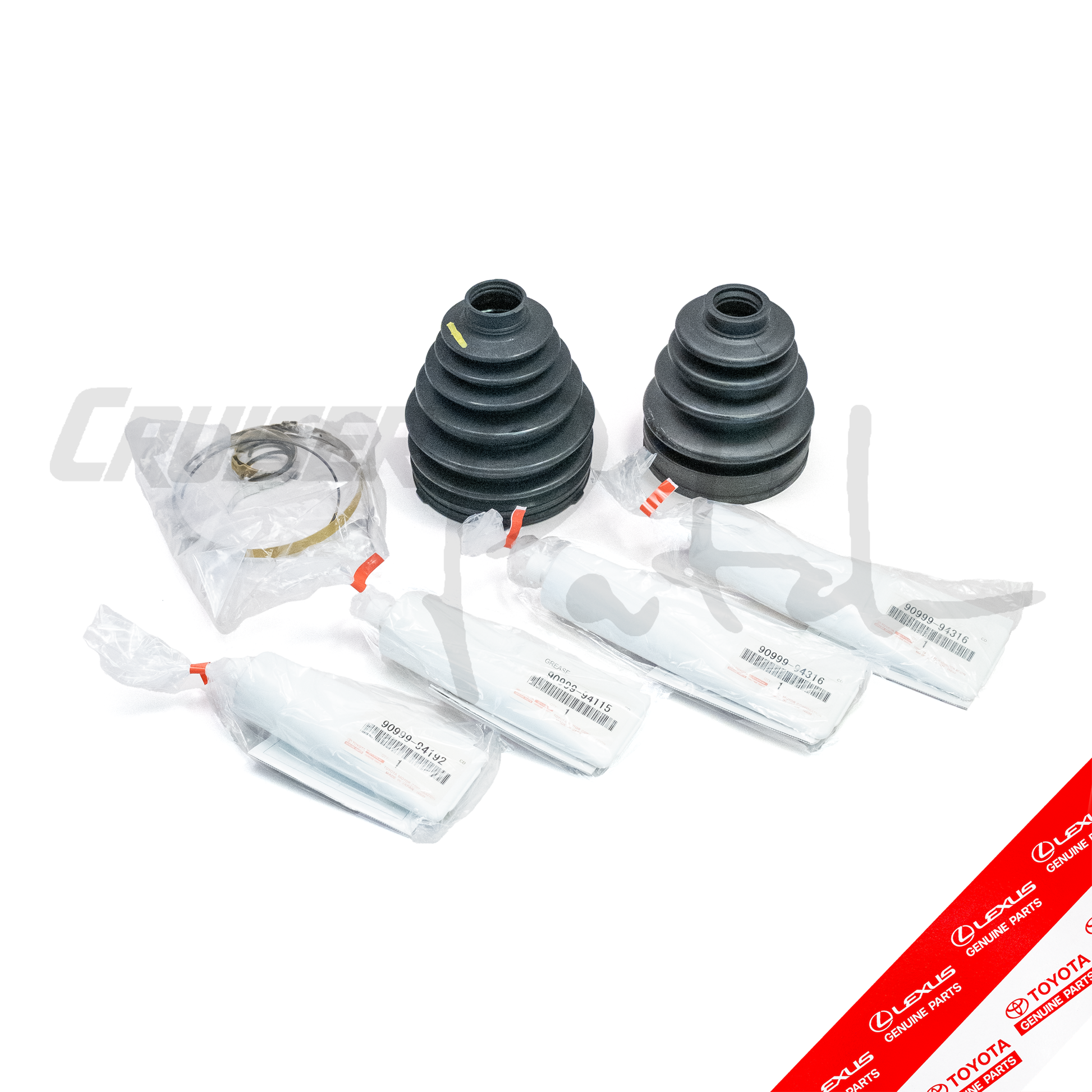

Inboard & Outboard Kit Includes: 04427-60121 (04427-60120, 04438-60021, 04438-60020)

• Inboard CV joint boot & clamps
• Outboard CV joint boot & clamps
• 150g of OEM grease for inboard CV joint (2x): 90999-94316 (300g total, (90999-94241)
• 110g of OEM grease for outboard CV joint (1x): 90999-94192 (90999-94242)
• 130g of OEM grease for outboard CV joint (1x): 90999-94115 (90999-94242)
• Inboard CV joint snap ring (1x)
• Inboard shaft snap ring for differential (1x)
• Outboard shaft snap ring (1x)

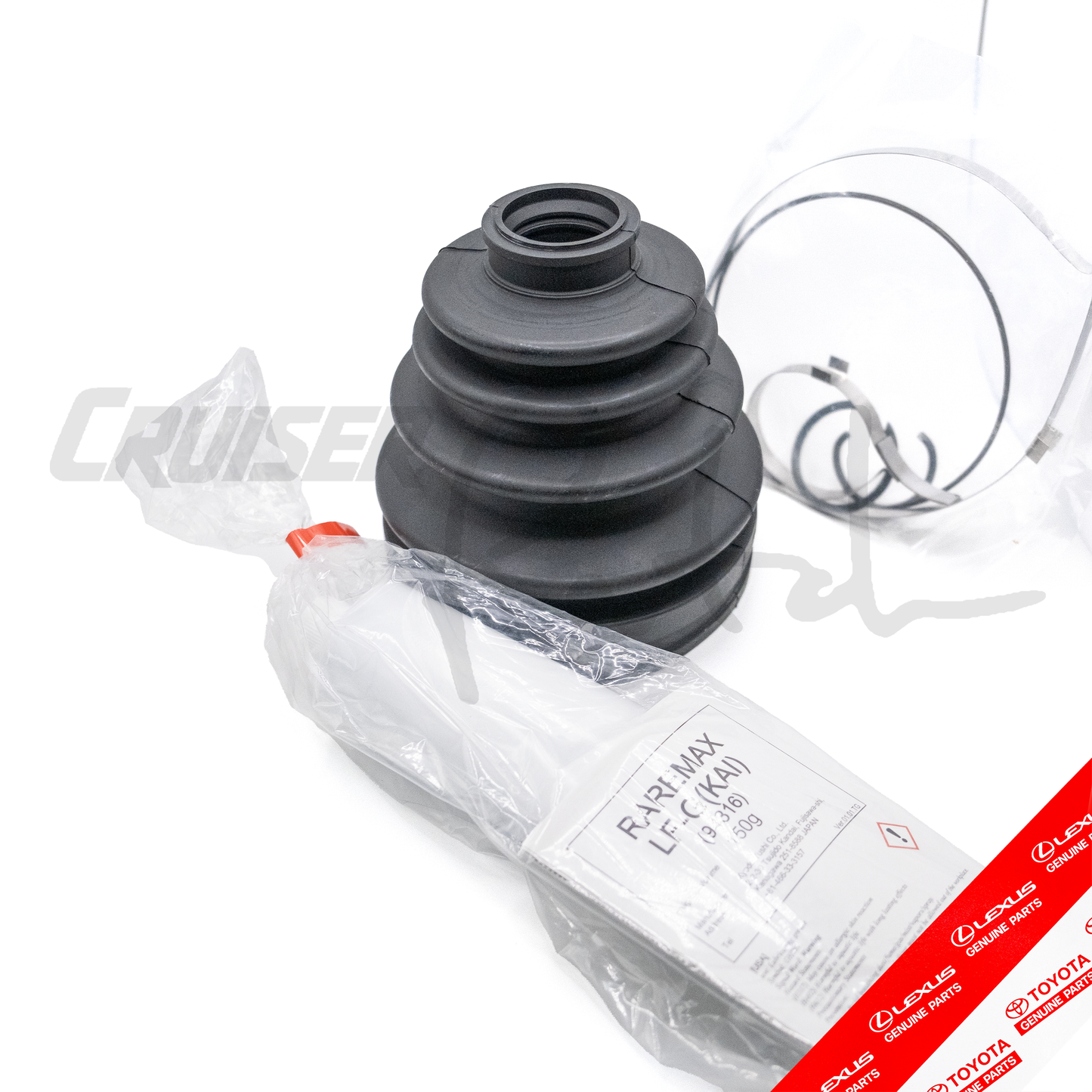

Inboard Kit Includes: 04437-60081 (04437-60080, 04438-60010)

• Inboard CV joint boot & clamps
• 150g of OEM grease for inboard CV joint (2x): 90999-94316 (300g total, 90999-94241)

Fitment details:

• 01.1998-08.2007 Toyota Land Cruiser (UZJ100, FZJ100, HDJ100, HDJ101)
• 01.1998-07.2007 Lexus LX470 (UZJ100)

MADE IN JAPAN
