100 Series Front Diff bushing installation tool
100 Series Front Diff bushing installation tool
19 in stock
SKU:SST-41651
Couldn't load pickup availability
Now twice as thick!
Replacing the front diff bushings in the 100 series Land Cruiser and LX470 requires either removal and replacement of the front diff cover assembly or a lot of air hammer work to fold the bushing out of the cover.

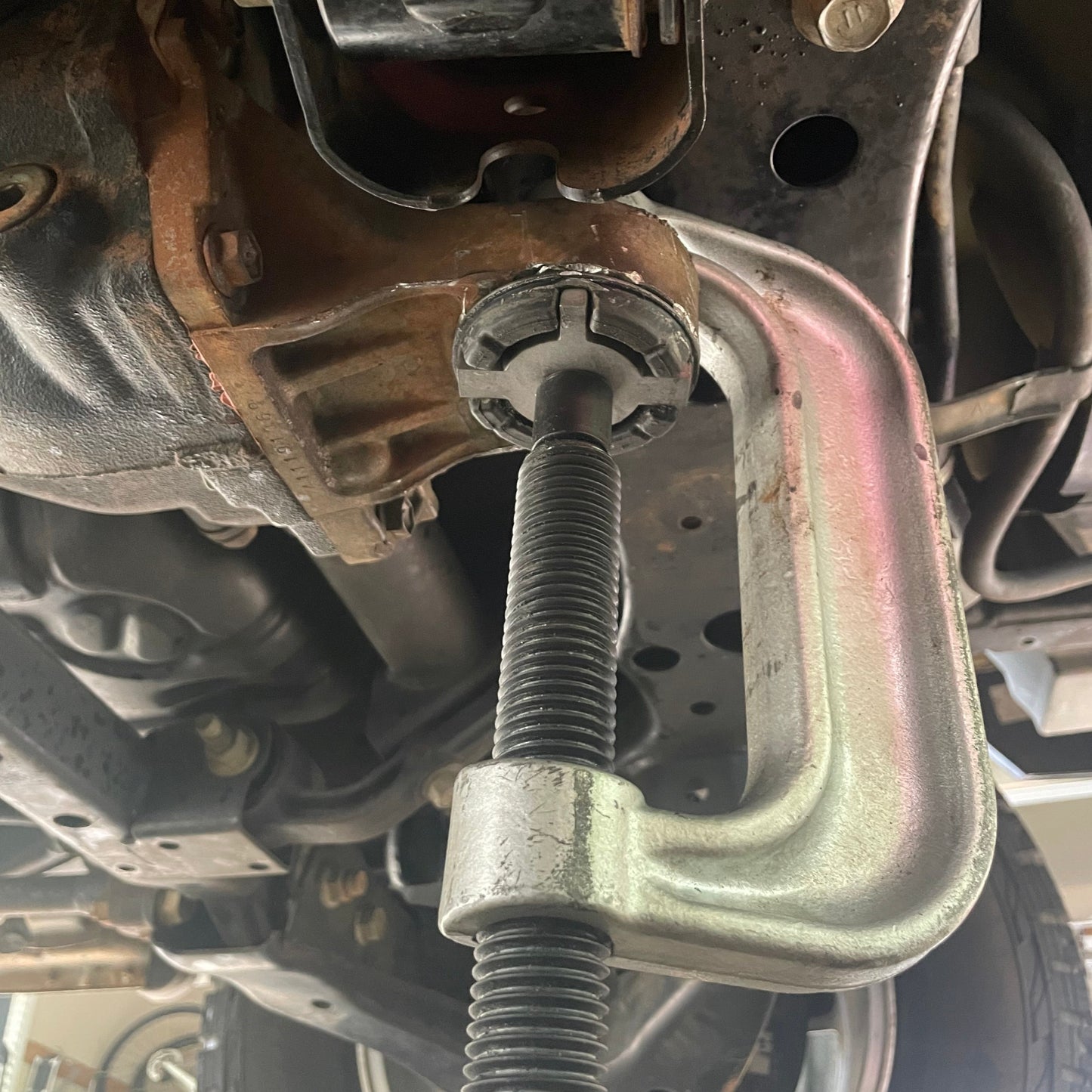

When installing the new OEM bushing 41651-60010 (not included) into the cover (41108-60011), one can easily press it in with a ball joint press kit and this tool. Make sure to cool the bushing in the freezer prior to installation for easiest press work.
Cut from .375" 304 stainless steel and tumbled for a refined surface finish, these tools are sure to last and built to be used time and again if necessary. A bolt or threaded rod can be used through the 9/16" central hole as an alternative to renting a ball joint press tool kit.
Designed to fit: 100 Series Front Differential Bushing Kit
- Cruiser Patch front differential bushing install tool
Tool video on YouTube
MADE IN USA
Share
Excellent tool. I used it to install a bushing without a u-joint press (huge C-clamp) using the bolt that holds the bushing. Cruiser Patch has been supporting TLCA which pleases me.
100 Series Front Diff bushing installation tool
Cruiser Patch is becoming my new go to guy for 100 series landcruiser upgrades and repairs
Did everything it was intended to do. Perfect fit and finish.
I love stuff and things that really work.
