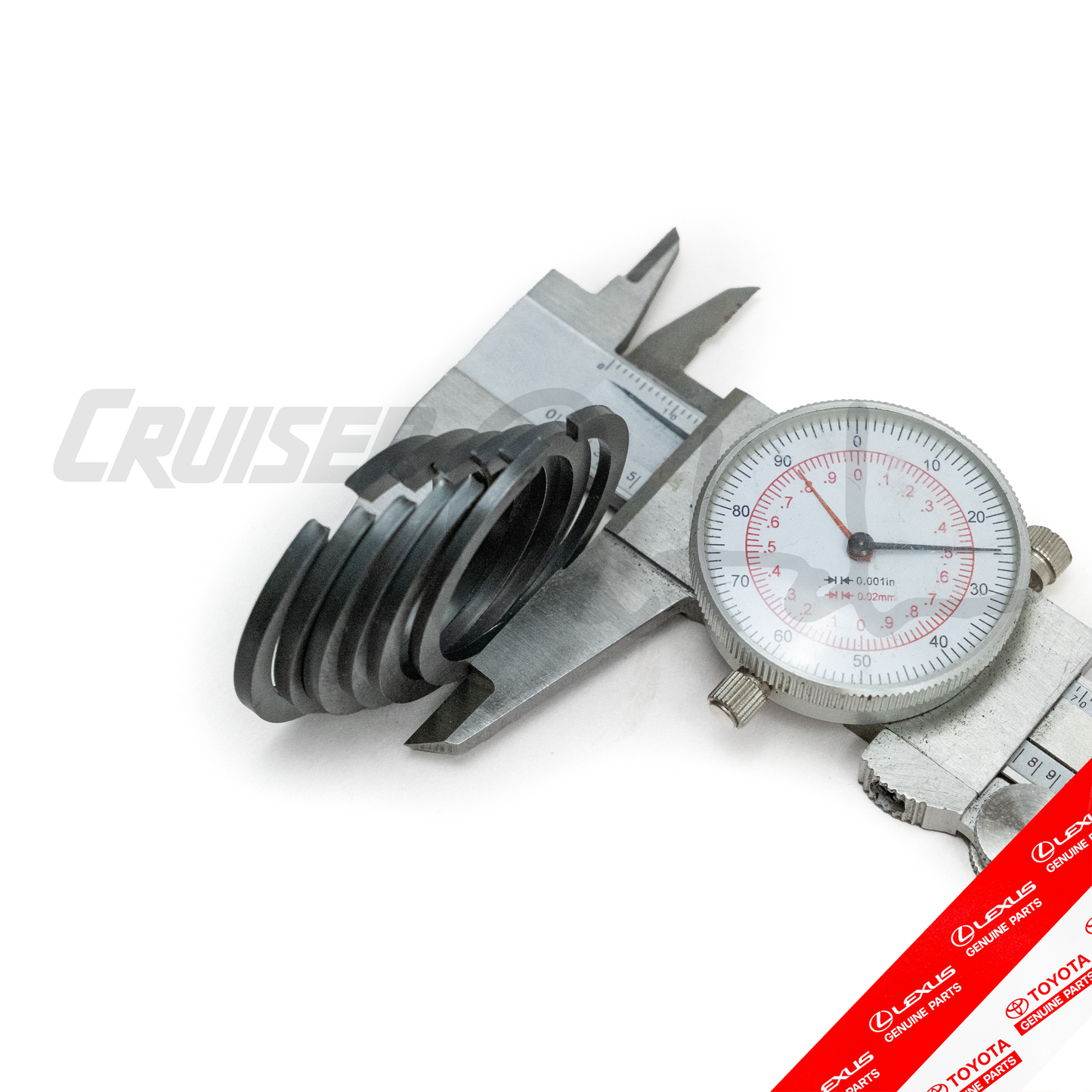

OEM 70/80/100/105 Series CV Axle Shaft Snap Ring kit (For Hub)

OEM replacement snap rings for the CV axles in the independent front suspension 4WD 100 Series Toyota Land Cruiser and Lexus LX470. Also fits 70 Series and 80 Series applications.

These snap rings come in thicknesses varying from 1.8mm to 2.8mm

Patch's personal favorite snap ring pliers

Includes six (6) OEM snap rings:

• OEM snap ring (1x): 90520-31005 (size B = 2.8mm)
• OEM snap ring (1x): 90520-31006 (size C = 2.6mm)
• OEM snap ring (1x): 90520-31007 (size D = 2.4mm)
• OEM snap ring (1x): 90520-31008 (size E = 2.2mm)
• OEM snap ring (1x): 90520-31009 (size F = 2.0mm)
• OEM snap ring (1x): 90520-31010 (size G = 1.8mm)

Fitment details:

• 01.1998-08.2007 Toyota Land Cruiser (UZJ100, FZJ100, HDJ100, HDJ101, FZJ105, HZJ105)
• 01.1998-07.2007 Lexus LX470 (UZJ100)
• 01.1990-11.2006 Toyota Land Cruiser (FZJ80, HDJ80, HZJ80, HZJ81)
• 01.1990+ Toyota Land Cruiser (HZJ70, KZJ71, GRJ76, GRJ79,  FZJ70, HDJ78, HDJ79, LJ72, RJ70, VDJ76...

MADE IN JAPAN
