OEM 100 Series Toyota Land Cruiser LX470 Fusible Link Assembly Kit

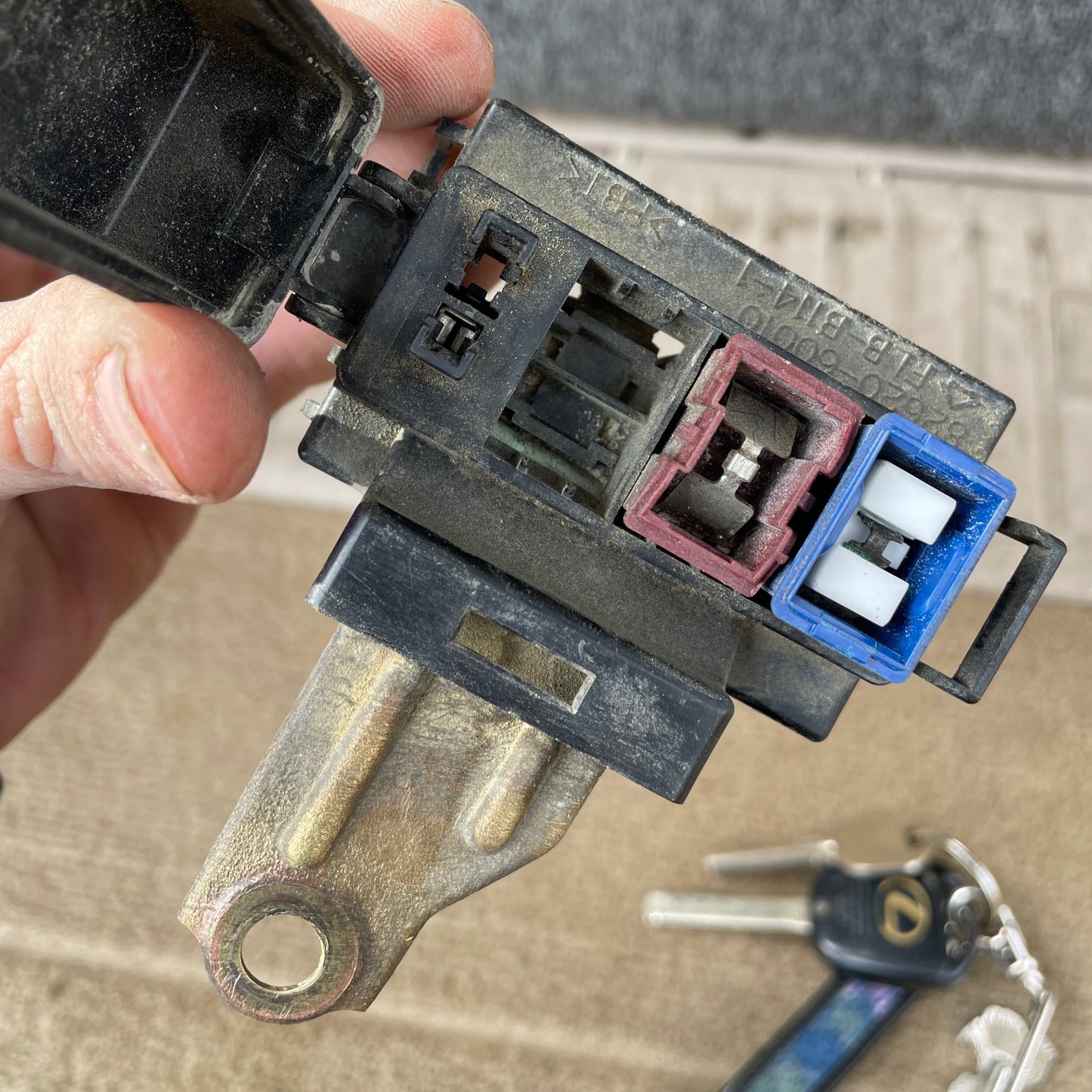

Corroded battery terminals and old age increase resistance across charging circuit in the 100 Series Toyota Land Cruiser (LX470) fusible link assembly. Occasionally this creates 'overcharging' symptoms (16V+) which may damage the vehicle's battery.

Symptoms include an illuminated battery light and high output voltage from the alternator. This problem is frequently misdiagnosed as a failing or failed voltage regulator (found on the back of the alternator).

ih8mud thread

Kit includes:

• OEM Block assembly, fusible link (1x): 82620-60010
• OEM Block assembly, fusible link cover (1x): 82621-60010 (not pictured, delisted)
• OEM 100A fusible link, blue (1x): 90982-08246
• OEM 140A fusibile link, maroon (1x): 90982-08286
• OEM 7.5A "ALT-S" mini fuse, red (1x): 90982-09008 (90080-82020)
• OEM bolt with washer (6x): 91651-40610 (90080-11224)

Fitment details:

• 01.1998-08.2007 Toyota Land Cruiser (UZJ100, HDJ100, FZJ100, HDJ101, FZJ105, HZJ105)
• 01.1998-07.2002 Lexus LX470 (UZJ100)
• If you're unsure of vehicle fitment, please email us with your VIN ready for confirmation.

*If using an AGM battery, replace the "ALT-S" fuse with this diode to increase voltage output: (https://www.cruiserpatch.com/products/agm-battery-voltage-boost-regulator-gm-12135037)

MADE IN JAPAN
