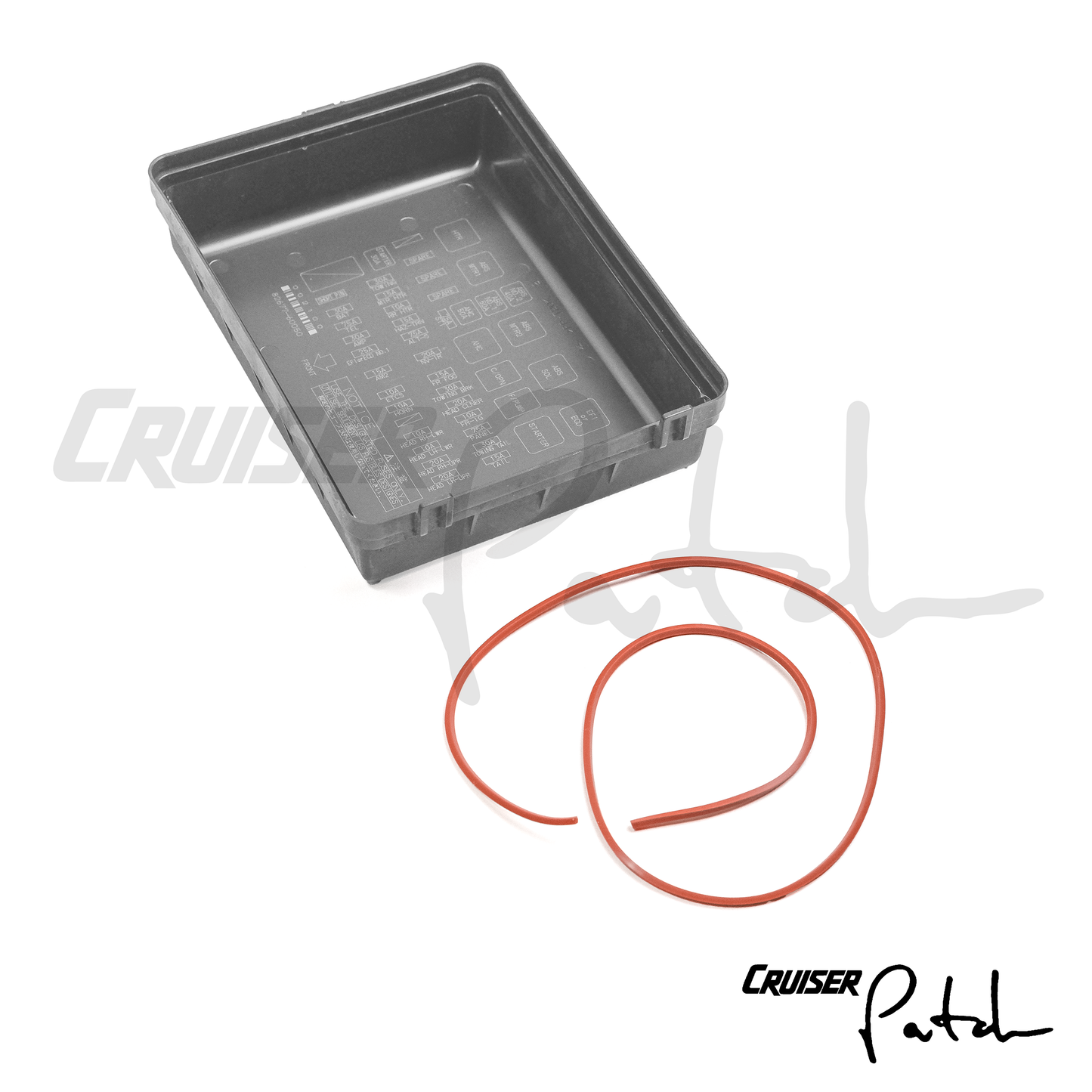

OEM+ 100 Series Toyota Land Cruiser & Lexus LX470 Fuse Box Lid Gasket Kits

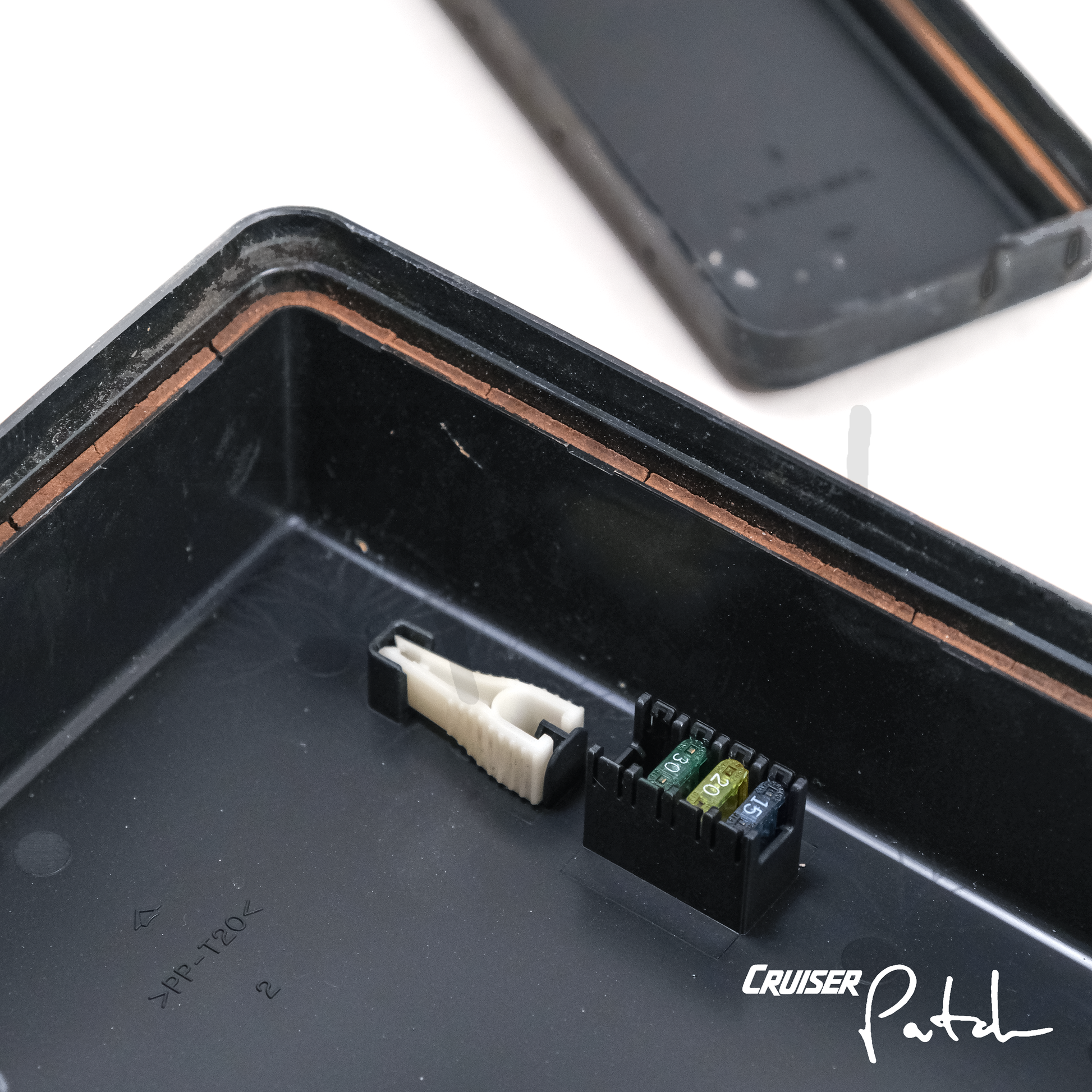

The fuse box lids on the 100 Series Toyota Land Cruiser and Lexus LX470 are equipped with thin gaskets around the diameter which after 20+ years of service are in dire need of replacement.

Weather-proofing the electrical systems of older vehicles ensures lasting use and prevents many issues for which 100 Series Land Cruisers are notorious. The junction block cover gaskets are not sold separately from Toyota (No. 2 and No. 3 on the early US spec 100 Series, No. 2 only on 2003+ models in the US).

This silicone rubber gasket material will outlast even the factory rubber gasket with an operating temperature range of -60° to 400°F.

Installation tips:

• Use a pick tool or flat head screwdriver to remove the old gasket material

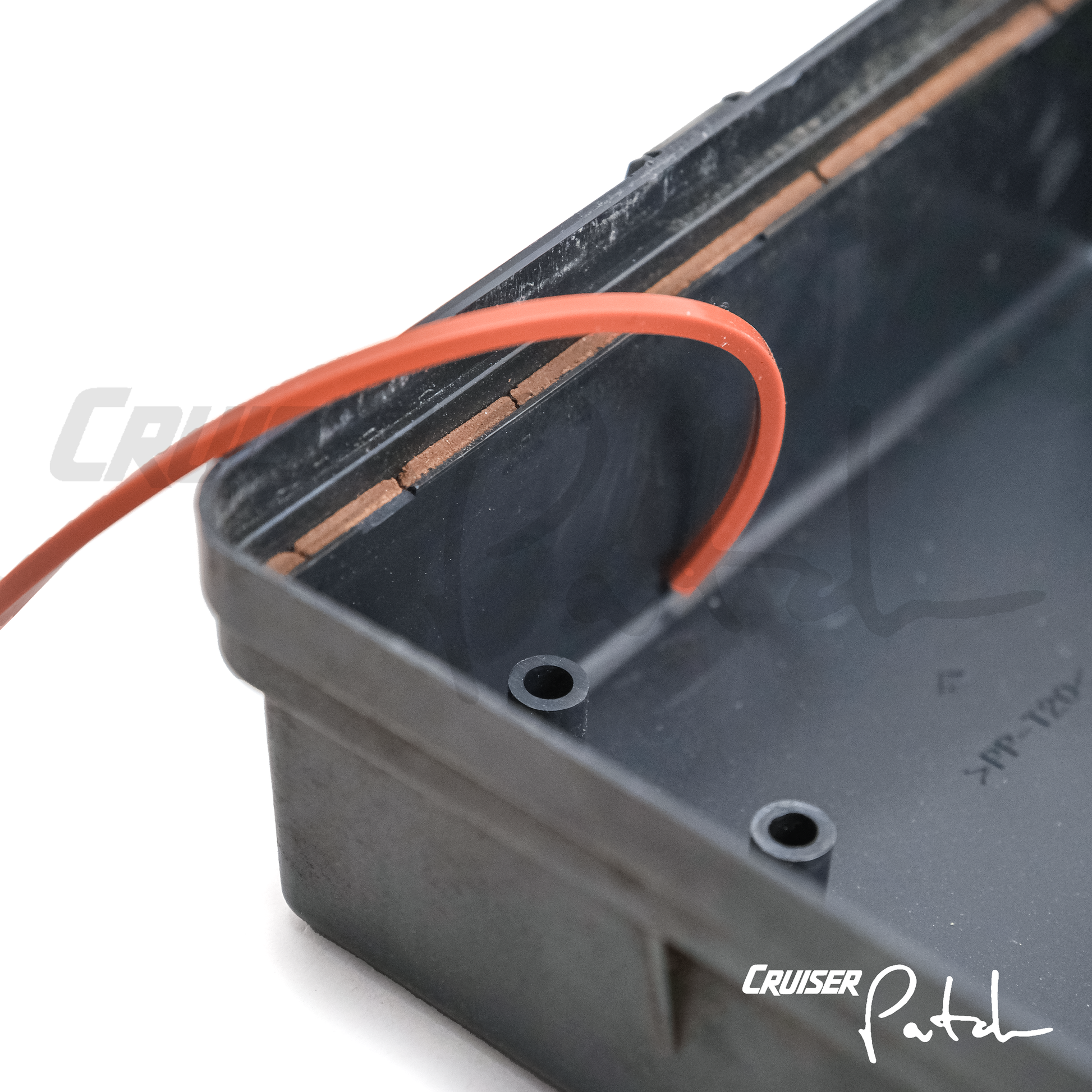

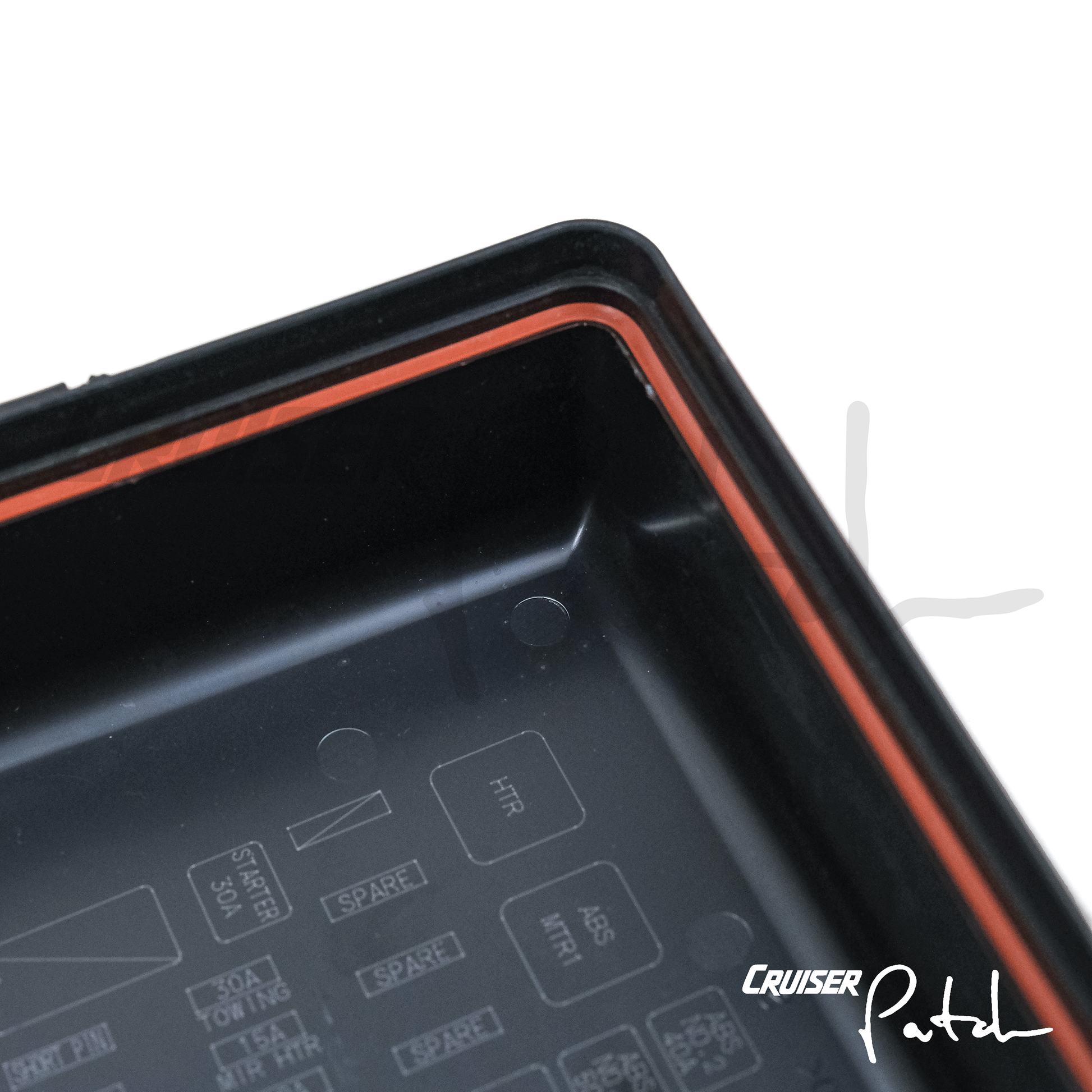

• Starting at one corner of the fuse box lid, work around CW or CCW pushing the new gasket into place with the blunt end of a small tool (e.g. allen key)
• Be careful not to fold or tear the new gasket during installation
• If desired, one can melt the two ends of the gasket with a soldering iron to form one complete piece

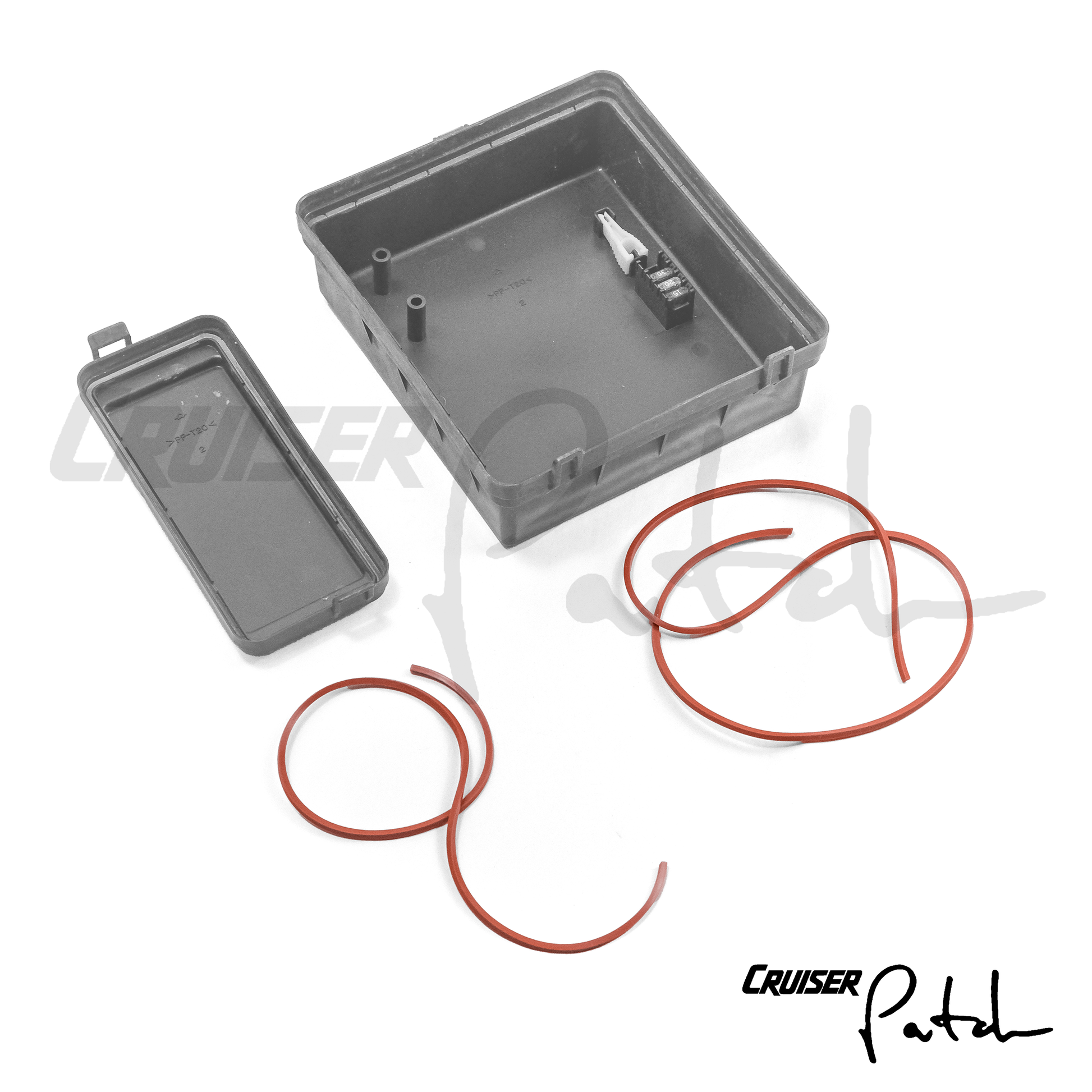

01.1998-08.2002 kit includes: (two fuse box lids)

• Silicone rubber 3/32" square high-temp cord stock 25" (1x): No. 2 cover, junction block, upper (82677-60021, 82677-60020)
• Silicone rubber 3/32" square high-temp cord stock 17.5" (1x): No. 3 cover, junction block, upper (82678-60010)

08.2002-08.2007 kit includes: (single fuse box lid)

• Silicone rubber 3/32" square high-temp cord stock 25" (1x): No. 2 cover, junction block, upper (82677-60040)

NOTE: fuse box lid(s) not included

Fitment details:

• 01.1998-08.2007 Toyota Land Cruiser (UZJ100, FZJ100, HDJ100, HDJ101, FZJ105, HZJ105)
• 01.1998-07.2007 Lexus LX470 (UZJ100)

MADE IN CHINA
