AGM Battery Voltage Boost Regulator for Toyota Land Cruiser & Lexus LX (GM 12135037)
AGM Battery Voltage Boost Regulator for Toyota Land Cruiser & Lexus LX (GM 12135037)
Out of stock
Next shipment: expected Feb 05, 2026
SKU:12135037
Couldn't load pickup availability
*Expect 1-2 week lead time when out of stock

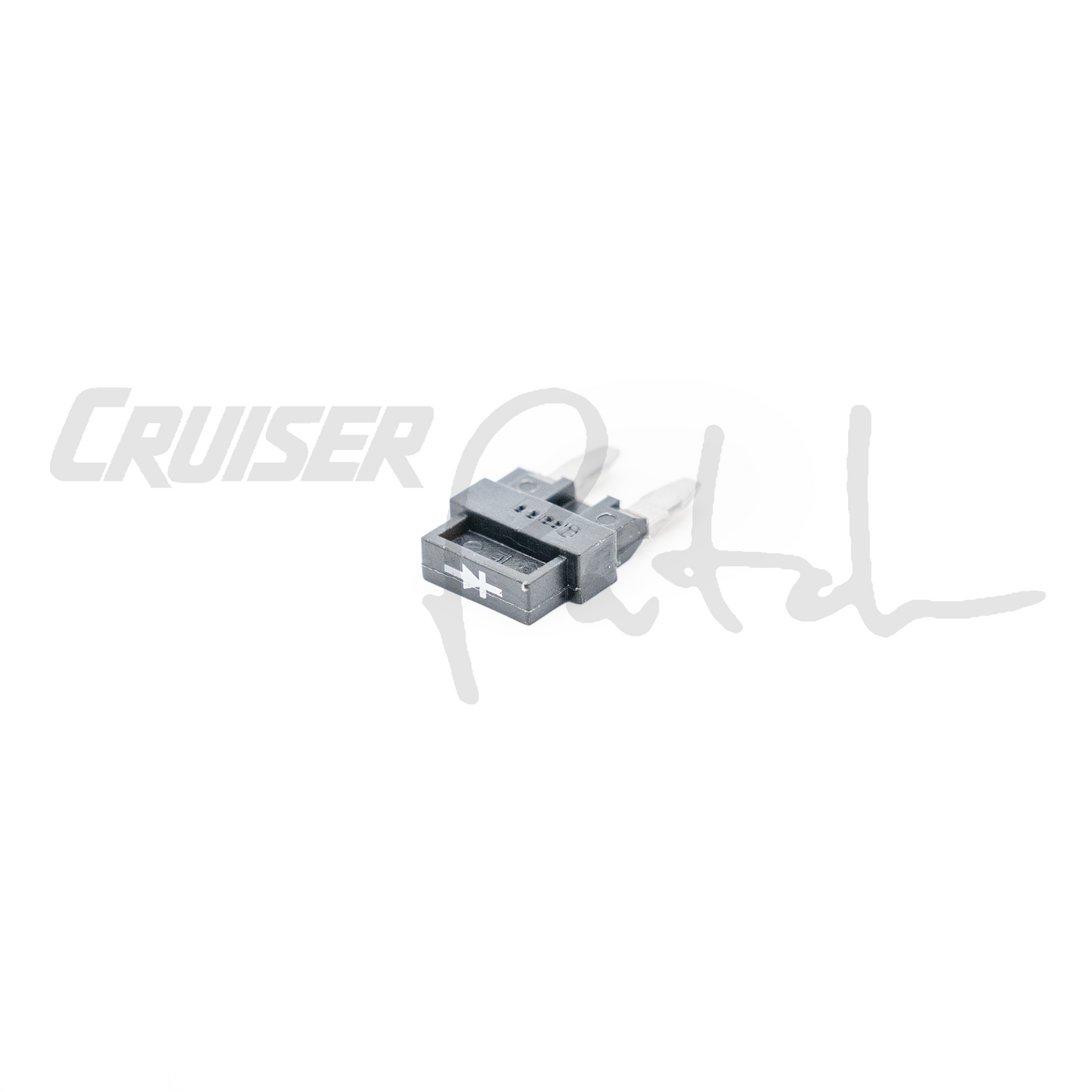

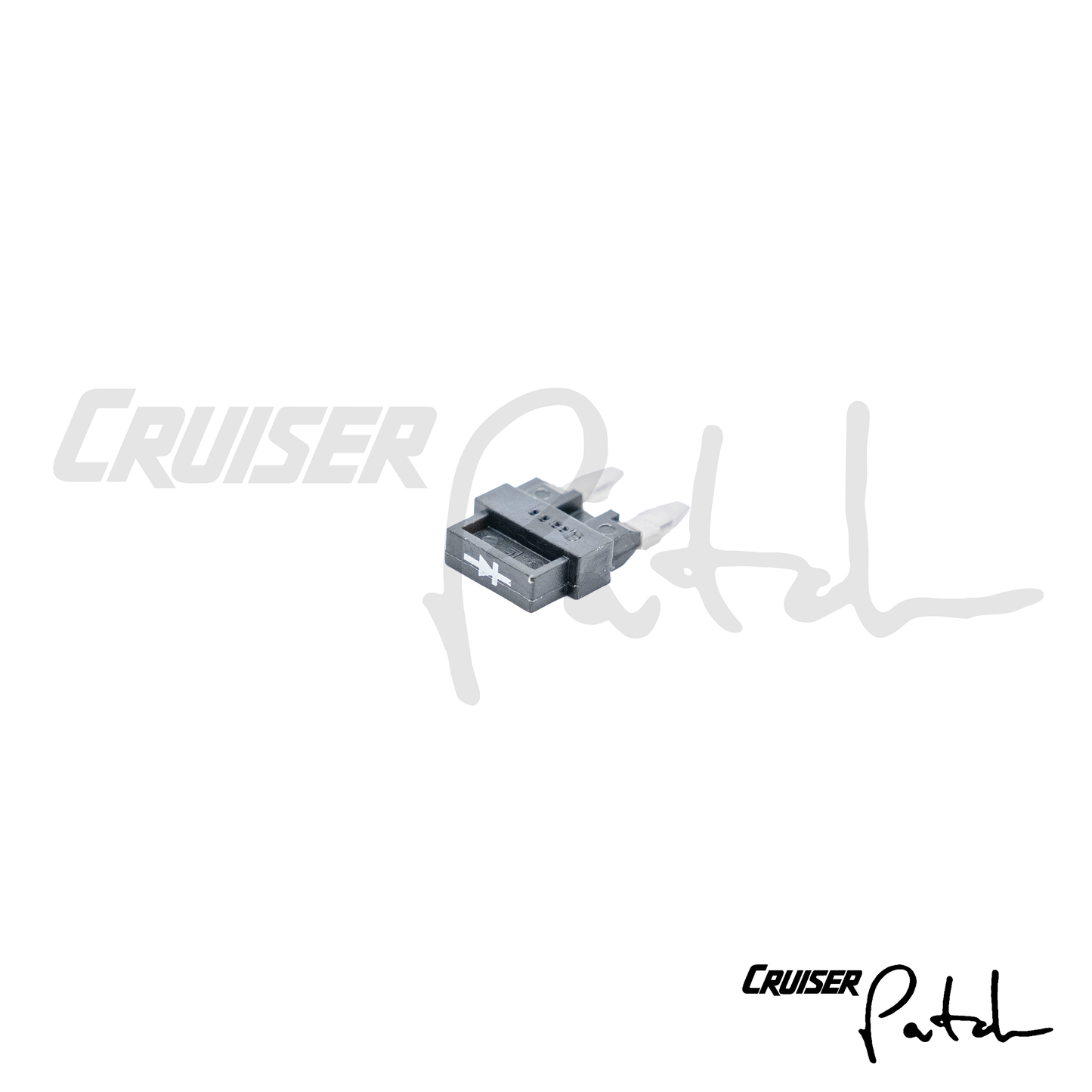

Adding a voltage booster is a necessary upgrade for anyone running an AGM battery in their vehicle. Cruiser Patch uses this GM diode to increase alternator voltage output at idle and under load from 13V to 14.6-15V.

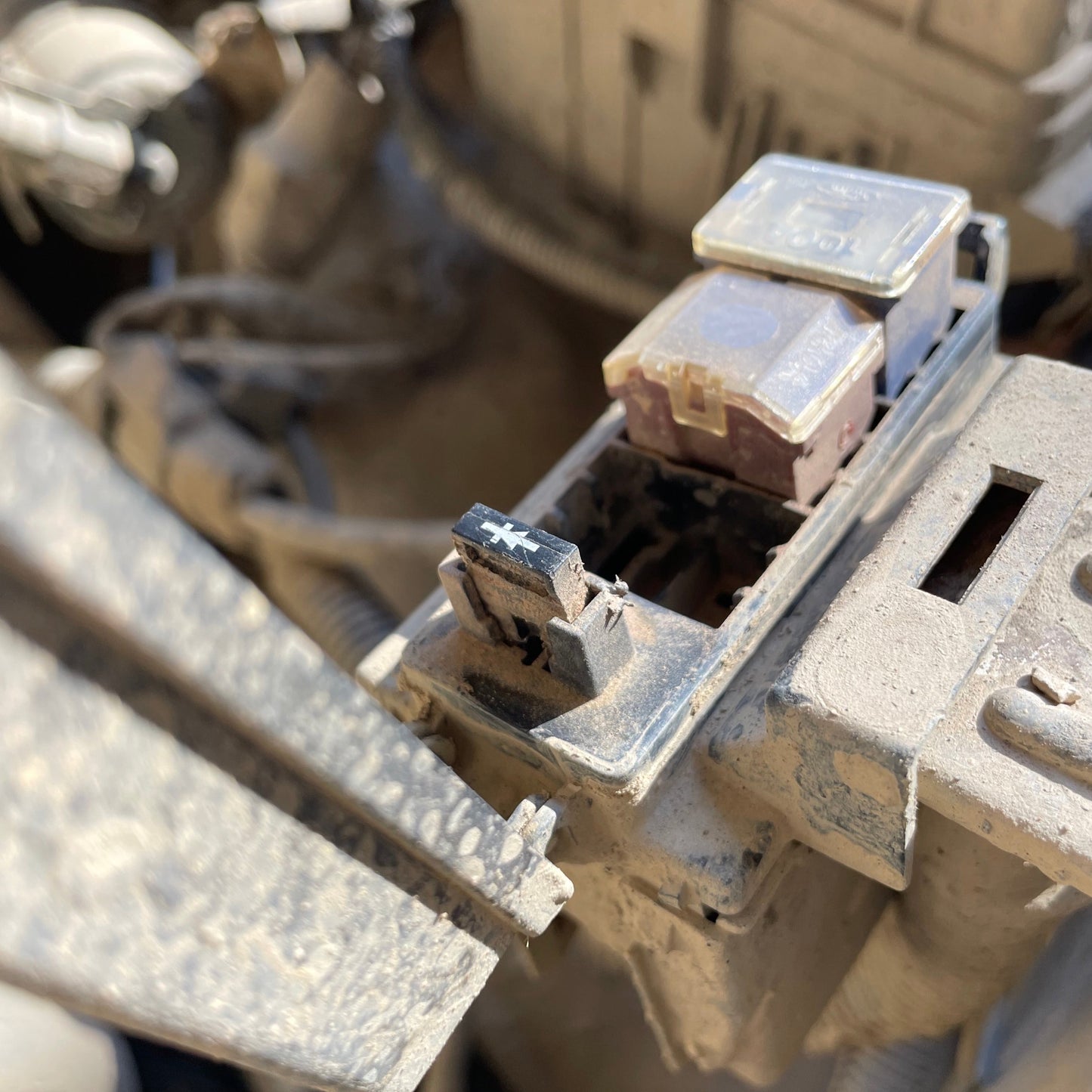

See photos for proper orientation of diode into 1998-2002 Toyota Land Cruiser and Lexus LX470 and 2003-2007 Toyota Land Cruiser and Lexus LX470 (will fit other vehicles with AGM battery). Improper diode orientation will trigger the battery light- in this case, simply reverse the diode.
Includes:
- GM 12135037
*NOTE: some light filing/edging is required to fit the diode into a mini fuse slot
Fitment details:

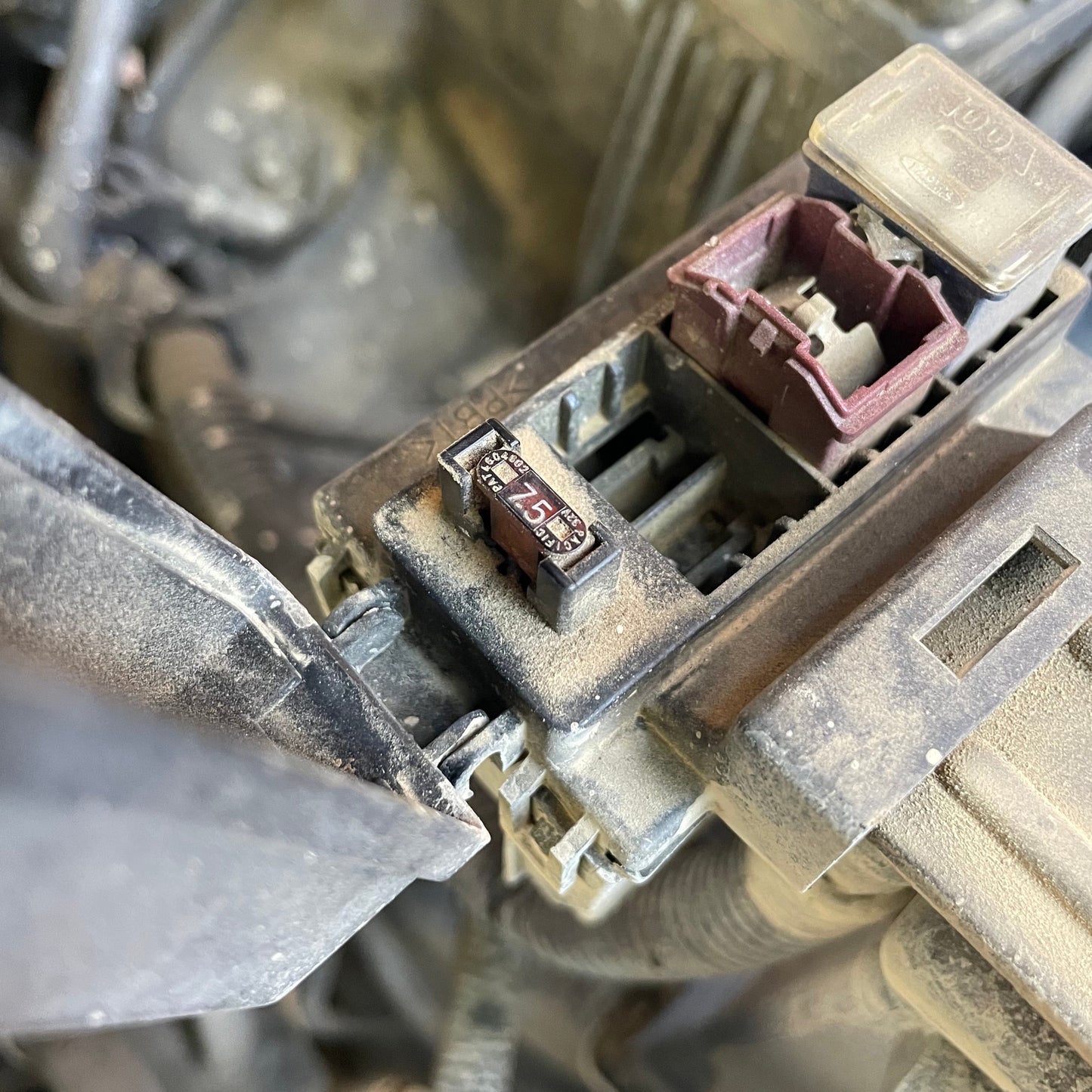

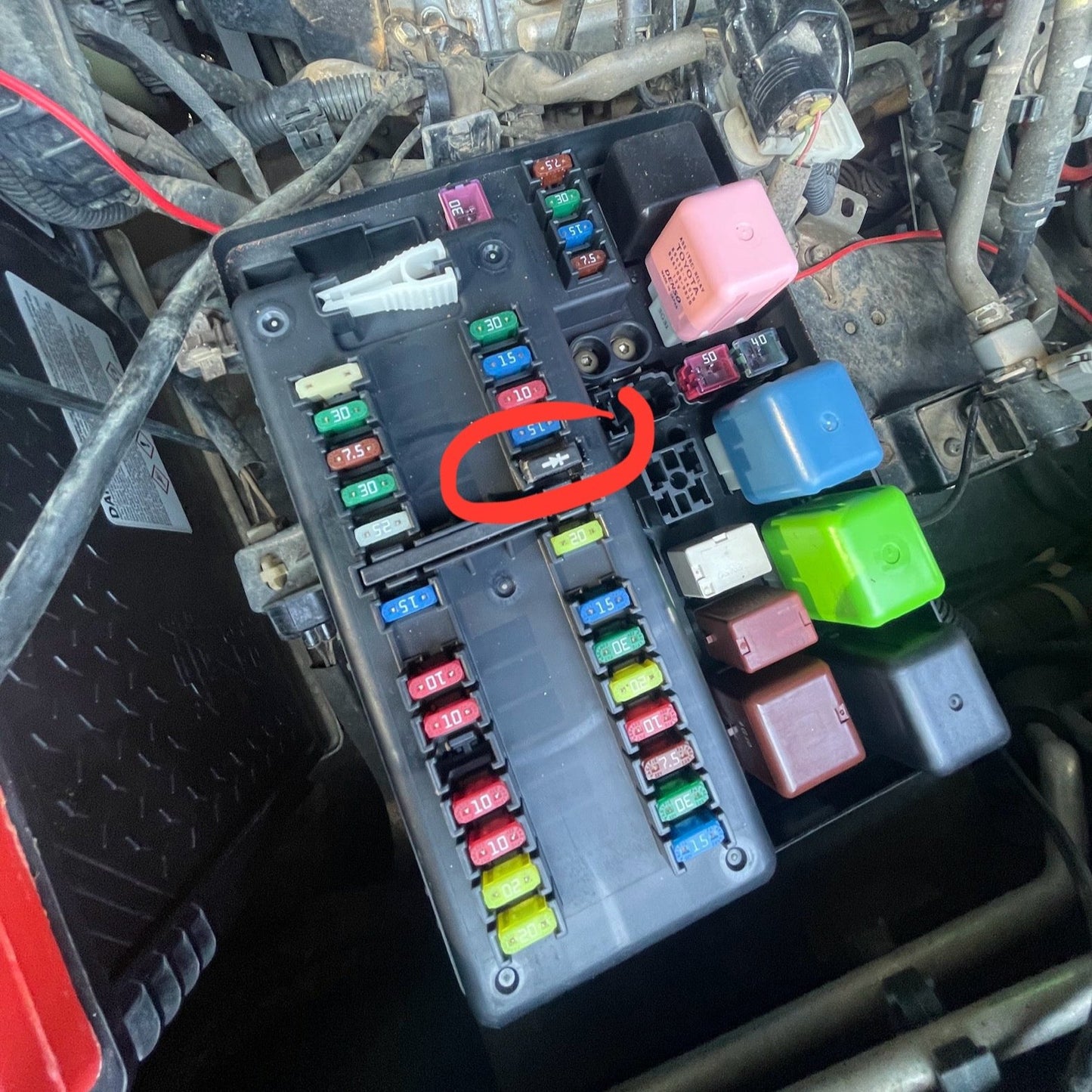

- 100 Series Toyota Land Cruiser & Lexus LX470: replaces “ALT-S” 7.5A fuse (98-02 located on positive terminal fusible link, 03-07 located in engine bay fuse box)
- 80 Series Toyota Land Cruiser & Lexus LX450: replaces “CHARGE” 7.5A fuse (located in engine bay fuse box)
Share
Cruiser Patch is Excellent Vendor !!! The AGM Battery Voltage Boost Regulator is also excellent !!! A pleasure to deal w/Cruiser Patch. Installation tips from Cruiser Patch also excellent.

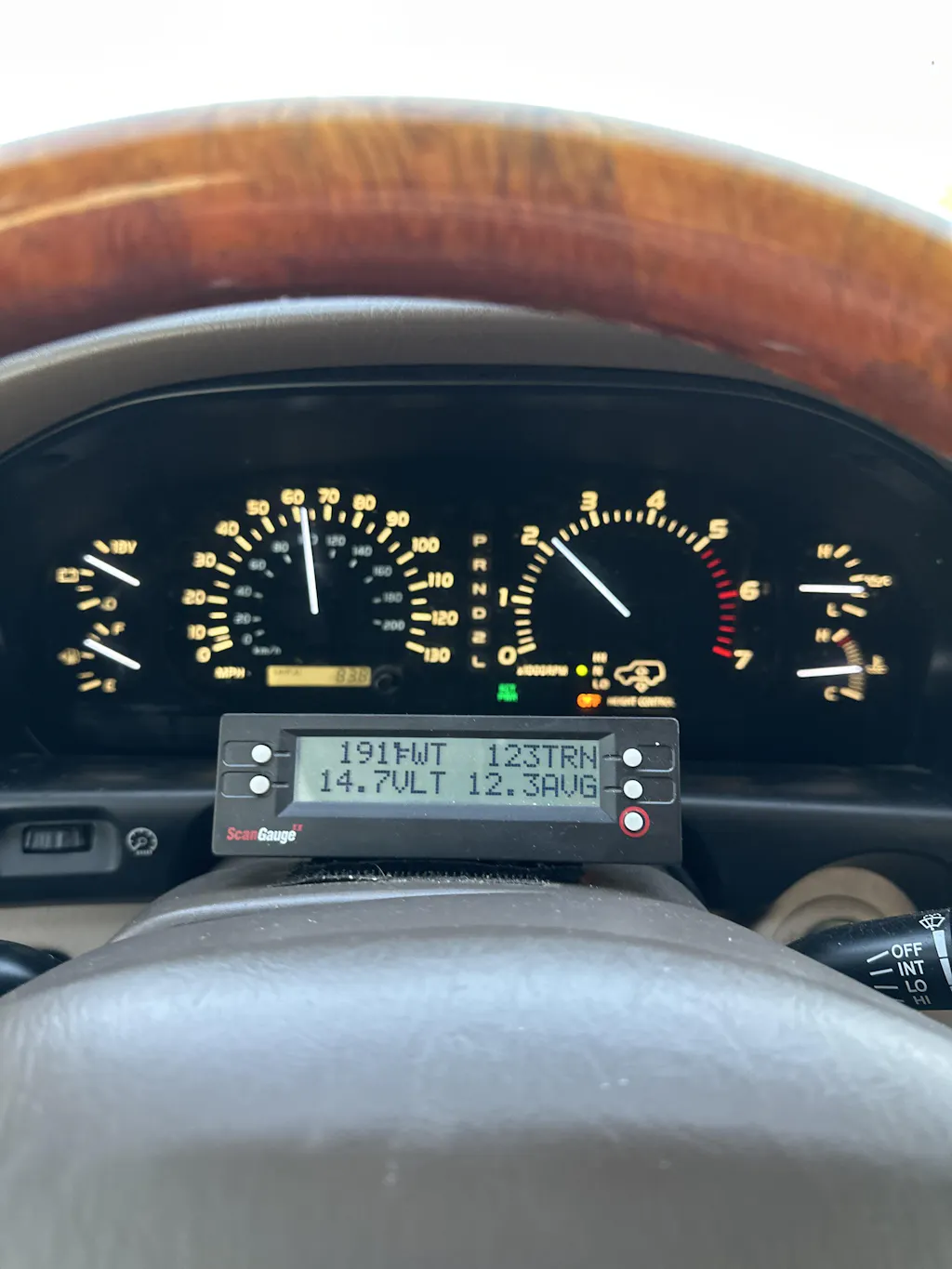

Thanks for the quick shipping Patch. This little diode has me charging at 14.7 volts no problem. Let’s see how many years I can get out of this AGM battery!
Loa felicito
El voltaje del auto está en 14.3 y 14.2
AGM Battery Voltage Boost Regulator (GM 12135037)
I initially had no idea that AGM batteries required a different type of charge cycle. That’s exactly why ppl struggle with AGM batteries. Installing this fuse was the easiest thing I’ve done on my LX470. Now I’m constantly running 14.7V to the battery.
