AISIN 2UZ-FE Timing Belt and Water Pump kit with hydraulic tensioner

AISIN produces many OE parts for Toyota including transmissions, water pumps, oil pumps, and more. The 2UZ-FE timing belt kit from AISIN includes all the essential parts for the job during replacement.

Hints and tips:

• When installing the No. 1 tensioner pulley, always coat the threads with 242 loctite or equivalent to prevent oil leaks. Also remember to install 90201-10101 (washer plate) behind the tensioner pulley for correct spacing.
• Check that the timing marks are aligned before removing the tensioner pin by rotating the engine one full revolution using the crank bolt (181 ft-lbs).
• Use soapy water or spare antifreeze to lubricate cooling system seals and gaskets before installation.
• Lubricate the cam & crank seals with MP grease or engine oil before installation.

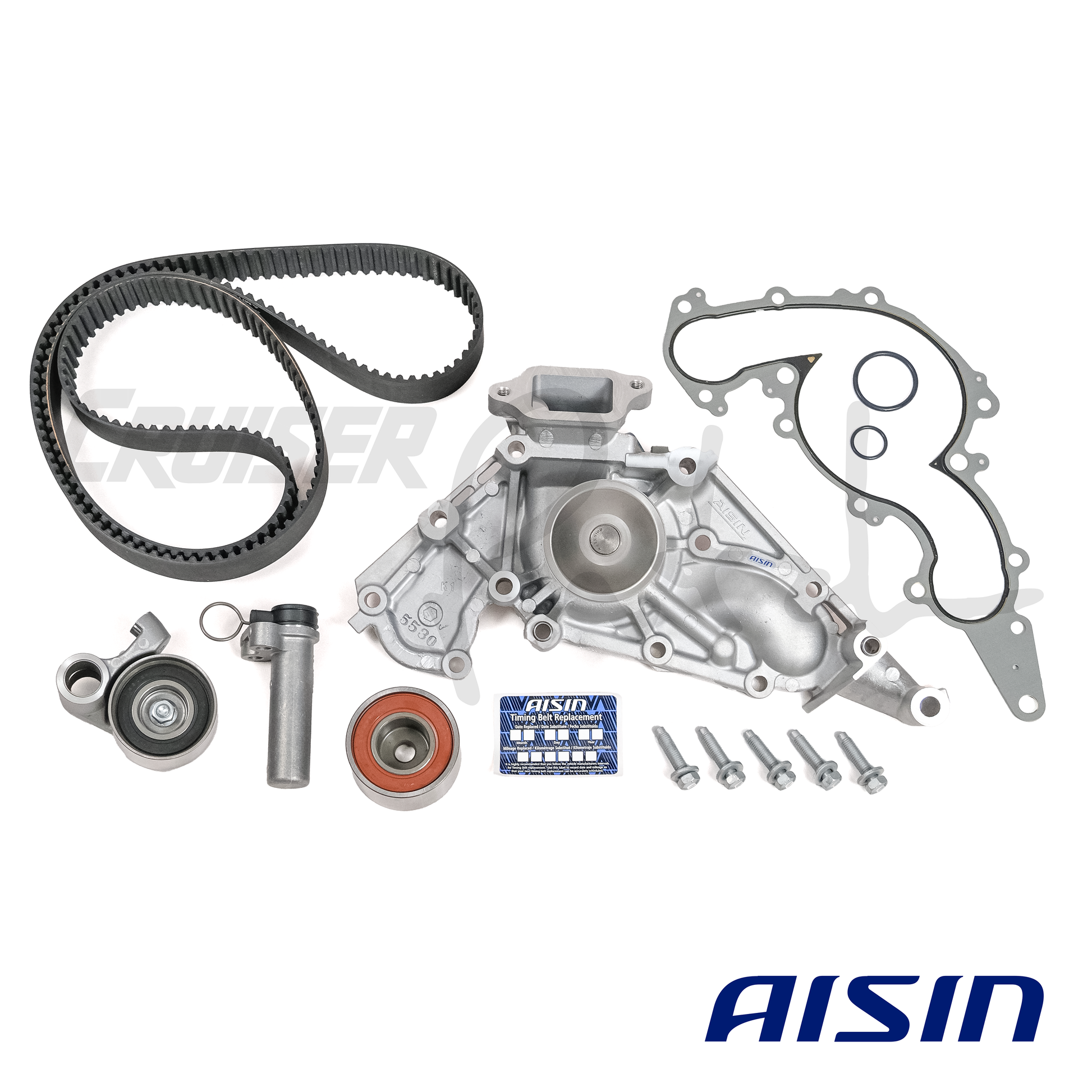

TKT-021 TB & WP kit includes:

• MITSUBOSHI timing belt* (1x): 13568-59095 (MITSUBOSHI 211S8M34H)
• AISIN timing belt sticker (1x):
• JTEKT/KOYO idler puller sub-assy No. 2 (1x): 13503-50011 (KOYO PU306630ARR9D)
• JTEKT/KOYO tensioner pulley sub-assy No.1 (1x): 13505-50030 (NSK 62TB0630B03)
• NTN tensioner assy, No. 1 (1x): 13540-50030 (13540-50011)

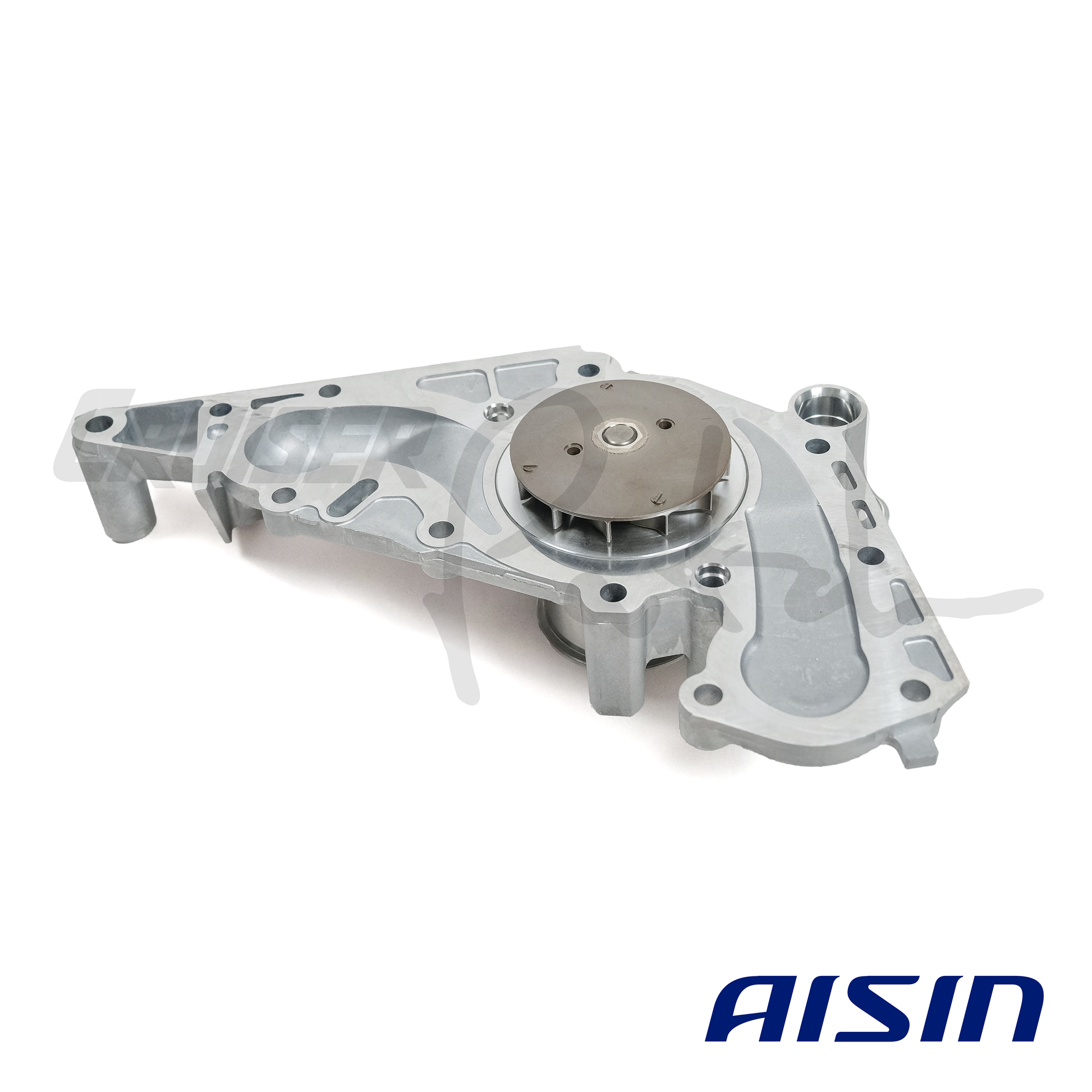

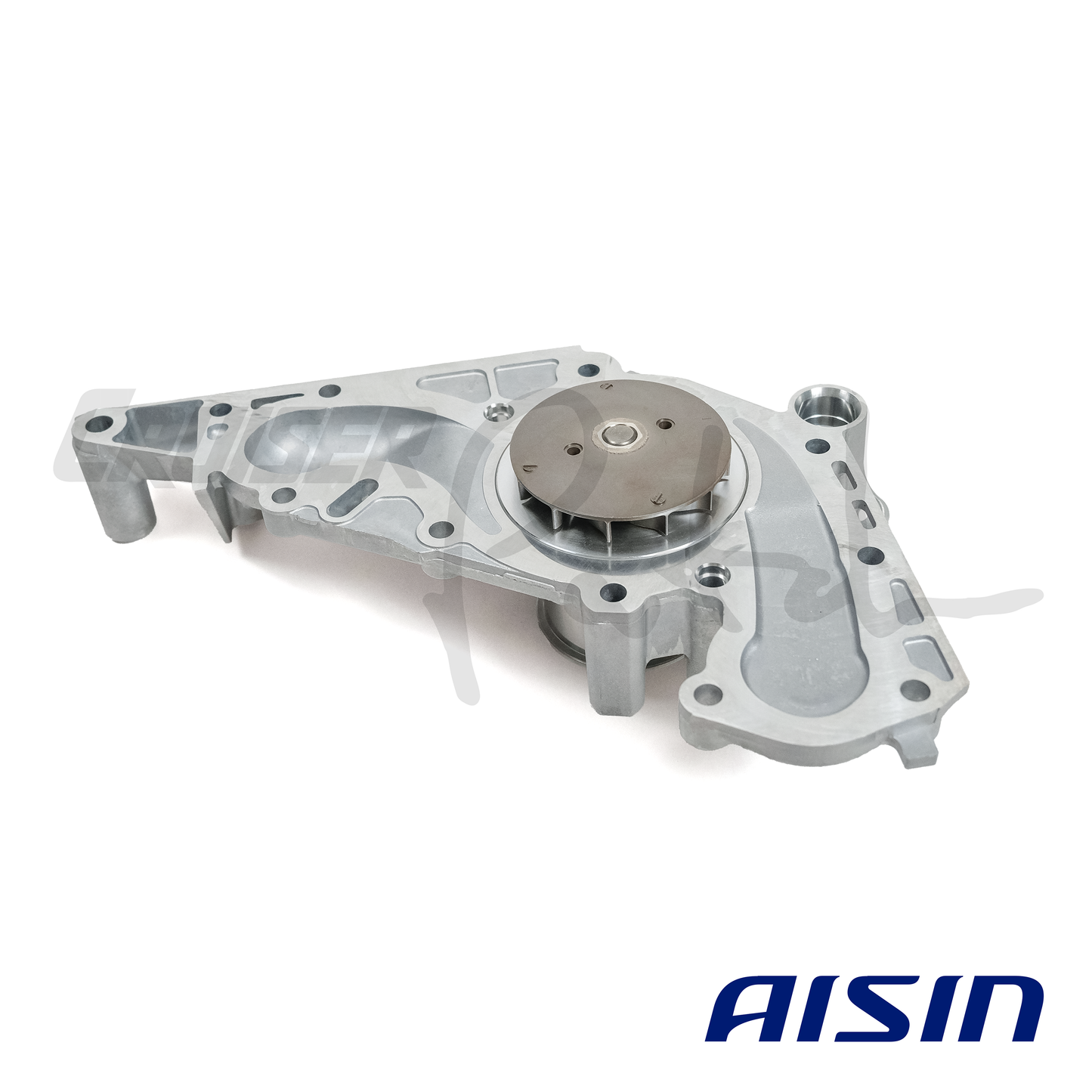

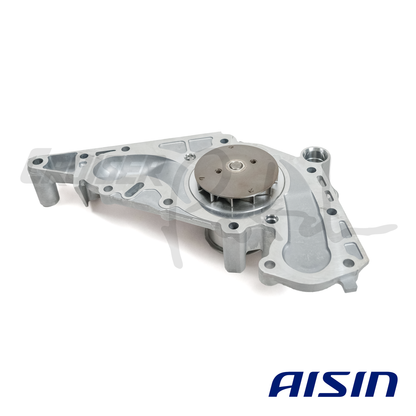

• AISIN water pump (1x): WPT-125V (WPT-800, Toyota: 16100-59276, 16100-59275)
• AISIN water pump gasket (1x): 16271-50010
• OE water pump inlet o-ring (1x): 96761-24019
• OE water pump bolts w/ washers (5x): 90080-11591 (91643-K0835)
• OE water inlet housing o-ring (1x): 96761-35035

Fitment details:

• 01.1998-01.2012 Toyota Land Cruiser (UZJ100, UZJ200)
• 01.1998-07.2007 Lexus LX470 (UZJ100)
• 11.2002-07.2009 Lexus GX470 (UZJ120)
• Toyota Tundra (2UZ-FE equipped)
• Toyota Sequoia (2UZ-FE equipped)
• Toyota 4runner (2UZ-FE equipped)

*MADE IN USA

MADE IN JAPAN
