Cruiser Patch 100 Series Toyota Land Cruiser LX470 Washer Fluid Tank Relocation kit

Made to order- expect 3-4 week lead time

*Prototypes shown, actual product appearance may vary

When fitting over sized tires on a 100 Series Toyota Land Cruiser or Lexus LX470, it is often required to relocate the windshield washer fluid reservoir to a new spot in the engine bay.

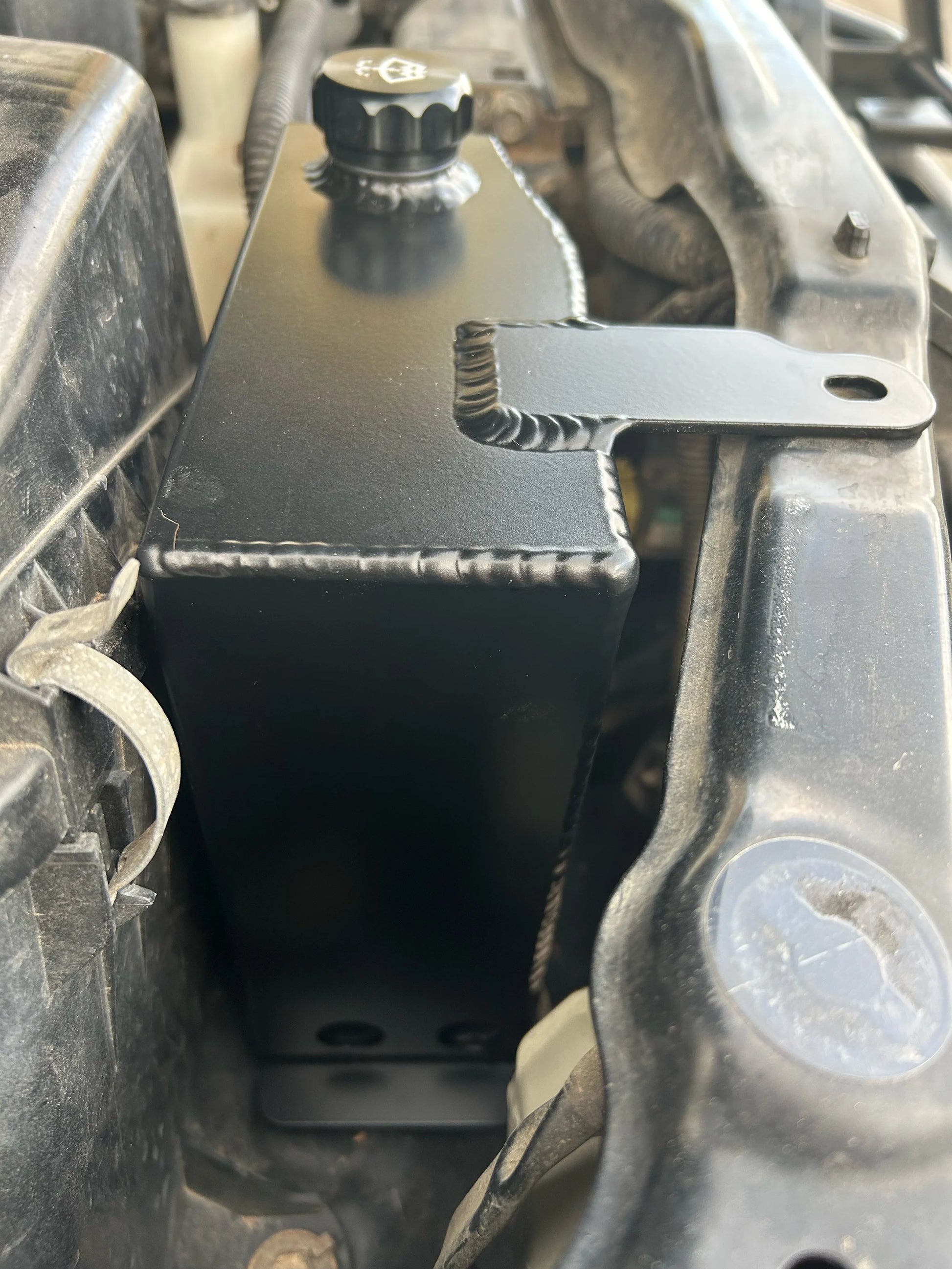

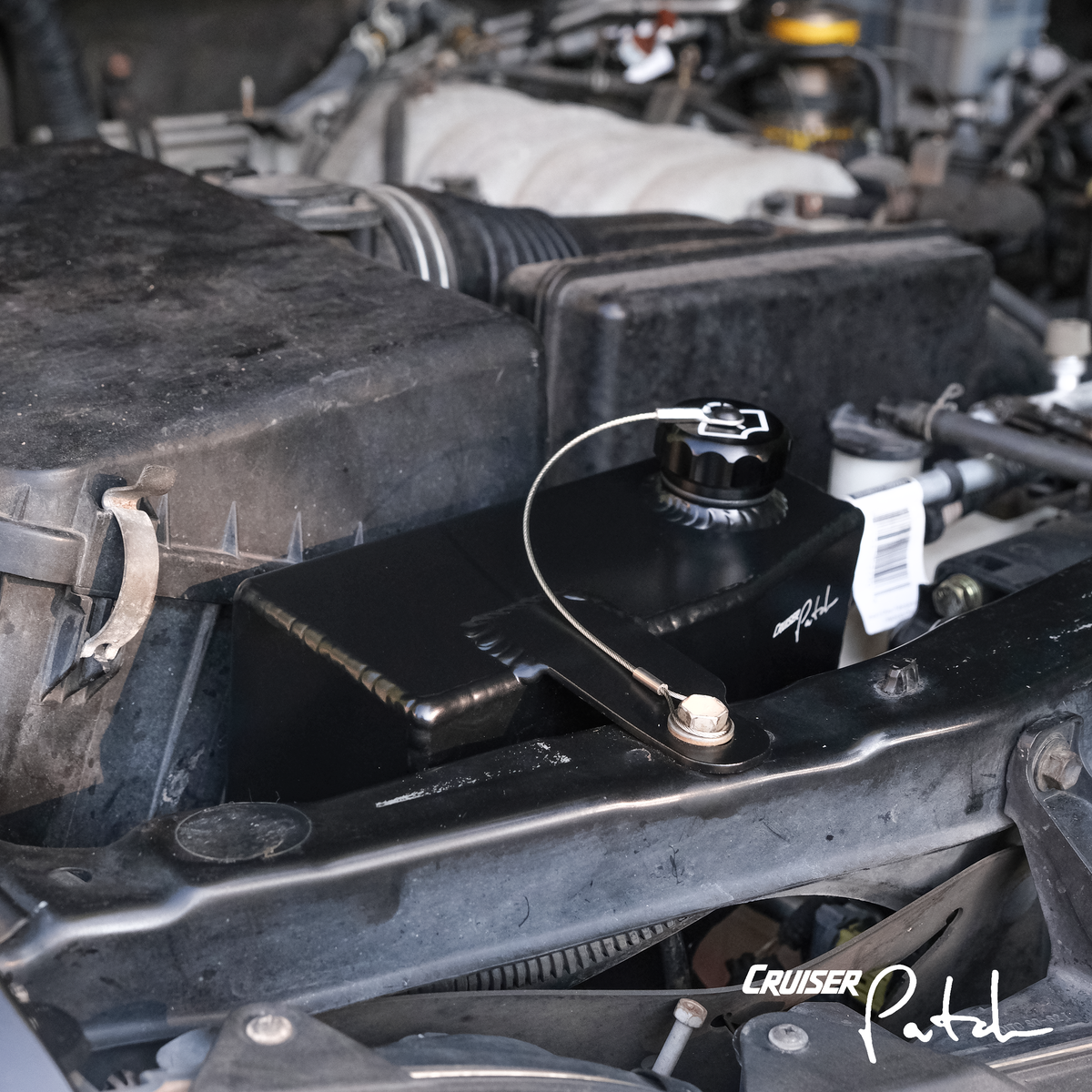

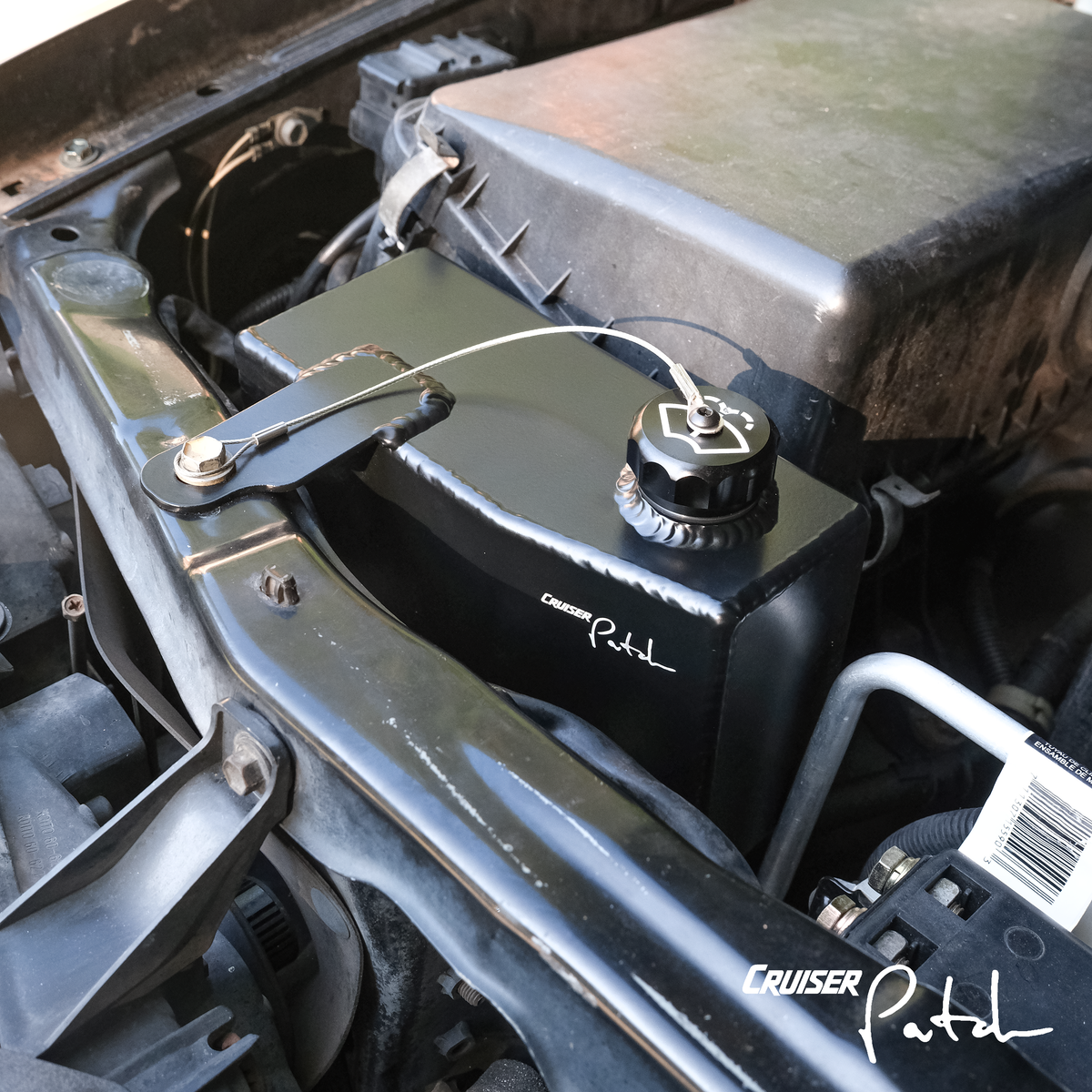

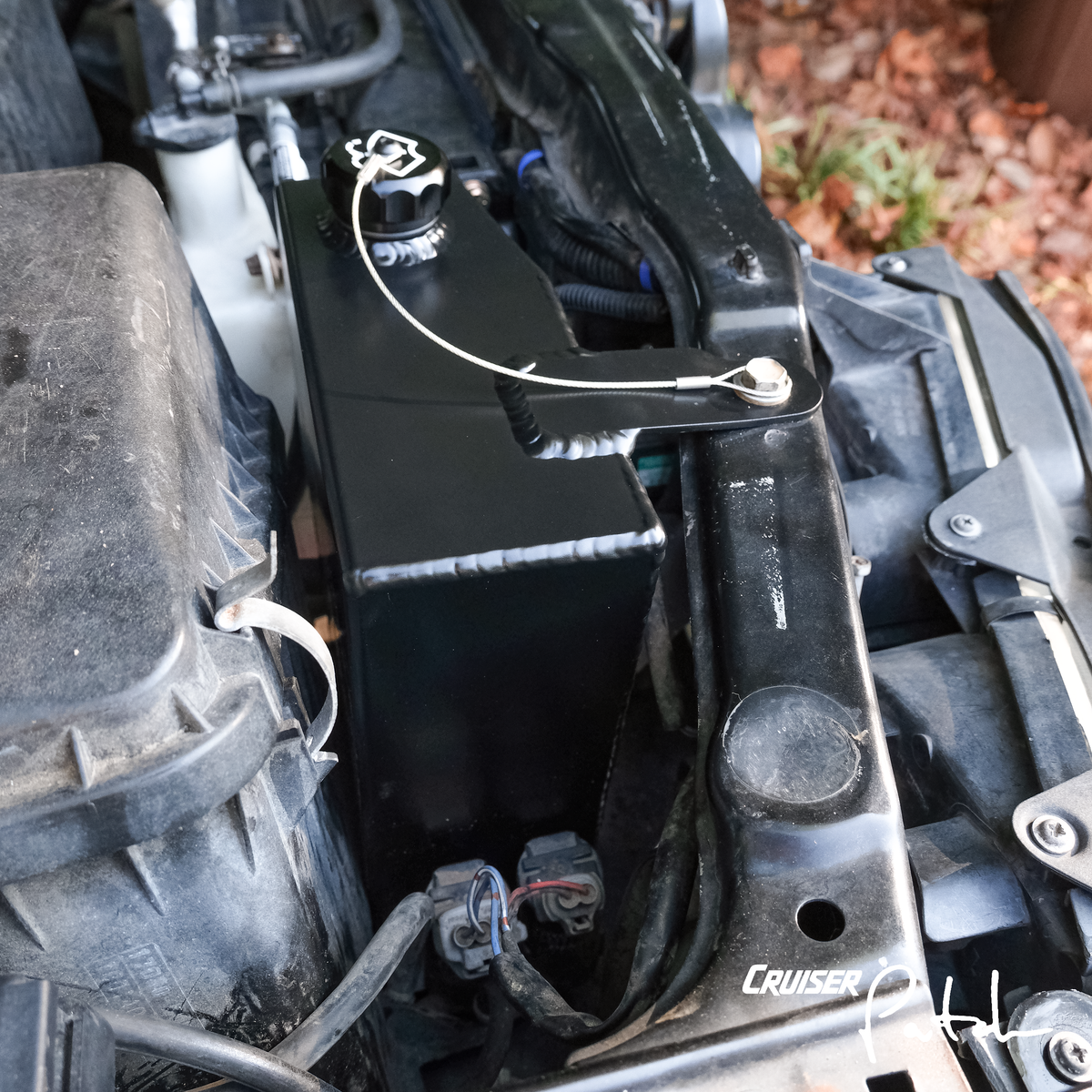

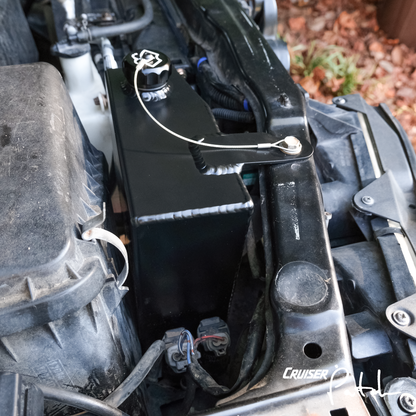

This kit allows users to relocate the wiper fluid tank on their 100 Series into the engine bay, freeing up space in the wheel well.

Installation note: the Lexus LX470 is equipped with a fluid level sensor from the factory. This tank does NOT include a space for the sensor and will therefore delete this function. Unplugging the sensor's wiring will disable the light on the dash.

Does NOT fit LX470 with night vision.

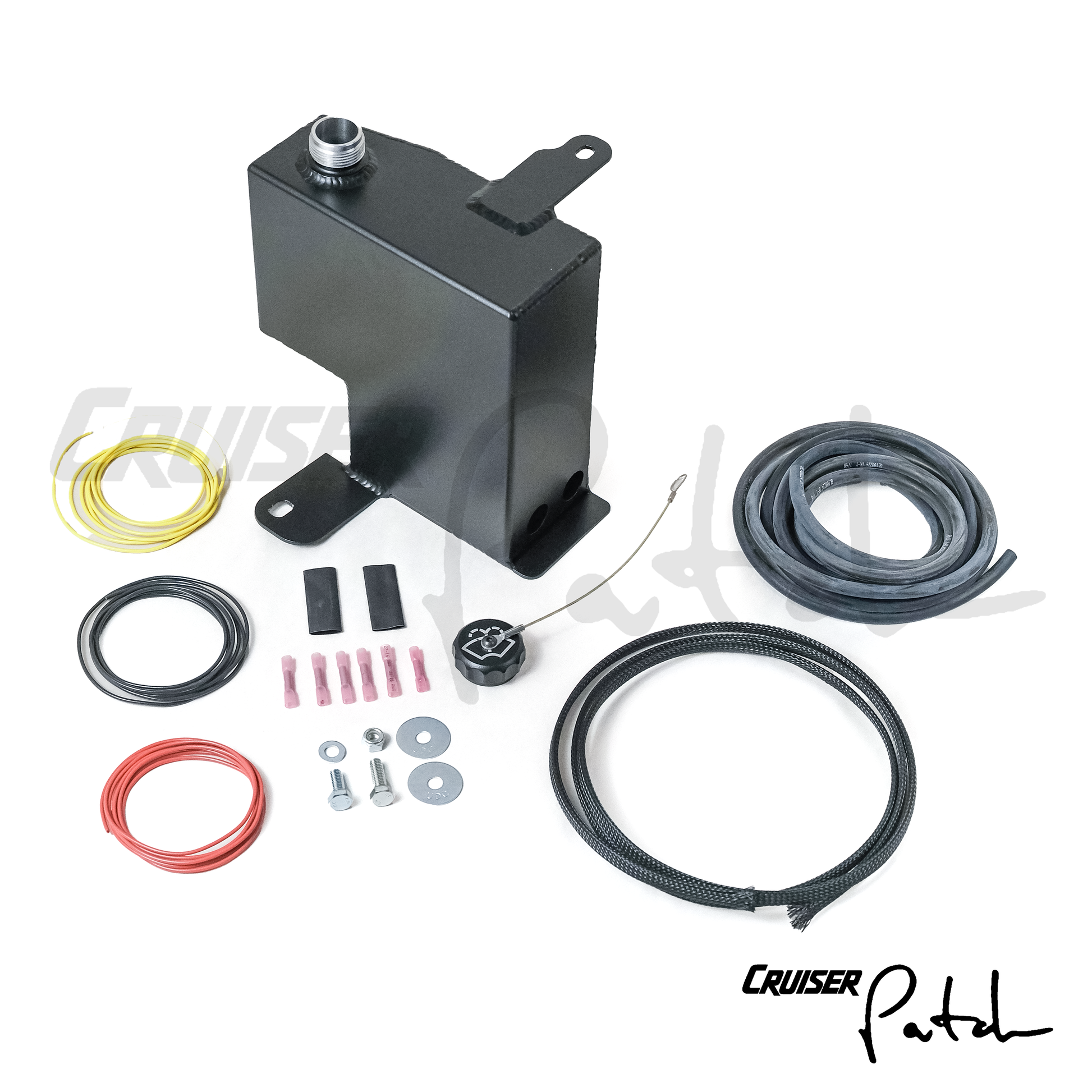

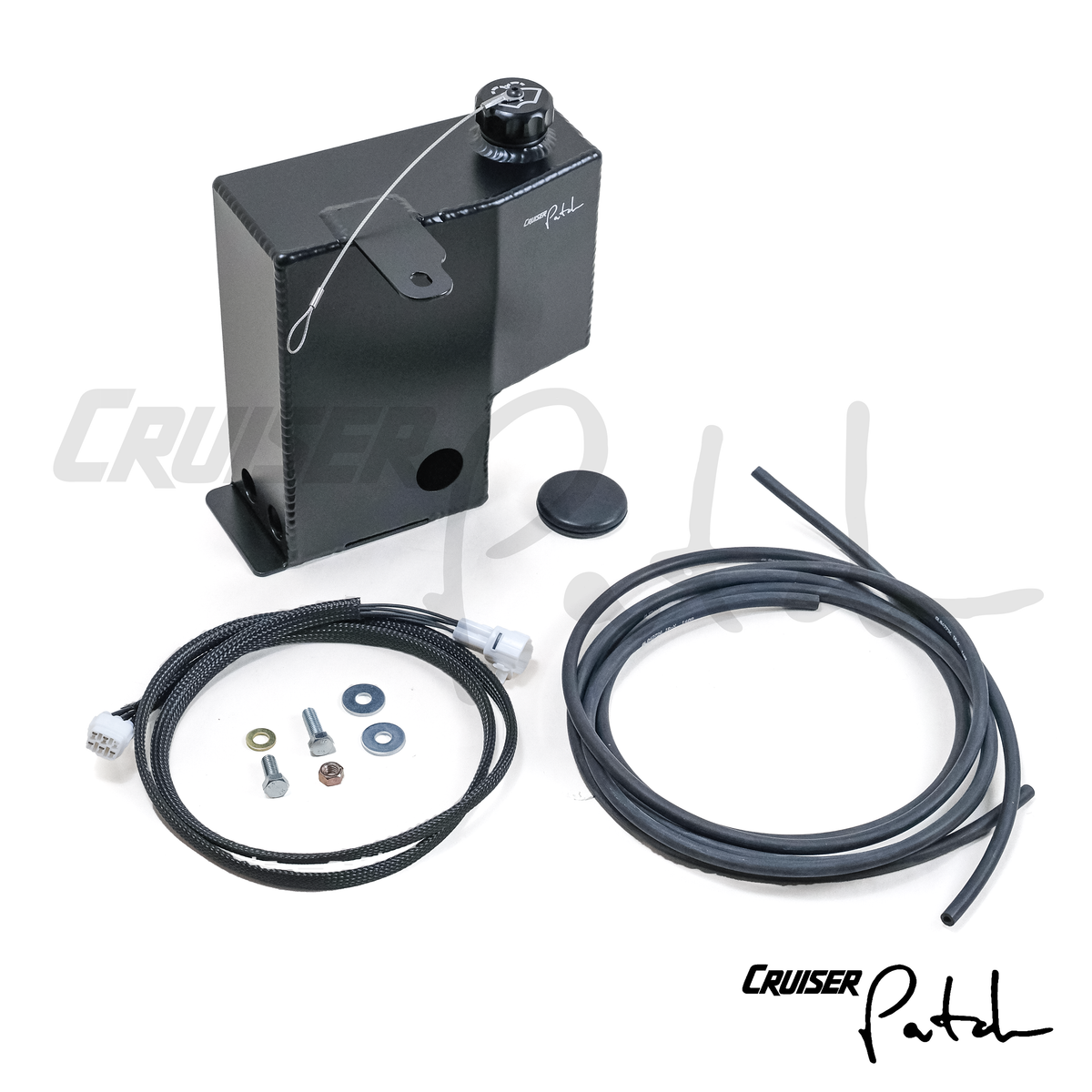

Includes:

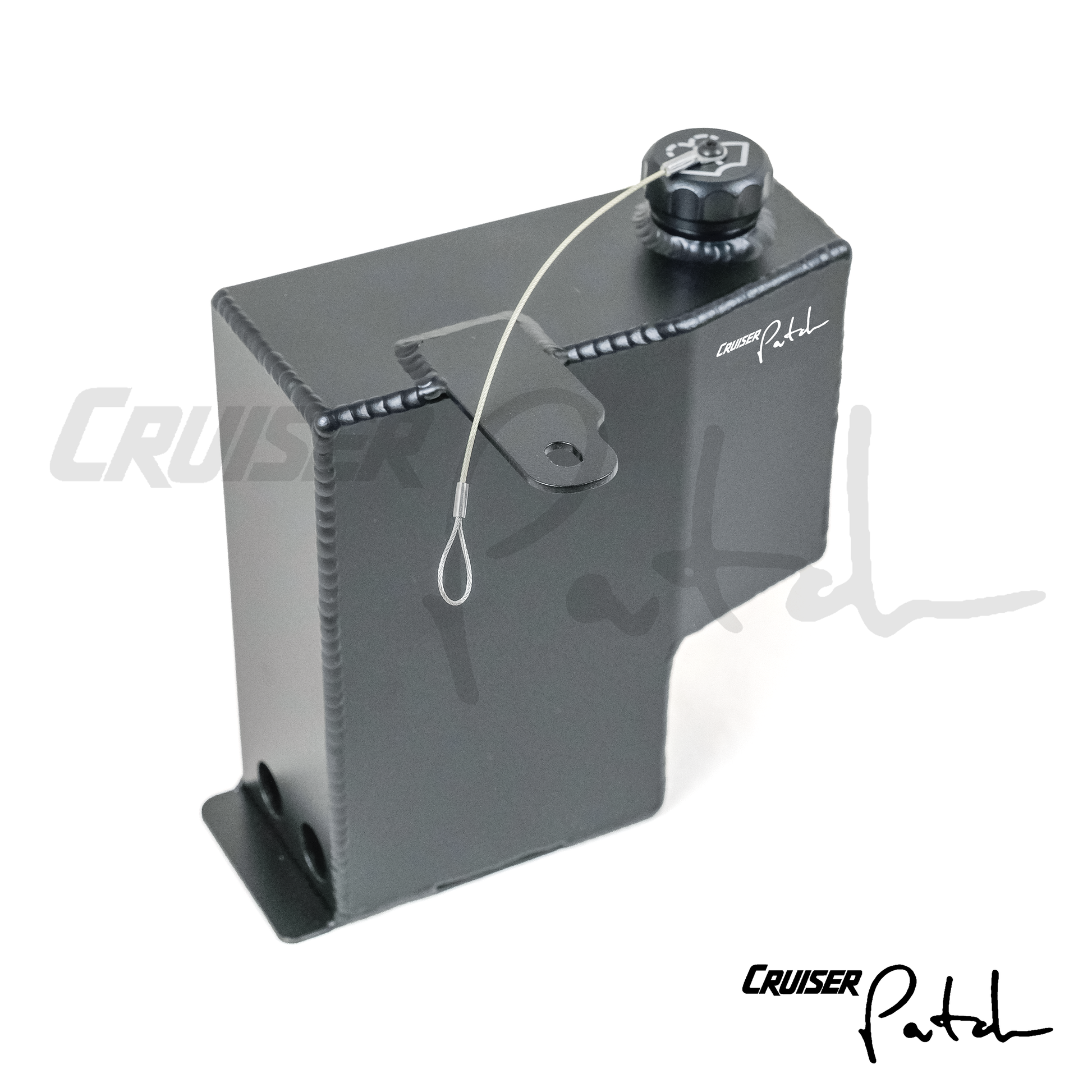

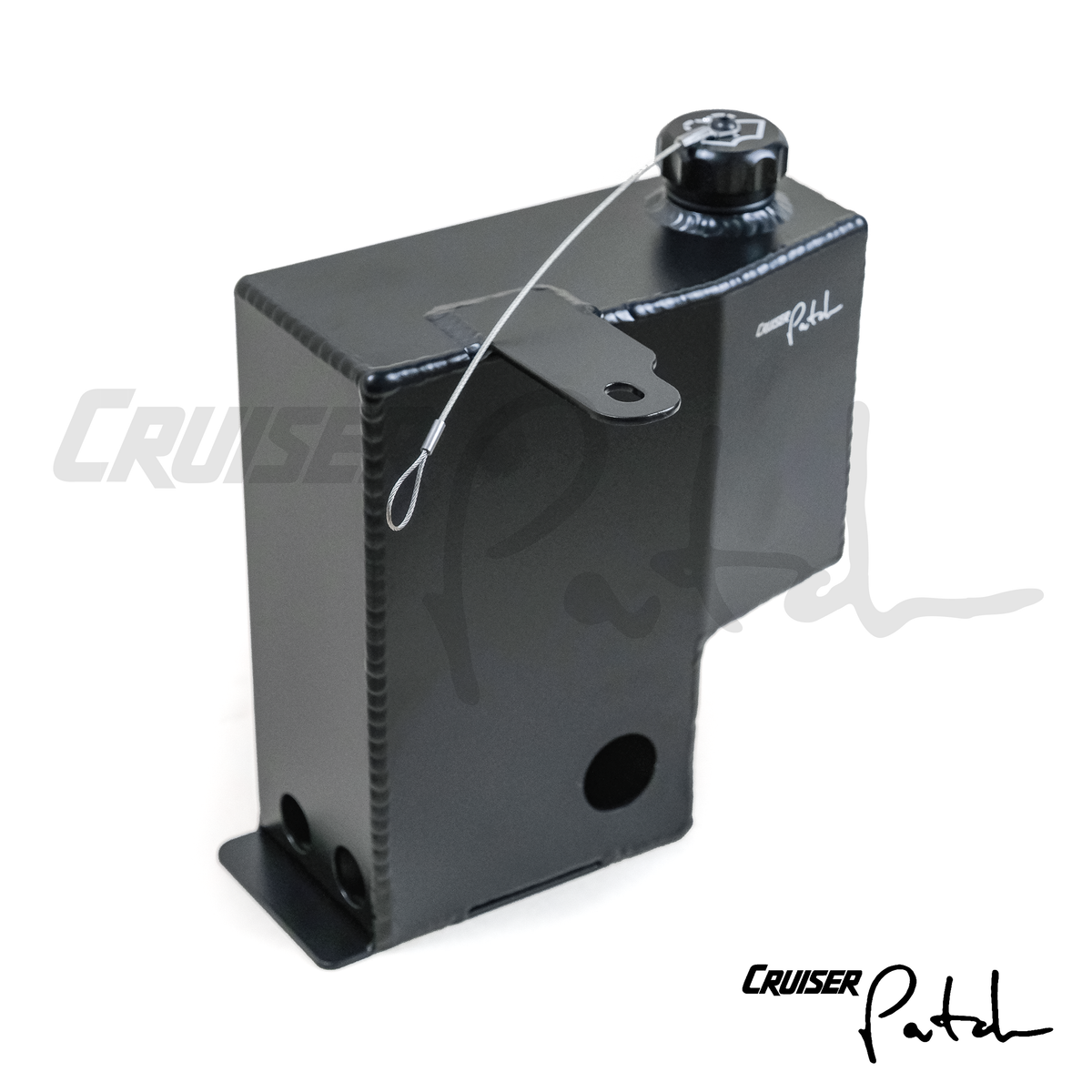

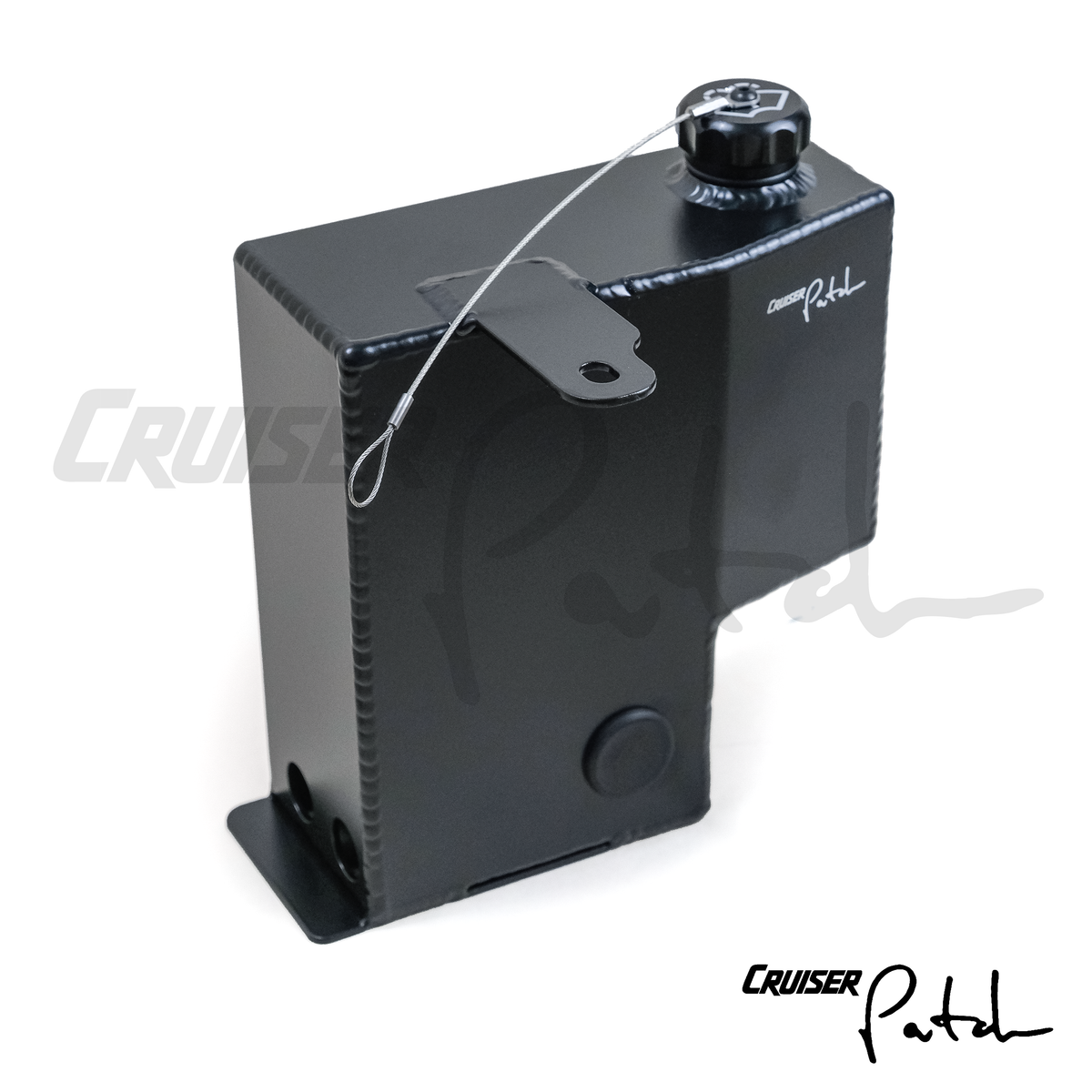

• Cruiser Patch 100 Series washer fluid tank (1x):
• M8x1.25 class 8.8 25mm through bolt (1x):
• M8x1.25 nut (1x):
• M8x1.25 class 8.8 20mm bolt (1x):
• M8 washer (1x):
• M8 oversized washers (2x):
• 18 AWG wire (3x): 6 feet long
• 18 AWG crimp & solder butt connectors (6x):
• 1/2" braided loom (1x): 6 feet long
• Heat shrink caps (2x):
• Windshield washer fluid hose (2x): 6 feet long by 4mm (5/32") ID rubber hose

Specifications:

• material: .100" 5052 aluminum
• welding process: tig
• finish: black powder coat

Fitment details: (fits LHD vehicles only - RHD owners please contact us for more details)

• 01.1998-07.2007 Toyota Land Cruiser (UZJ100, FZJ100, HZJ100, HDJ101, HZJ105, FZJ105)
• 01.1998-07.2007 Lexus LX470 (UZJ100)*
• *Does NOT fit Lexus LX470 equipped with nightvision

Idea and design courtesy of Kyle Freud (formerly, Plaidwagon)

MADE IN USA
