Cruiser Patch 100 Series Toyota Land Cruiser LX470 Charcoal Canister Retrofit Bracket Set

Sold as a pair (2x brackets)

The early style charcoal box for the 100 Series is no longer available (NLA) but using some collective knowledge from ih8mud, some dedicated members have located suitable replacements using Toyota Camry and/or Lexus ES300 charcoal canister assemblies.

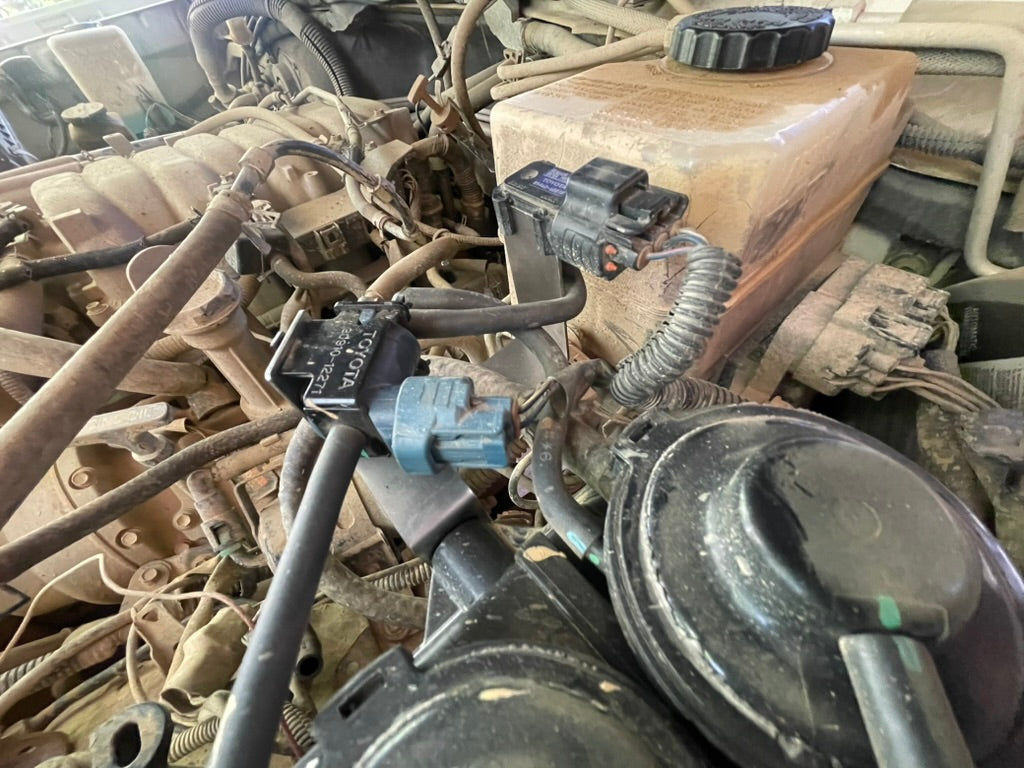

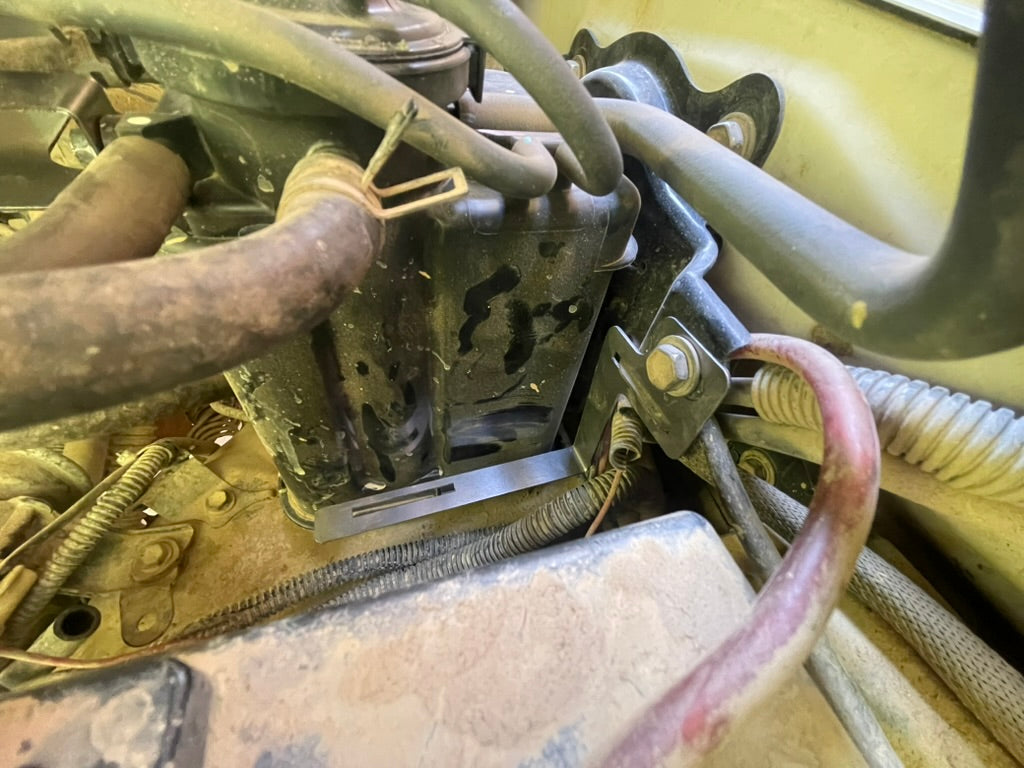

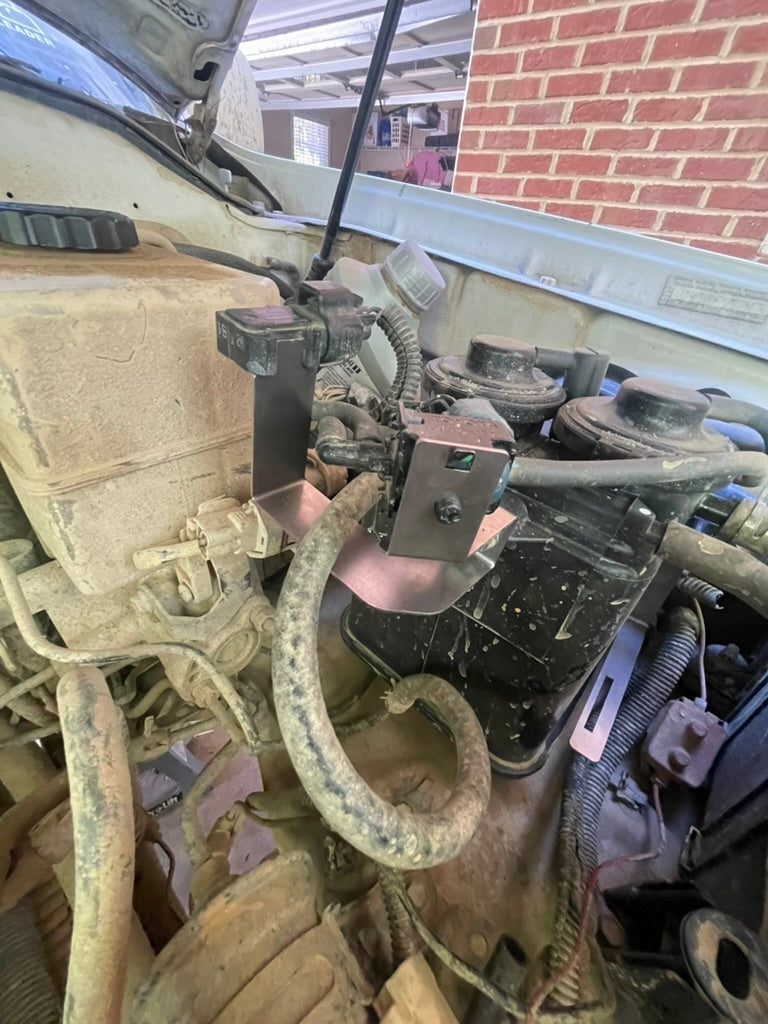

These brackets relocate the vapor pressure sensor, vapor switch, and exhaust vent from the OEM charcoal canister (part no. 77740-60390) onto the new charcoal box (part no. 77740-33062). Both brackets are CNC cut and bent from 1.29mm A36 mild steel finished in gloss black powder coat.

Includes:

• Cruiser Patch vapor sensor & switch relocation bracket (1x): 77740-33062-CP-V1.0

• Cruiser Patch exhaust vent relocation bracket (1x): Vent-Holder-V1.1


Fitment details:

• 01.1998-08.2002 Toyota Land Cruiser (UZJ100)
• 01.1998-08.2002 Lexus LX470 (UZJ100)

MADE IN USA
