Ultimate IFS 100 Series Toyota Land Cruiser LX470 Wheel Bearing Replacement kit

*Two (2x) required per vehicle, 1x per side (sold individually)

This "ultimate" wheel bearing refresh kit includes all the necessary hardware, seals and extras for replacement of the wheel bearings on the 100 Series Toyota Land Cruiser and Lexus LX470 SUVs.

Japanese OE spec manufactured wheel bearing kit for 100 Series Toyota Land Cruiser and Lexus LX470 IFS hubs.

A 54-55mm hub socket is required to complete this job correctly. Be sure to browse our tools to be prepared!

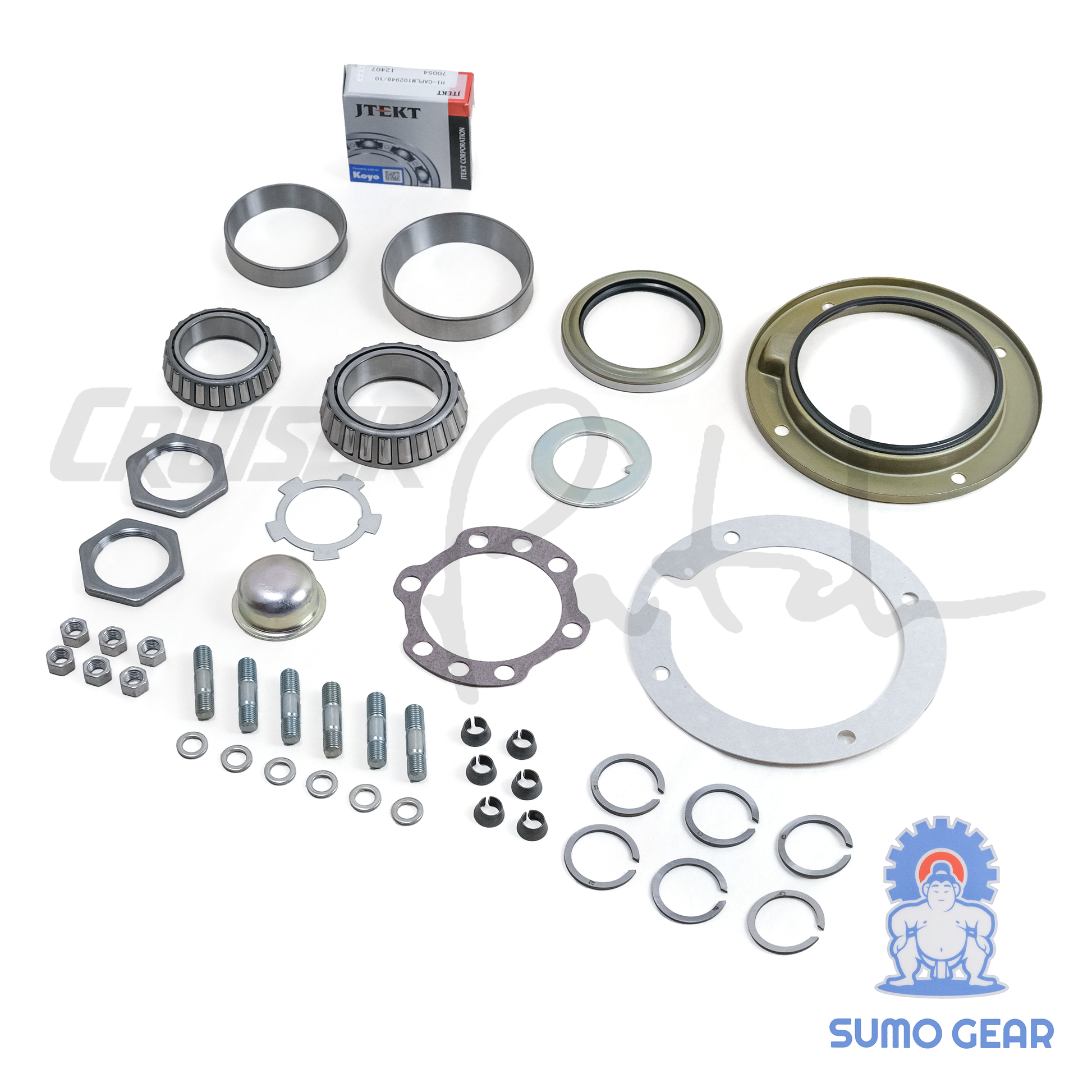

Includes:

• JTEKT* (Koyo) inner hub axle bearing & race RH/LH (1x): KOY-90080-36098 (90080-36098)
• JTEKT* (Koyo) outer hub axle bearing & race RH/LH (1x): KOY-90368-45087 (90368-45087, 90080-36067)
• NOK seal, oil, for front axle hub RH/LH (1x): NOK-90311-70011 (90311-70011)
• Washer, front wheel adjusting lock RH/LH (1x): SG-90215-42025 (90215-42025)
• KP gasket, front axle outer shaft flange RH/LH (1x): KP-43422-60070 (43422-60070)
• OEM nut, front wheel adjusting, RH/LH (2x): 43521-60011
• OEM washer, claw, for steering knuckle washer, RH/LH (1x): 90214-42030
• OEM bolt, stud for front axle outer shaft flange RH/LH (6x): 90116-10201
• OEM washer, cone for front axle shaft, RH/LH (6x): 42323-60030
• OEM nut, hexagon (6x): 90170-10039
• OEM washer (6x): 90116-10201
• OEM cap, front axle hub grease, RH/LH (1x): 43423-35010
• OEM seal, dust for front axle hub, RH/LH (1x): 90313-99001
• OEM gasket, knuckle spindle oil retainer (1x): 43436-60020

• OEM snap ring (1x): 90520-31005 (size B = 2.8mm)
• OEM snap ring (1x): 90520-31006 (size C = 2.6mm)
• OEM snap ring (1x): 90520-31007 (size D = 2.4mm)
• OEM snap ring (1x): 90520-31008 (size E = 2.2mm)
• OEM snap ring (1x): 90520-31009 (size F = 2.0mm)
• OEM snap ring (1x): 90520-31010 (size G = 1.8mm)

Fitment details:

• 01.1998-07.2007 Toyota Land Cruiser (UZJ100, HDJ100, FZJ100, HDJ101)
• 01.1998-07.2007 Lexus LX470 (UZJ100)


*JTEKT corporation formerly sold as 'Koyo'

MADE IN JAPAN
