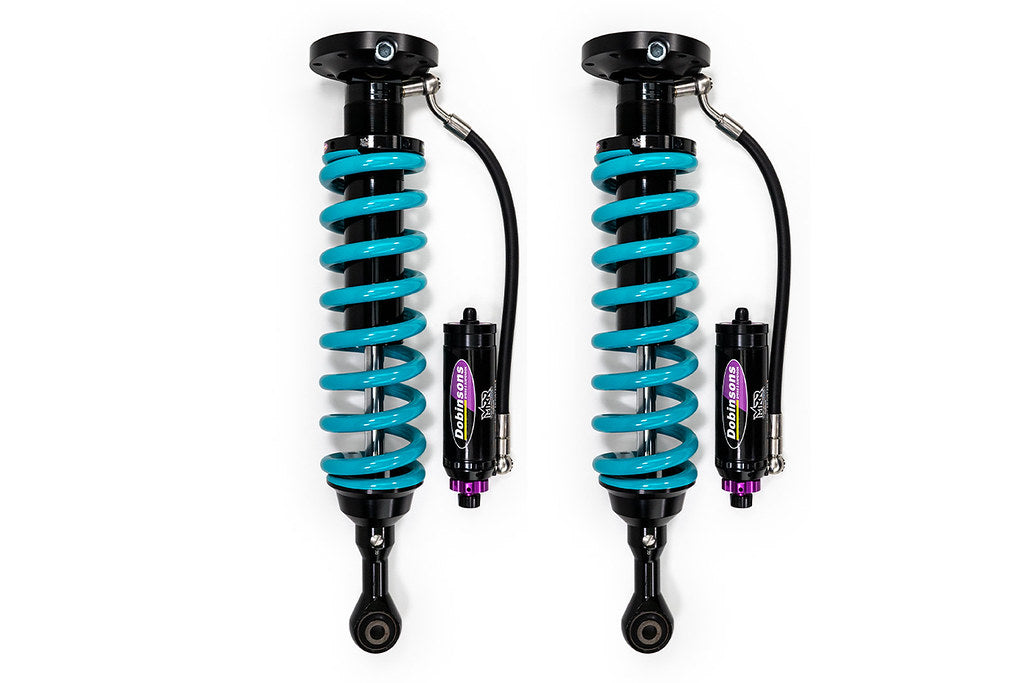

DOBINSONS MRR 3 WAY ADJUSTABLE MONOTUBE RESERVOIR STRUT 2.6" (INVERTED STYLE) - MRA59-A710

\n
• Coil Springs are NOT included unless selected and purchased
\n
• 16" coils with a 3" inner diameter are compatible with these struts
\n

\n
• C92-3016650 Specs \n
  \n
  • Inner Diameter - 3.0"
  \n
  • Length - 16"
  \n
  • Spring Rate - 650lb/in
  \n
  \n
\n

\n
• 3-way Adjustable shocks provide maximum adjustability to provide the perfect ride quality for you.
\n
• 10 Stage High Speed Compression - For aggressive, high speed off roading through ruts and holes.
\n
• 20 Stage Low Speed Compression - For creepy crawling and cornering
\n
• 15 Stage Rebound - Control your coils, prevent bucking
\n
• 60mm CNC Machined High Flow Billet Aluminium Race Piston
\n
• 66mm / 2.6" Bodies
\n
• 3mm Thick Heavy Duty DOM Seamless 66mm O.D. shock Body Precision Honed to +/- 0.04mm
\n
• Upgraded 3 Stage FKM€?HNBR Sealing System
\n
• TSUGAMITM CNC machined components for precise tolerances
\n
• ParkerTM Braided High Pressure Hoses
\n
• 5140 HV900 Hard Chrome Plated, Heat treated 18mm Micro-Polished high strength Shock Shaft with a minimum tensile strength exceeding 700MPA
\n
• T6 6061 Height Adjustable Spring Seat
\n
• Carbon-Fibre/PTFE/Disulphide composite wear band for the ultimate in low-friction, low€?wear performance
\n
• 60mm Full 6063 aluminum remote reservoir
\n
• Lightweight CNC Machined Low Friction floating piston
\n
• High Quality O.E.M. Grade Natural Rubber Bushings
\n
• Single Piece Lower Leg
\n
• EDP Surface Protection
\n
• Direct Bolt-On Design
\n
• CNC TIG Precision Welded Body End Mounts
\n
• Fully Rebuildable Design
\n

MRA59-A710 Instructions
