OEM IFS 100 Series Toyota Land Cruiser LX470 Wheel Bearing Service Kit (Expendables Only)

*Two (2x) required per vehicle, 1x per side (sold individually)

This "expendables" wheel bearing service kit includes all the necessary gaskets, seals and single-use items for repacking the wheel bearings on the 100 Series Toyota Land Cruiser and Lexus LX470 SUVs.

Japanese OEM wheel bearing service kit for 100 Series Toyota Land Cruiser and Lexus LX470 IFS hubs. This kit does NOT include wheel bearings. See our other kits for wheel bearing replacement.

A 54-55mm hub socket is required to complete this job correctly. Be sure to browse our tools to be prepared!

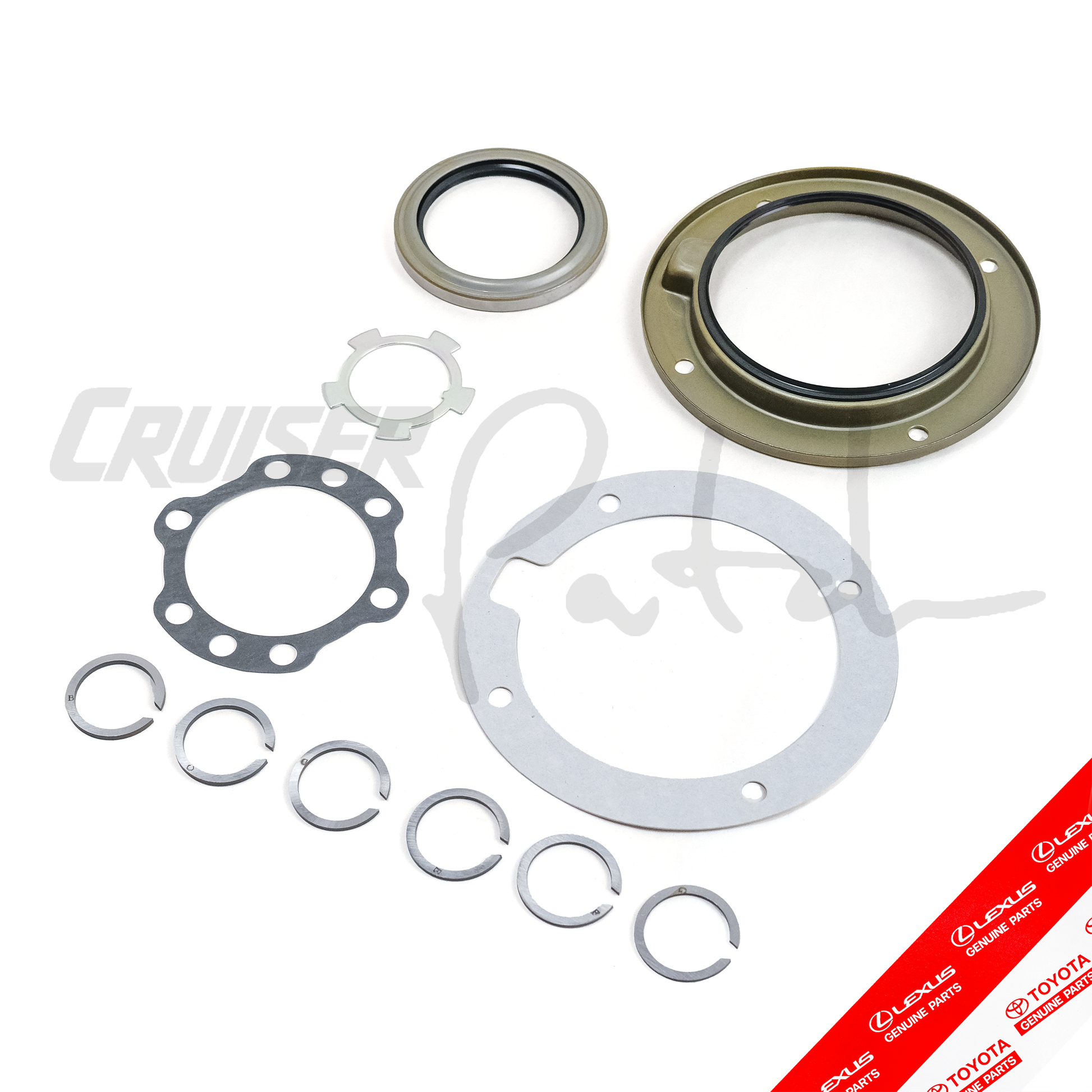

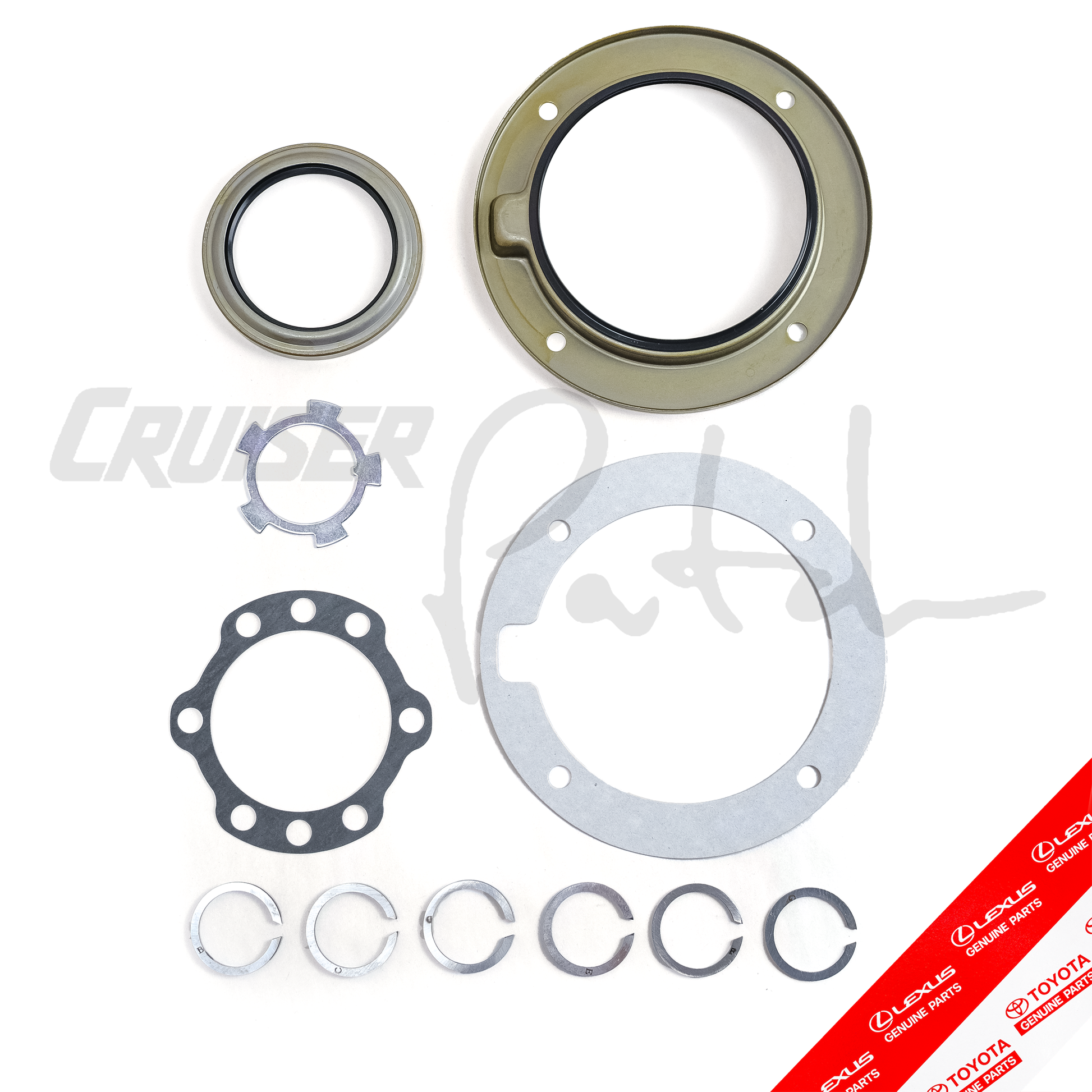

Includes:

• OEM seal, oil, for front axle hub RH/LH (1x): 90311-70011
• OEM washer, front wheel adjusting lock RH/LH (1x): 90215-42025
• OEM gasket, front axle outer shaft flange RH/LH (1x): 43422-60070
• OEM seal, dust for front axle hub, RH/LH (1x): 90313-99001
• OEM gasket, knuckle spindle oil retainer (1x): 43436-60020

• OEM snap ring (1x): 90520-31005 (size B = 2.8mm)
• OEM snap ring (1x): 90520-31006 (size C = 2.6mm)
• OEM snap ring (1x): 90520-31007 (size D = 2.4mm)
• OEM snap ring (1x): 90520-31008 (size E = 2.2mm)
• OEM snap ring (1x): 90520-31009 (size F = 2.0mm)
• OEM snap ring (1x): 90520-31010 (size G = 1.8mm)

Fitment details:

• 01.1998-07.2007 Toyota Land Cruiser (UZJ100, HDJ100, FZJ100, HDJ101)
• 01.1998-07.2007 Lexus LX470 (UZJ100)


MADE IN JAPAN
