Cruiser Patch

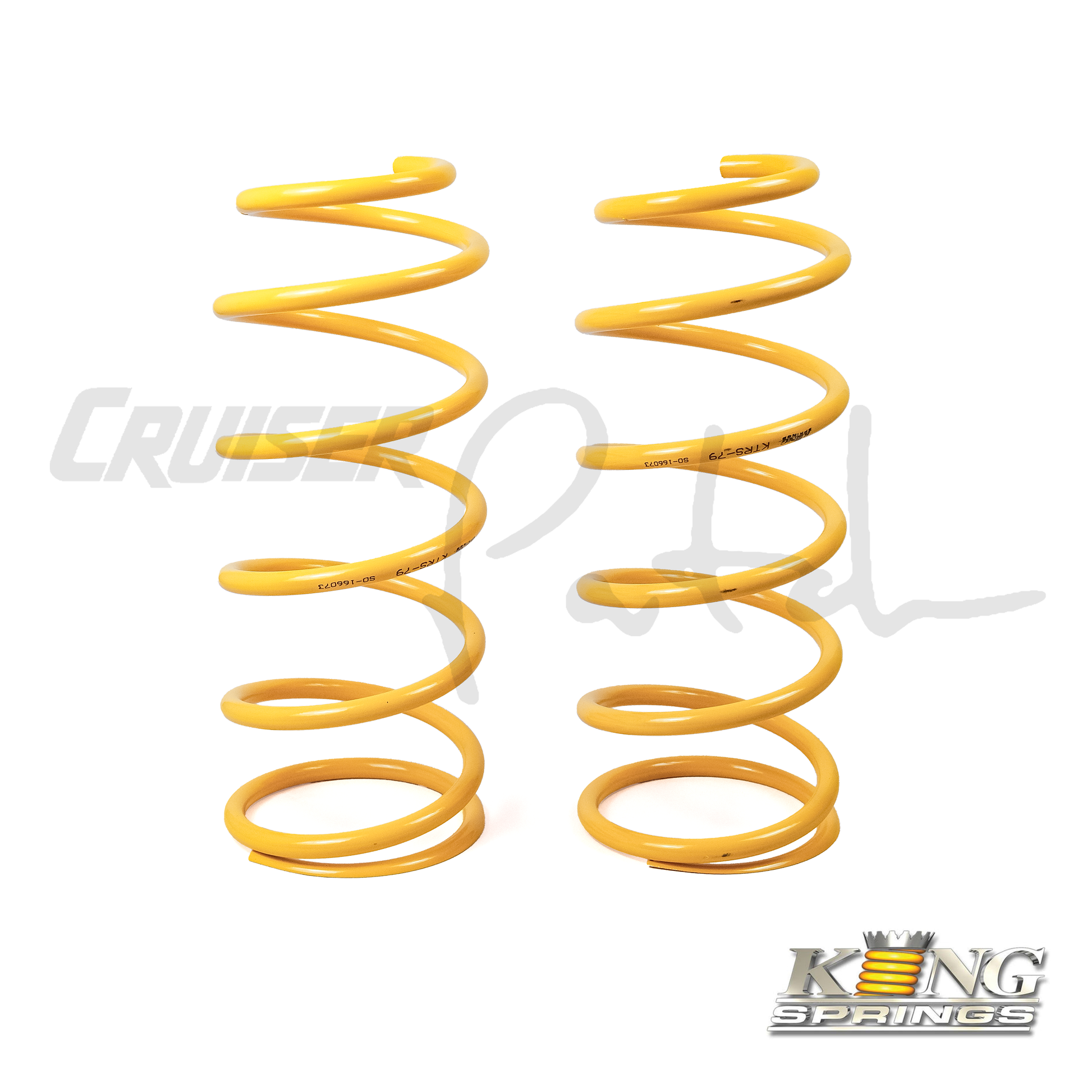

King Springs 100 Series Toyota Land Cruiser LX470 KTRS-79 Rear Coil Springs AHC+ (pair)
King Springs 100 Series Toyota Land Cruiser LX470 KTRS-79 Rear Coil Springs AHC+ (pair)
3 in stock
SKU:KTRS-79
Couldn't load pickup availability
KTRS-79 intended for stock height AHC vehicles with additional weight. Does not add lift
Many 100 Series Land Cruisers and Lexus LX470s equipped with active height control (AHC) require a higher spring rate to compensate for added weight (e.g. steel bumpers, winch, drawers).
KTRS-79 coil springs are designed to maintain factory ride height in the rear while reducing the pressures of overloaded AHC systems. These springs can also be used with a sensor lift just like any other spring.
King Springs use high stress spring steel which reduce the overall weight and solid height of the springs (which increases travel). Read more here
Features:

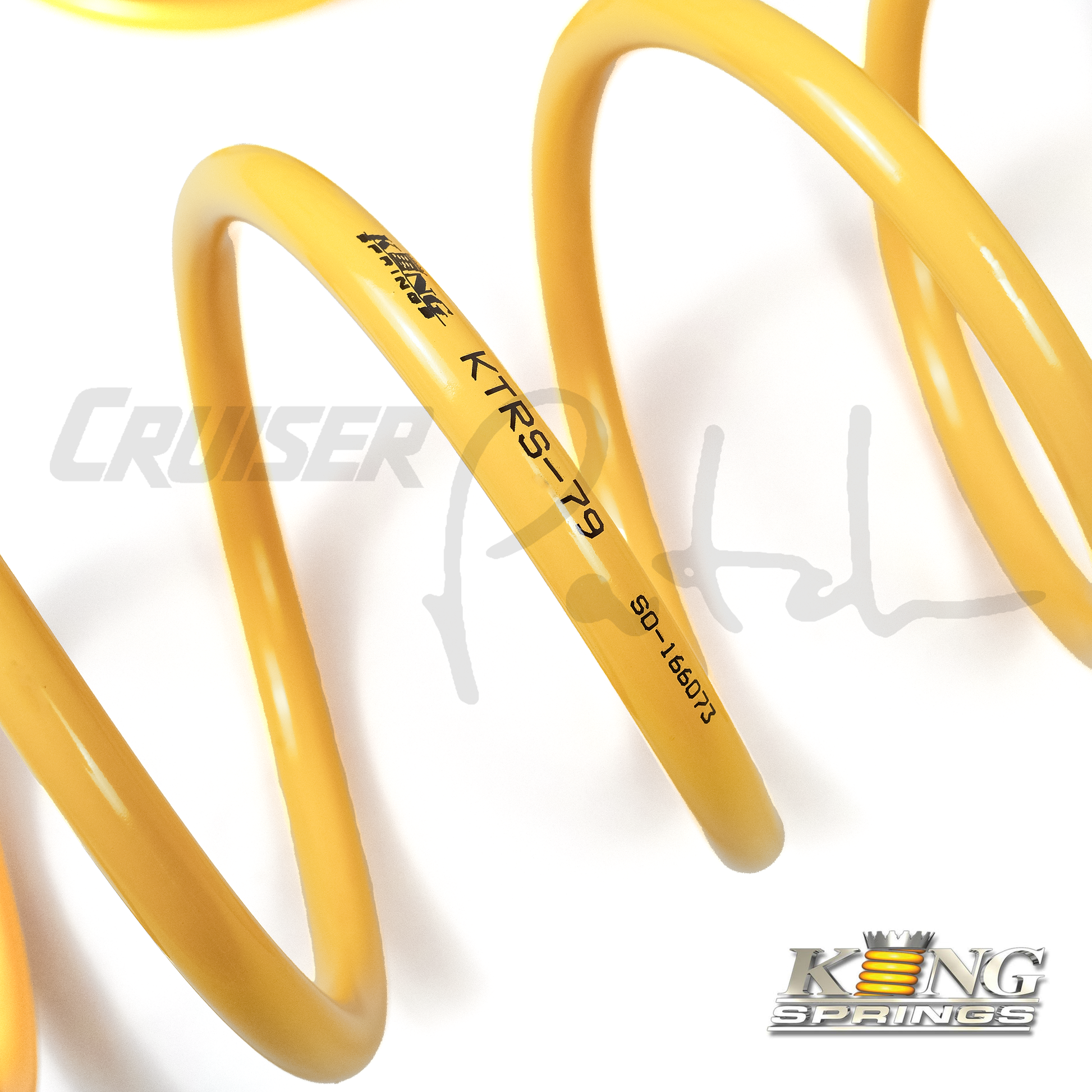

- Springs are finished in distinct yellow powder coat
- 425mm/432mm free height
Includes:
- RH rear coil spring (1x): KTRS-79
- LH rear coil spring (1x): KTRS-79
Fitment details:
- 01.1998-08.2007 Toyota Land Cruiser (AHC equipped UZJ100, HDJ100, HDJ101)
- 01.1998-07.2007 Lexus LX470 (UZJ100)
MADE IN AUSTRALIA
Share

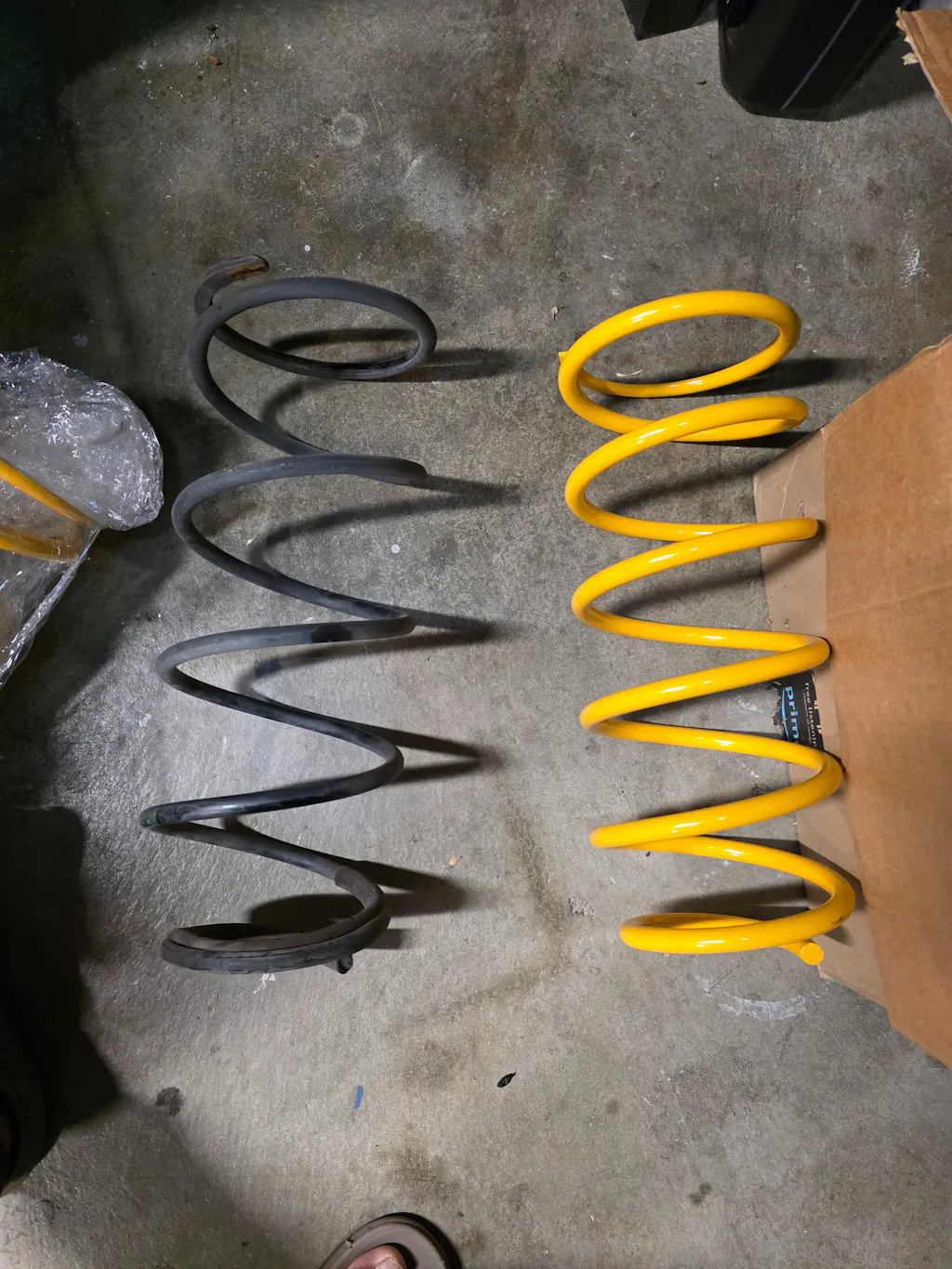

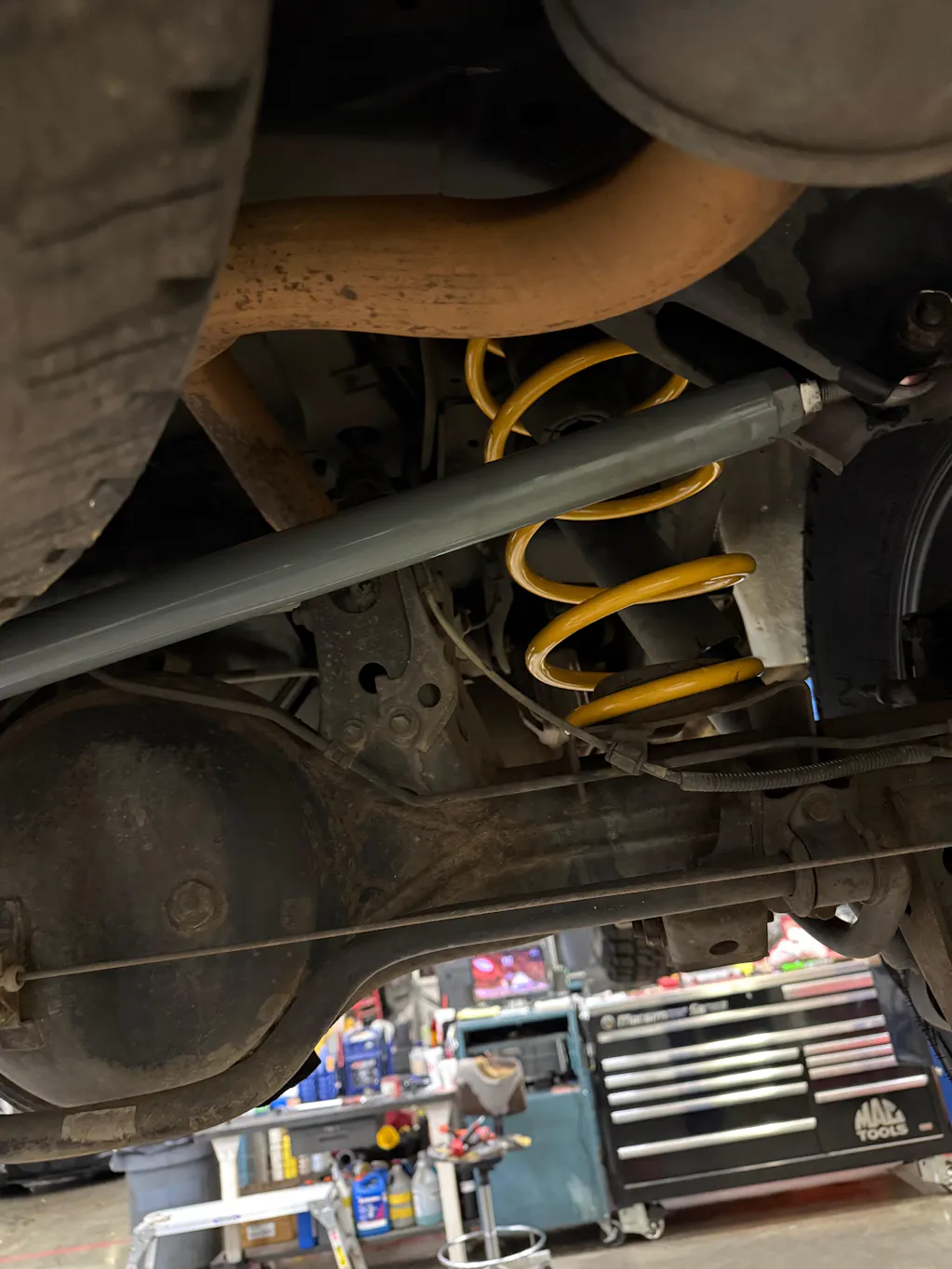

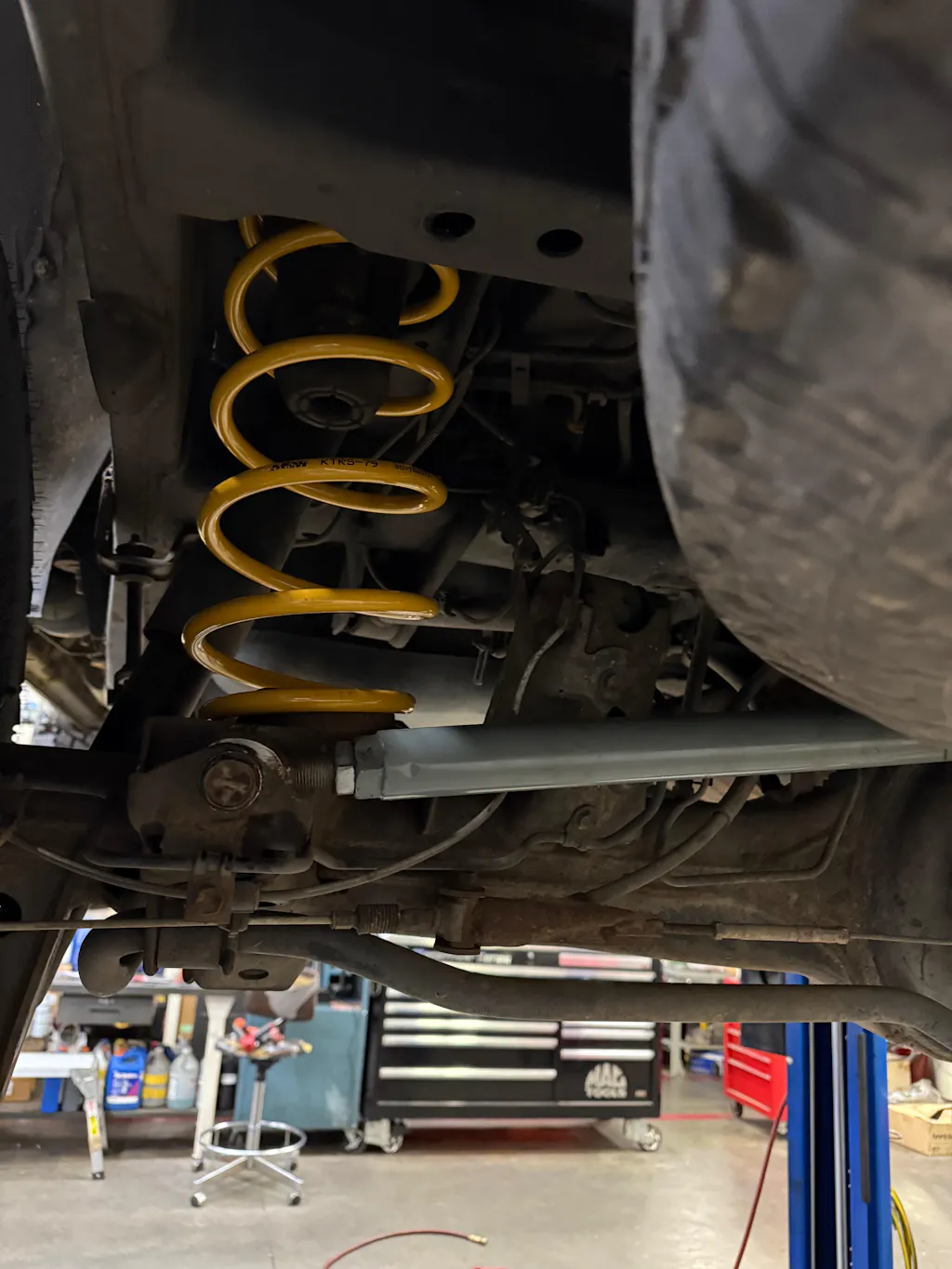

Fit perfectly. Watched cruiser patch YouTube short on the install, went in very easily. Initially my pressures were between 7.9 to 8.1 MPa. After the springs installed, rear pressure dropped to 5.9 to 6.1 MPa.
Very comfortable cruising with full gear. No more bottoming out at dips.
Patch recommended these after doing a sensor lift on my 06. The king springs helped me get my ahc pressures back to factory spec and helped the ride quality tremendously. Definitely a must on a lifted or loaded ahc truck. Highly recommend
My aha System was struggling with the bumper and added weight in the rear, this was the perfect fix to help it out and retain the AHC ride quality
