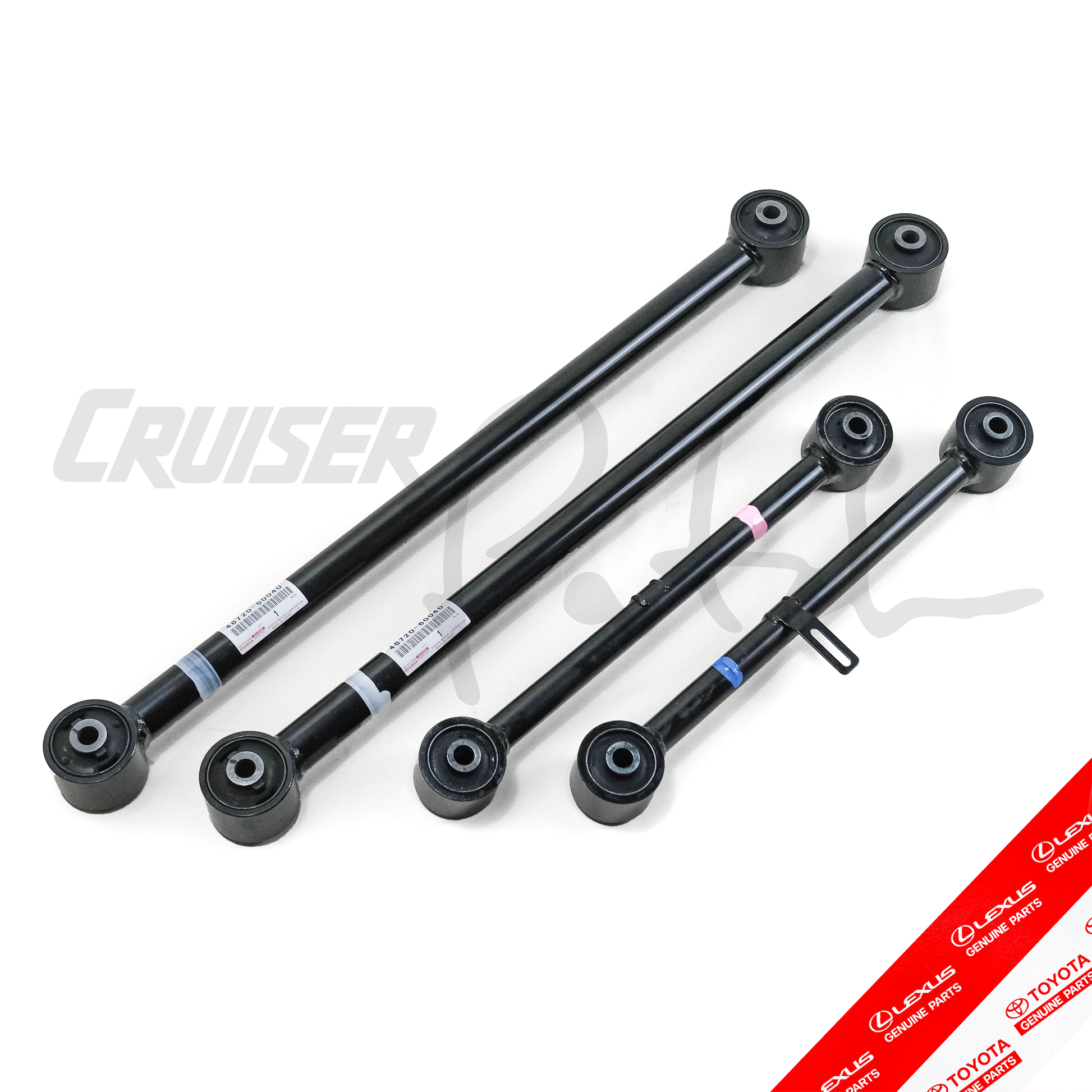

OEM IFS 100 Series Toyota Land Cruiser LX470 Rear Upper and Lower Trailing Control Arm Kit

Sold in sets of four (4x)

OEM replacement kit for the 100 Series Toyota Land Cruiser and Lexus LX470 trailing arms (rear control arms).

See also panhard track bar bushings for the 100 Series Toyota Land Cruiser.

Note: 48710-60070 and 48710-60080 are interchangeable parts except when the AHC hydraulic suspension is in use. 48710-60080 includes a height control sensor bracket which is necessary for proper function of the AHC system.

Includes:

• OEM arm assy, lower control, RH/LH (2x): 48720-60040

• Bush ID: 14.14mm
• Bush OD: 55.12mm
• Bush width: 59.8mm
• Arm length (eye-to-eye): 294mm (~27 5/16")
• OEM arm assy, upper control RH (1x): 48710-60070
• OEM arm assy, upper control LH (1x): 48710-60080
• Bush ID: 14.02mm
• Bush OD: 50.16mm
• Bush width: 59.7mm
• Arm length (eye-to-eye): 406mm (~16")

Fitment details:

• 01.1998-08.2007 Toyota Land Cruiser (UZJ100, FZJ100, HDJ100, HDJ101)
• 01.1998-07.2007 Lexus LX470 (UZJ100)
• AHC compatible

MADE IN JAPAN
