OEM 70/80/100 Series Toyota Land Cruiser LX450/LX470 Speedometer Driven Gear Replacement Kits

Toyota Land Cruiser transfer cases are prone to leaking out of the front and rear extension housings. Replacing the seals can be a pain but is necessary maintenance to keep the center differential well lubricated and sealed from water & debris.

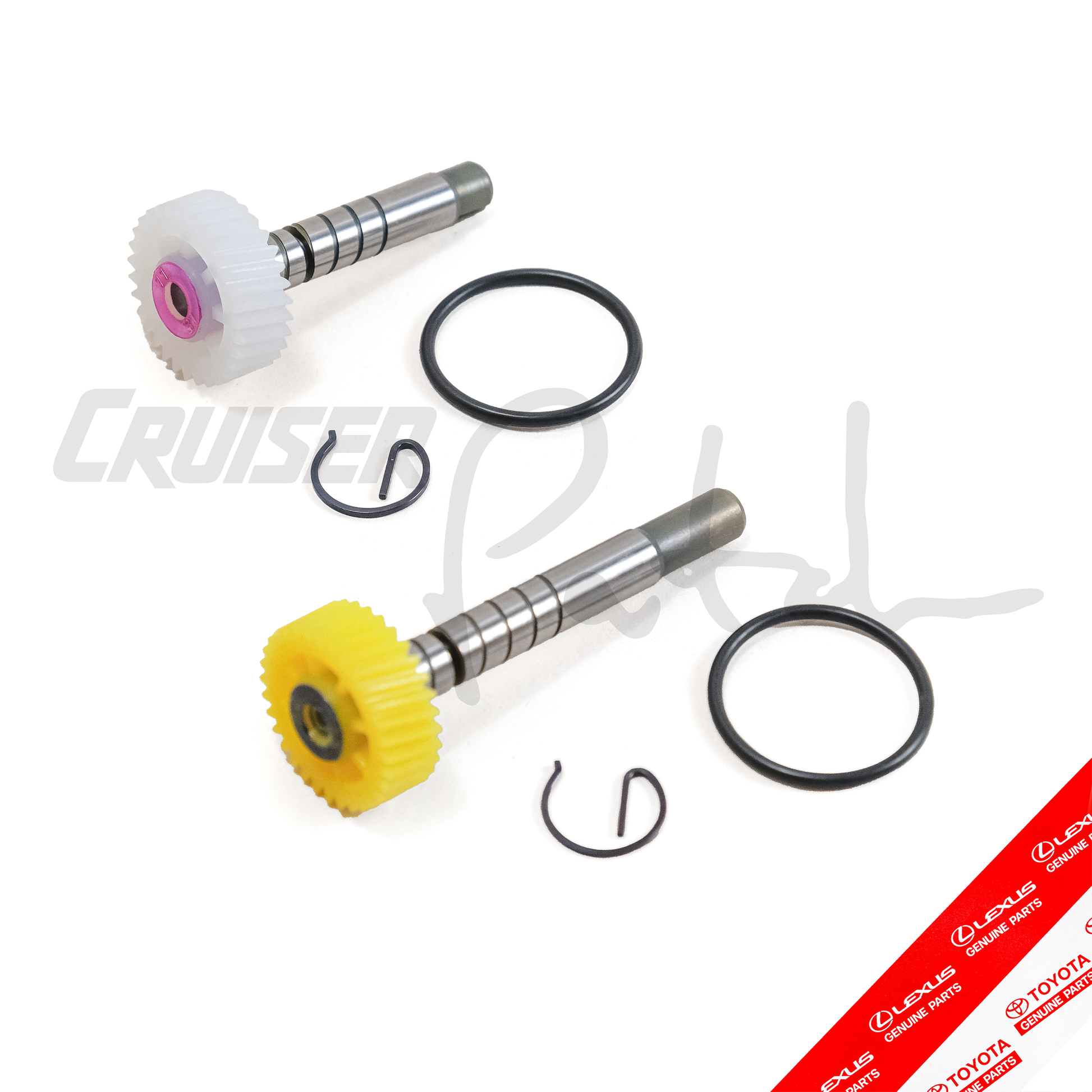

The only difference between these two kits is the length of the driven gear shaft sleeve (33403-69235 - 70mm, 33403-69305 - 50mm)

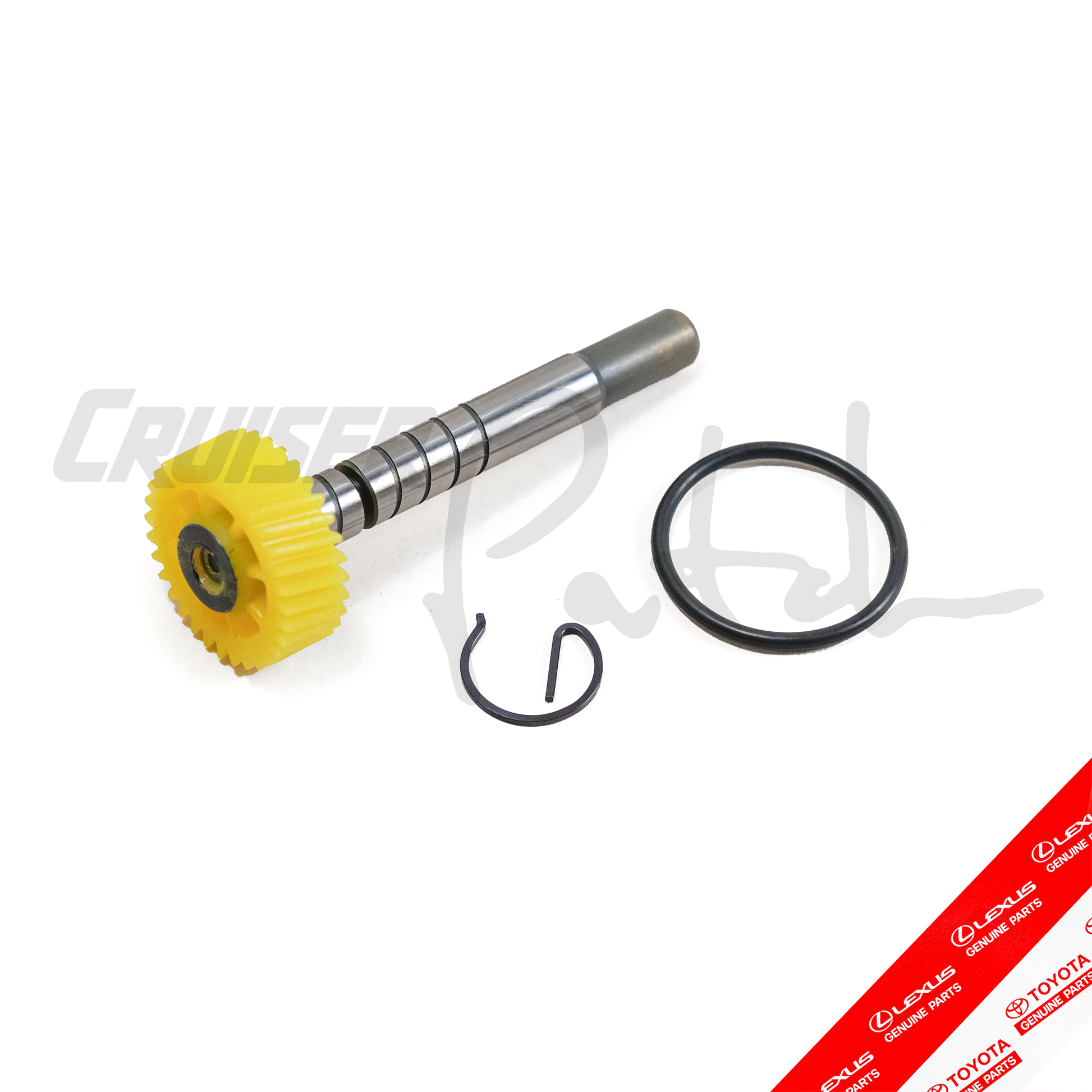

33403-69235 kit includes: (yellow gear, green head, 70mm long)

• OEM gear sub-assy, speedometer driven ATM (1x): 33403-69235
• OEM clip for ATM/MTM speedometer shaft sleeve (1x): 90468-12005
• OEM ring, o, for speedometer driven gear (1x): 96711-24030

Fitment details (70mm shaft sleeve):

• 01.1992-07.1999 Toyota Land Cruiser (FJ70, FZJ73)
• 01.1990-11.2006 Toyota Land Cruiser (FJ80, FZJ80, HDJ80, HZJ80, HDJ81, HZJ81)
• 11.1995-12.1997 Lexus LX450 (FZJ80)

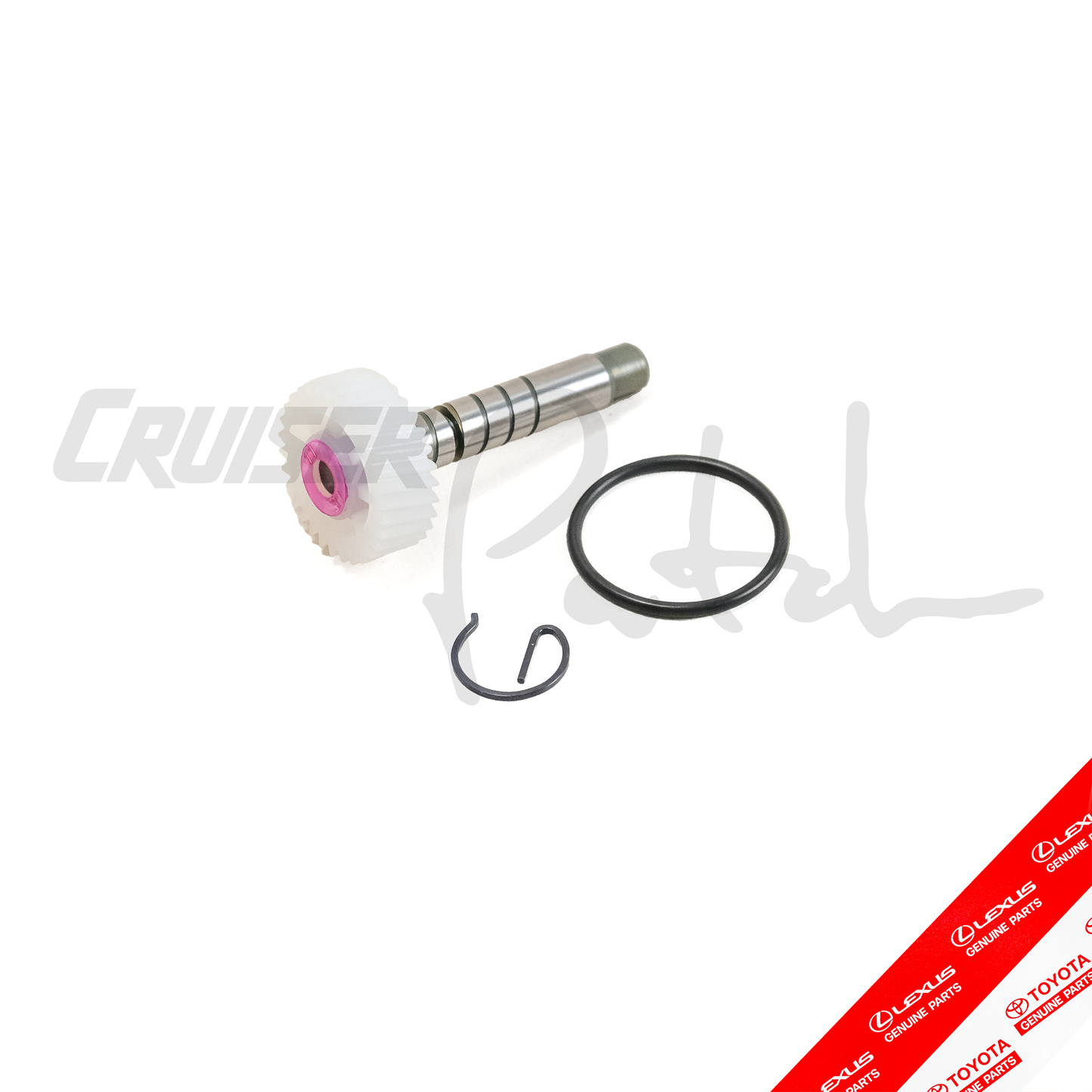

33403-69305 kit includes: (white gear, pink head, 50mm long)

• OEM gear sub-assy, speedometer driven ATM (1x): 33403-69305
• OEM clip for ATM/MTM speedometer shaft sleeve (1x): 90468-12005
• OEM ring, o, for speedometer driven gear (1x): 96711-24030

Fitment details (50mm shaft sleeve):

• 08.1999-07.2008 Toyota Land Cruiser (FZJ71)
• 01.1998-08.2007 Toyota Land Cruiser (UZJ100, HDJ100, FZJ100, HDJ101, HZJ105, FZJ105)

• 01.1998-07.2007 Lexus LX470 (UZJ100)

MADE IN JAPAN
