OEM 60 Series, 70 Series, 80 Series, 100 Series Steering Knuckle Bushing & Bearing Sets

Sold individually. One bushing/bearing kit required per side.

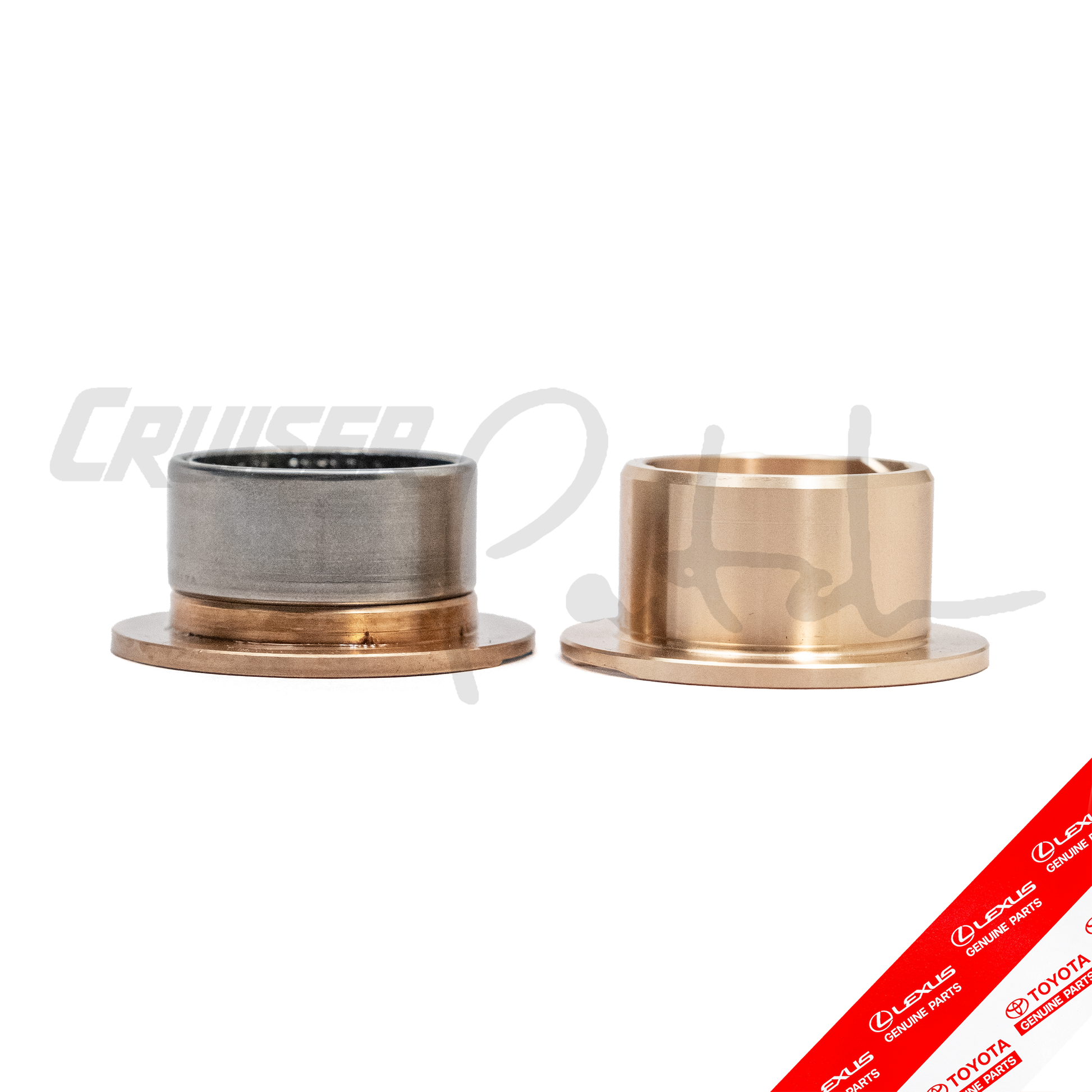

Originally designed for the 80 Series Toyota Land Cruiser, the solid bronze knuckle bushings were updated to a needle bearing & bushing for the 100 Series. Some avid off-roaders retrofit the solid bushings into their 100 Series in an effort to decrease potential failure points. On the other hand, some 80 series owners elect to retrofit the needle bearing into their solid front axle to reduce NVH (noise, vibration, harshness).

While the needle bearing offers alleged increases in fuel efficiency (by reducing drag), some argue that one less moving part helps on the trail. Needle bearing failure can destroy a CV axle if not addressed.

Bushing only includes:

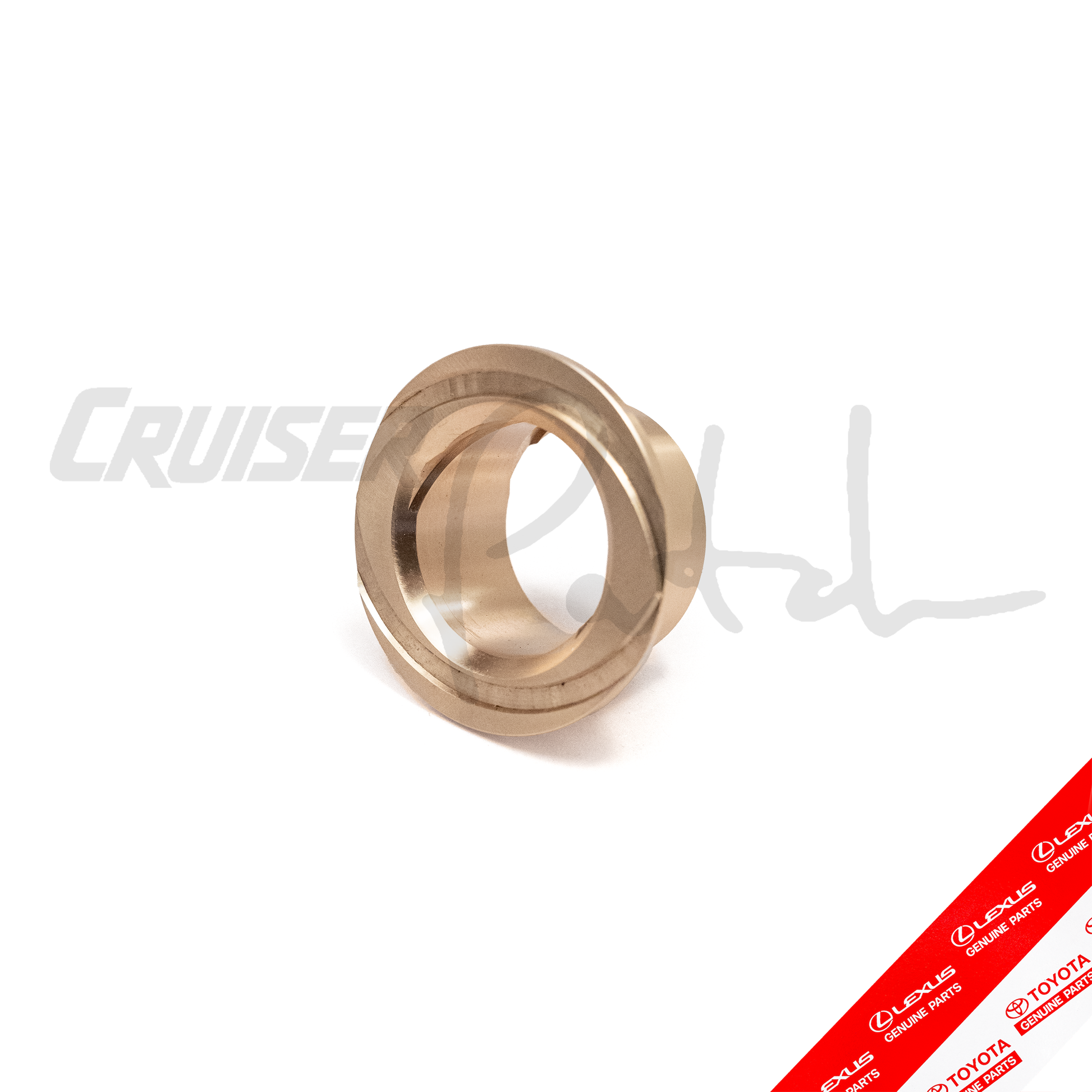

• OEM brass solid bushing, for steering knuckle (1x): 90381-33001

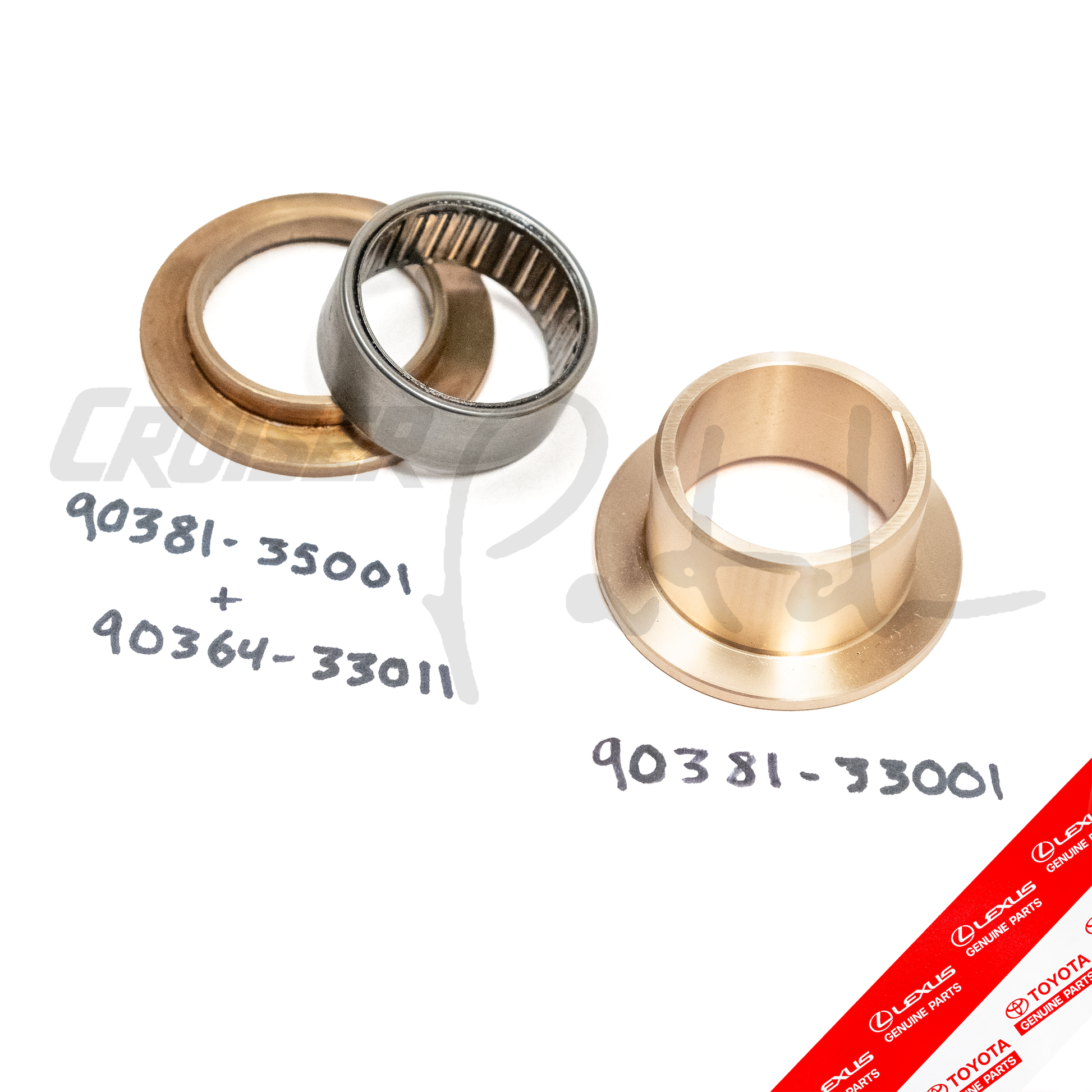

Bushing & needle bearing includes:

• OEM brass solid half bushing (1x): 90381-35001
• OEM bearing, needle (1x): 90364-33011

Fitment details:

• 01.1998-07.2007 Toyota Land Cruiser (UZJ100, HDJ100, FZJ100, HDJ101, HZJ105, FZJ105)
• 01.1990-11.2006 Toyota Land Cruiser (FJ80, FZJ80, HDJ80, HZJ80, HDJ81, HZJ81)
• 08.1999+ Toyota Land Cruiser (HZJ71, HZJ74, HZJ76, HZJ78, HZJ79, FZJ71, FZJ74, FZJ76, FZJ78, FZJ79, GRJ71, GRJ76, GRJ78, GRJ79, VDJ76, VDJ78, VDJ79, HDJ78, HDJ79)
• 08.1987-02.1992 (BJ60, HJ60, HJ61, FJ62)
• 11.1995-12.1997 Lexus LX450 (FZJ80)

MADE IN JAPAN
