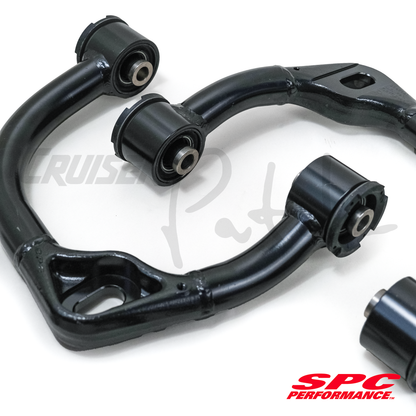

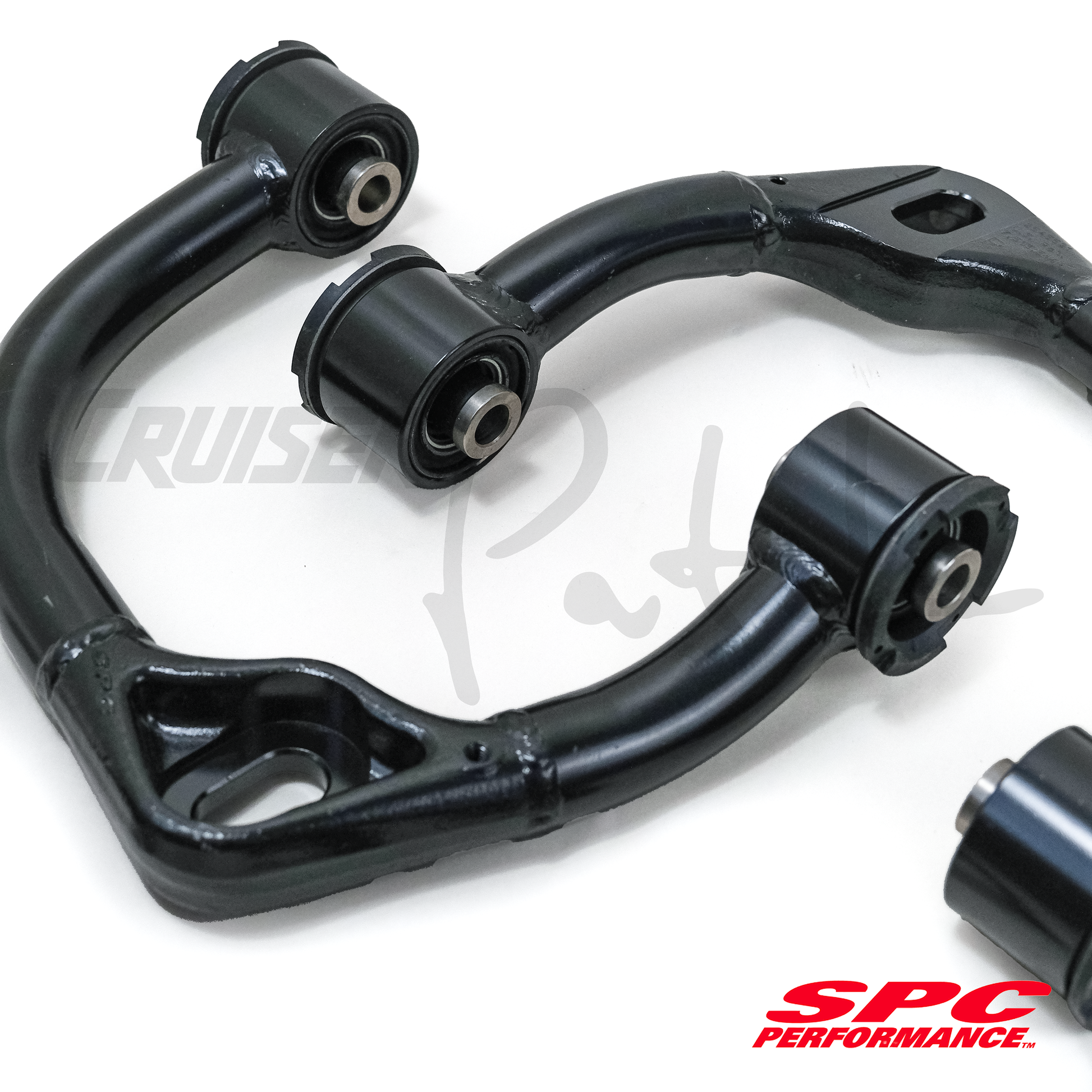

SPC IFS 100 Series Toyota Land Cruiser LX470 Upper Control Arm Pair 25455

Sold in pairs (2x)

SPC upper ball joints feature a fully adjustable, patented design, that when working properly ensure maximum customization for high caster numbers and OE+ handling even after lifting a 100 Series Toyota Land Cruiser or Lexus LX470.

We recommend these arms are paired with the Cruiser Patch SPC UCA lockout plate kit for maximum security of the ball joints (read more on the lockout plate product page).

Installation notes:

• Modern SPC ball joint boots may sit higher than factory boots (may not contact the top of the spindle/knuckle assembly). This is normal as the 35102 UBJs from SPC are designed to fit several vehicle platforms.
• Use factory hardware and torque specs where applicable
• Tech Tip: use MP grease to keep the washers from falling off the bushings during installation

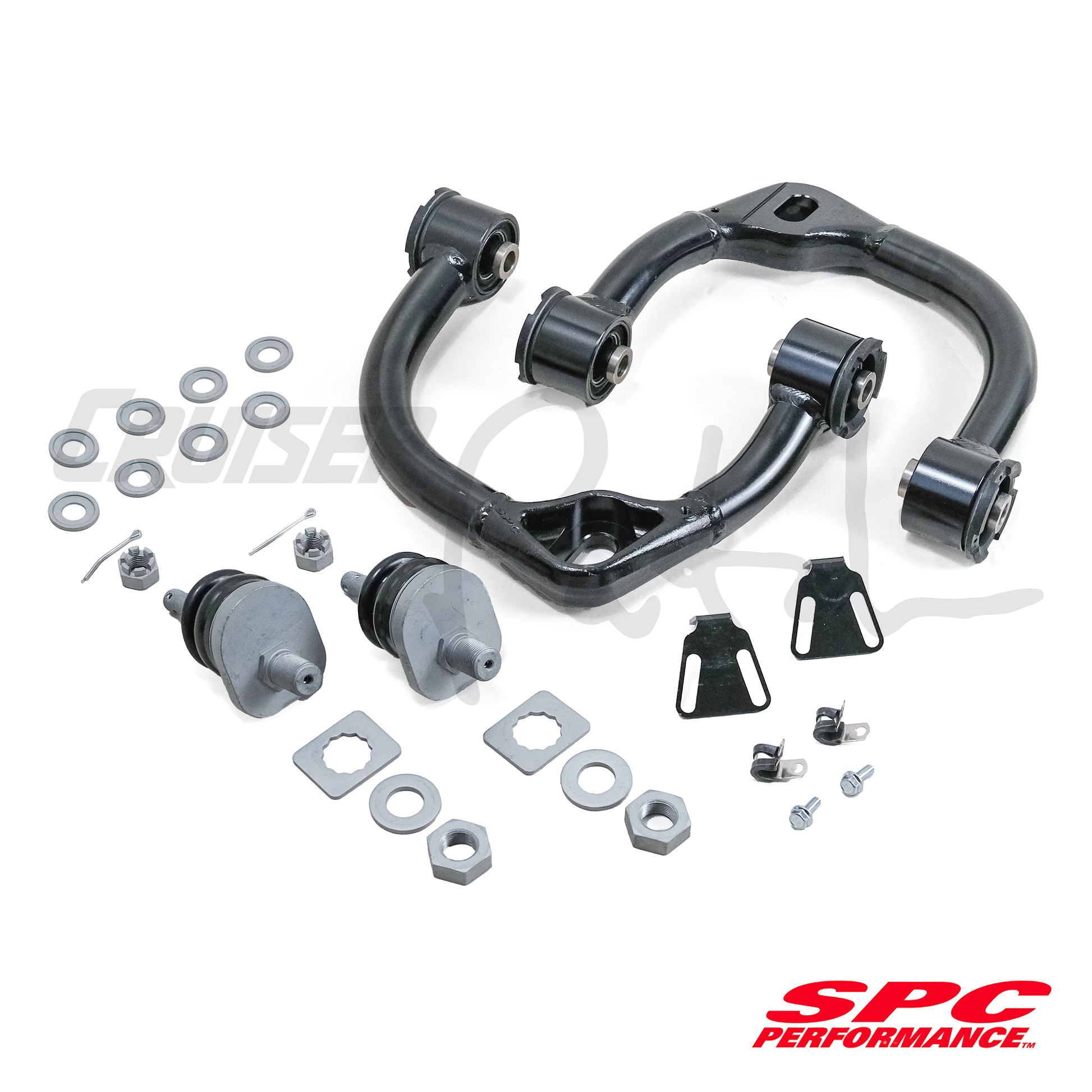

Each set includes:

• SPC upper control arms (2x): 25455 (now superseded by 35455)
• SPC sealed ball joint (2x): 35102 (replaces 25002)
• SPC pre-installed xAxis™ sealed flex joints (4x):
• ABS wire clamp & bolt (2x):

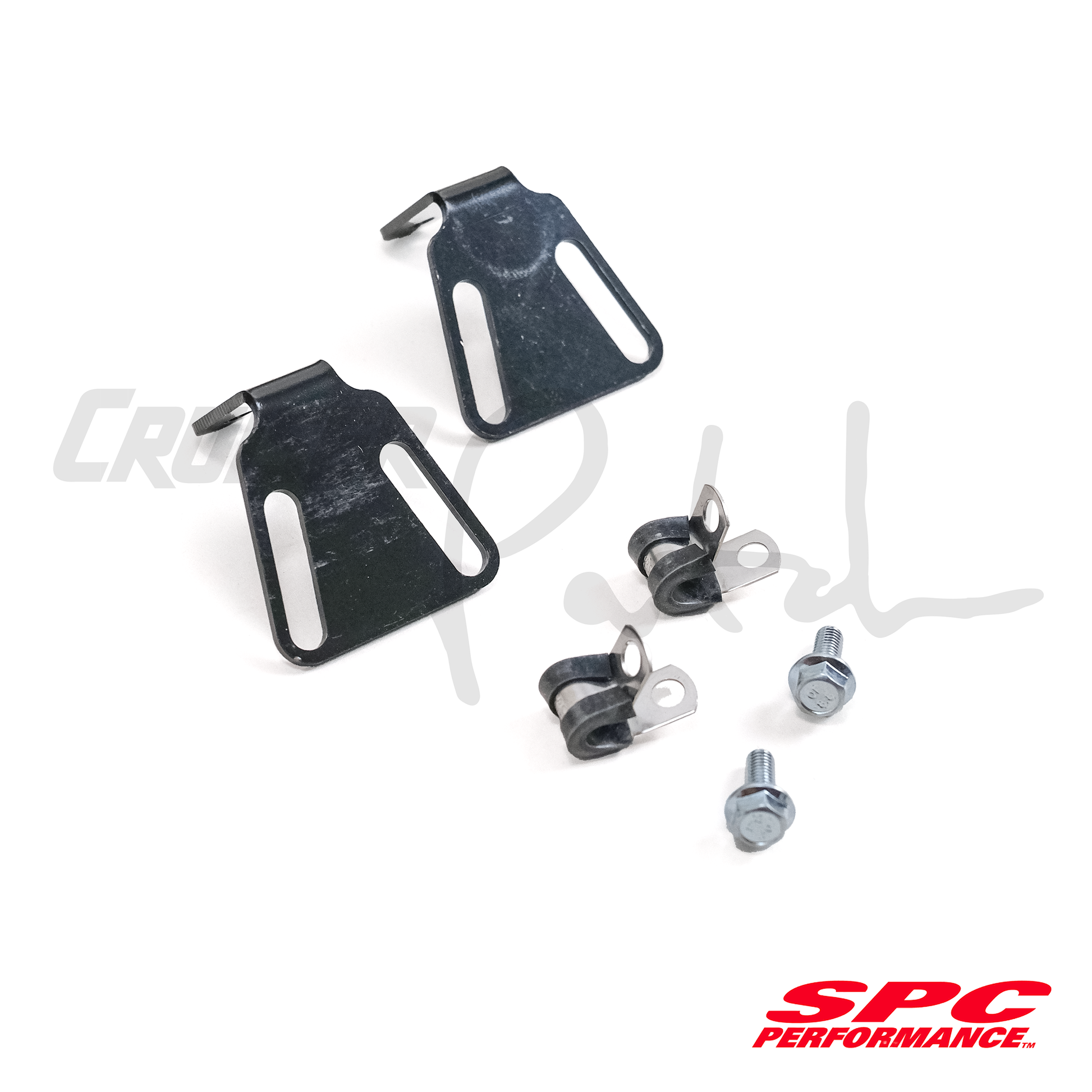

• Optional AHC height sensor brackets (2x):
• SPC 25455 installation instructions

Vehicle fitment

• 01.1998-08.2007 Toyota Land Cruiser (UZJ100, FZJ100, HDJ100, HDJ101)
• 01.1998-07.2007 Lexus LX470 (UZJ100)

MADE IN USA
