SPC IFS 100 Series Toyota Land Cruiser LX470 Upper Control Arm Pair 35455

Sold in pairs (2x)

The SPC upper control arm pair for the 100 Series Toyota Land Cruiser and Lexus LX470 offer customizable alignment options for camber and caster balancing the two for a perfect, custom setup. For vehicles equipped with AHC, SPC includes a sensor bracket which can be used to retain the factory hydraulic suspension (found in the LX470 and some 100 Series Toyota Land Cruisers).

We recommend these arms are paired with the Cruiser Patch SPC UCA lockout plate kit for maximum security of the ball joints (read more on the lockout plate product page).

SPC upper ball joints feature a fully adjustable, patented design, that when working properly ensure maximum customization for high caster numbers and OE+ handling even after lifting a 100 Series Land Cruiser.

With 80 degrees of articulation, SPC's patented ball joint design allows for additional flexibility within a suspension's working range.

Installation notes:

• Modern SPC ball joint boots may sit higher than factory boots (may not contact the top of the spindle/knuckle assembly). This is normal as the 35102 UBJs from SPC are designed to fit several vehicle platforms.
• Use factory hardware and torque specs where applicable
• Tech Tip: use MP grease to keep the washers from falling off the bushings during installation

Features:

• AHC compatible
• 0.00 to +4.00 caster

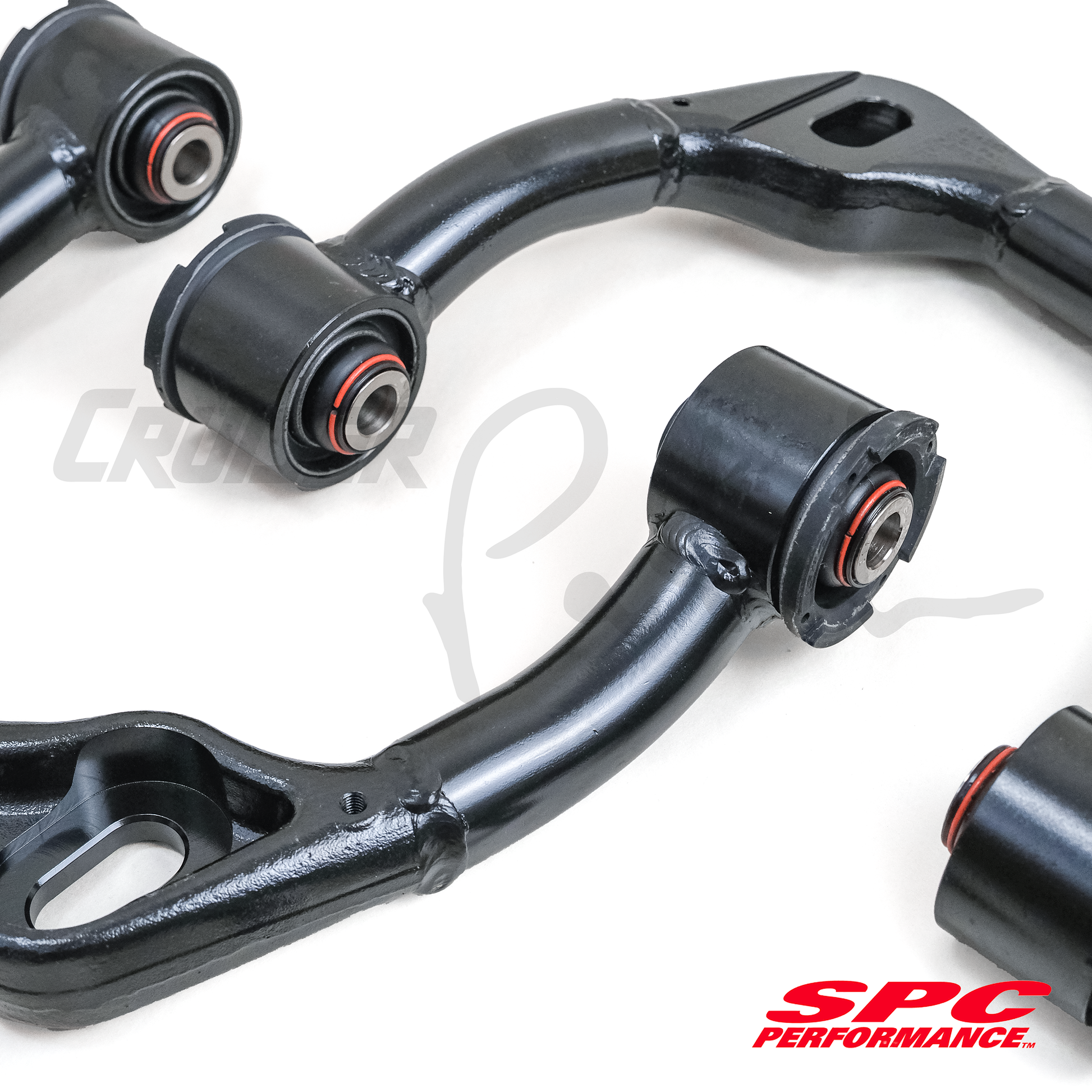

• Chromoly tube & forged steel nose
• 80° articulated ball joints
• Ball joints 25% larger cross-section compared to OE
• Finished in black powder coat
• UCAs made in USA

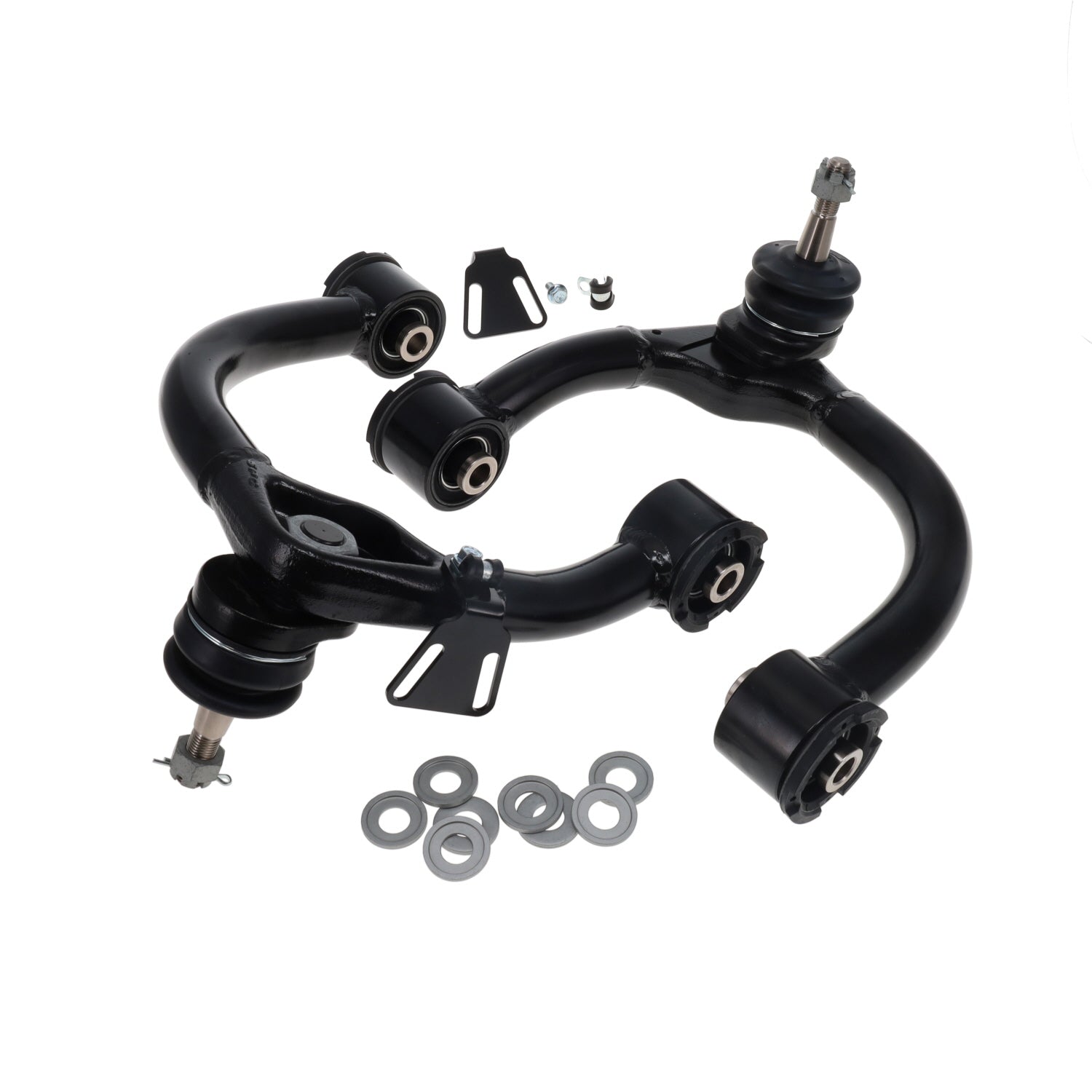

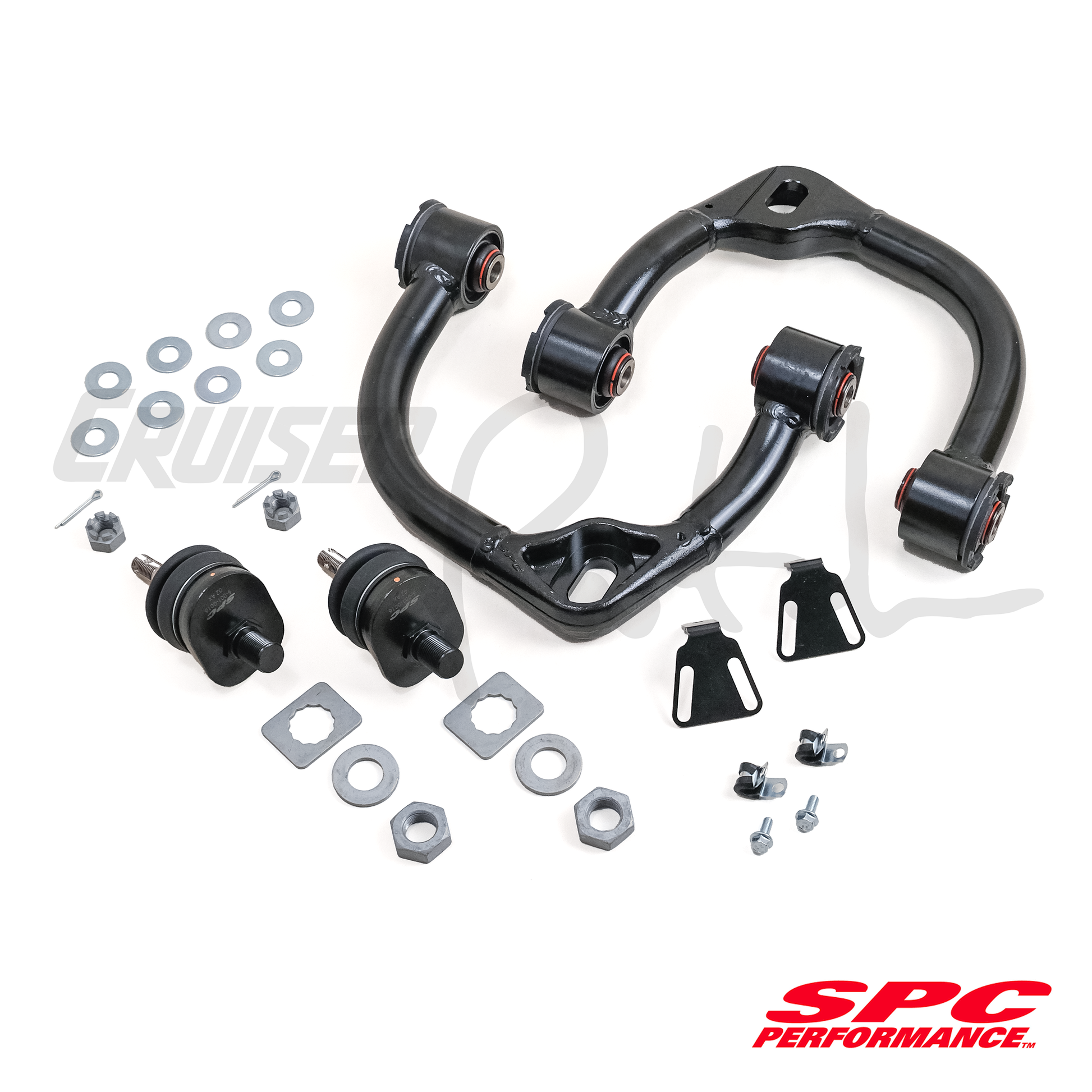

Each set includes:

• SPC upper control arms (2x): 35455
• SPC sealed ball joint (2x): 35102
• SPC xAxis™ sealed, pre-installed flex joint bushings (4x):

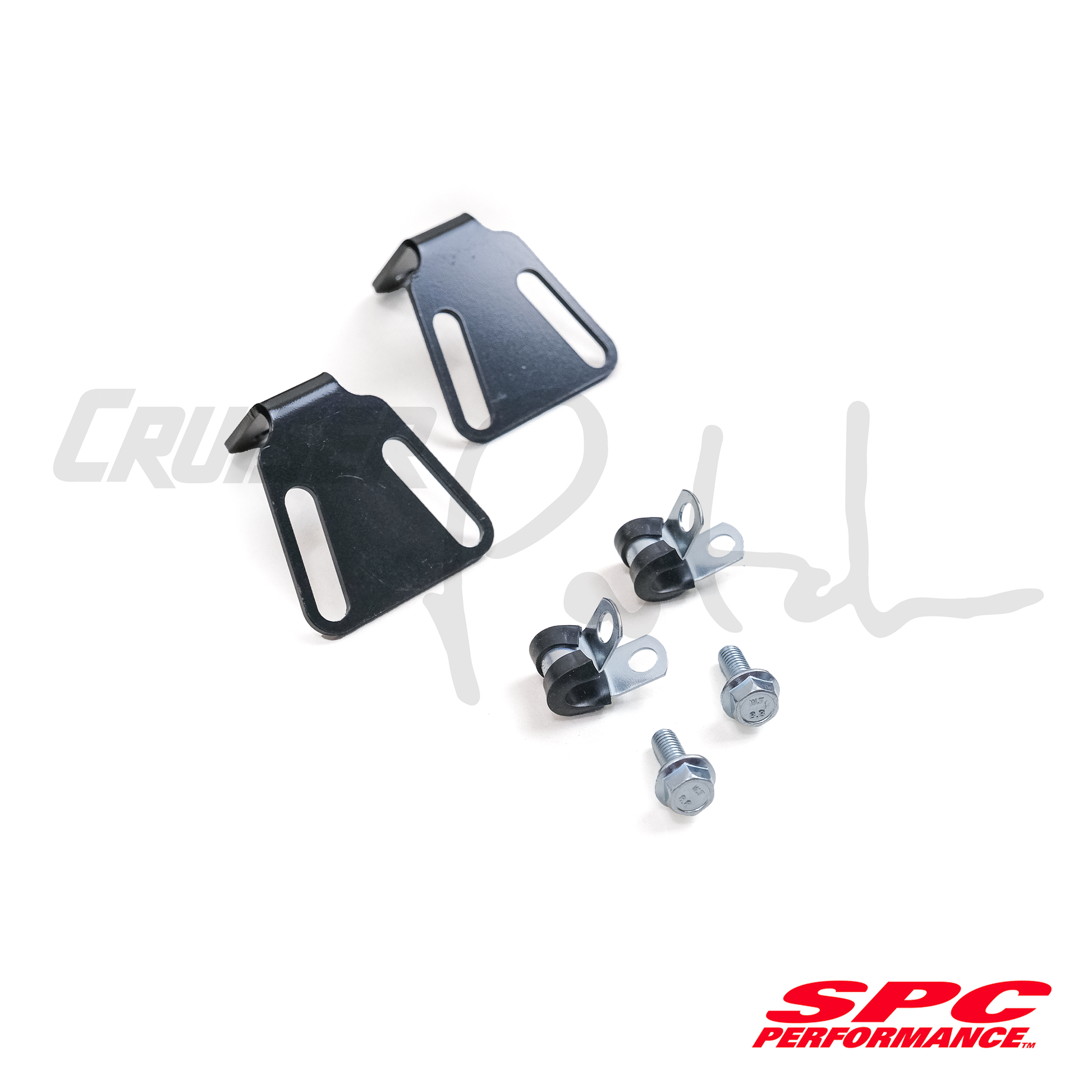

• ABS wire clamp & bolt (2x):
• Optional AHC height sensor brackets (2x):
• SPC 35455 installation instructions
• SPC performance decal sticker

Vehicle fitment

• 01.1998-08.2007 Toyota Land Cruiser (UZJ100, FZJ100, HDJ100, HDJ101)
• 01.1998-07.2007 Lexus LX470 (UZJ100)

MADE IN USA
