Sumo Gear 80 Series High Range "Underdrive" & Low Range 3.31:1 Reduction Gear Sets for HF2A/HF2AV Transfer Case

For 80 Series full-time 4WD high range (1:1 to 1.097:1) & low range (2.488:1 to 3.31:1)

"Designed to ensure performance, reliability, and strength every Sumo Gear is precision machined out of high-quality billet material in Japan by an O.E. gear manufacturer using the best machines and tooling available ensuring smooth, quite operation."

Reduce your full-time 4WD transfer case (HF2A/HF2AV) from the factory 1:1 ratio to 1.097:1 ratio for approximately 10% lower gearing.

By reducing the output of high range, the final drive will be reduced from 4.11:1 to 4.56:1 which makes re-gearing the transfer case a good alternative to re-gearing the differentials.

Cruiser Patch recommends purchasing a transfer case gasket overhaul kit when installing new gears or rebuilding the T-case.

High range reduction: 1:1 to 1.097:1

Low range reduction: 2.488:1 to 3.31:1

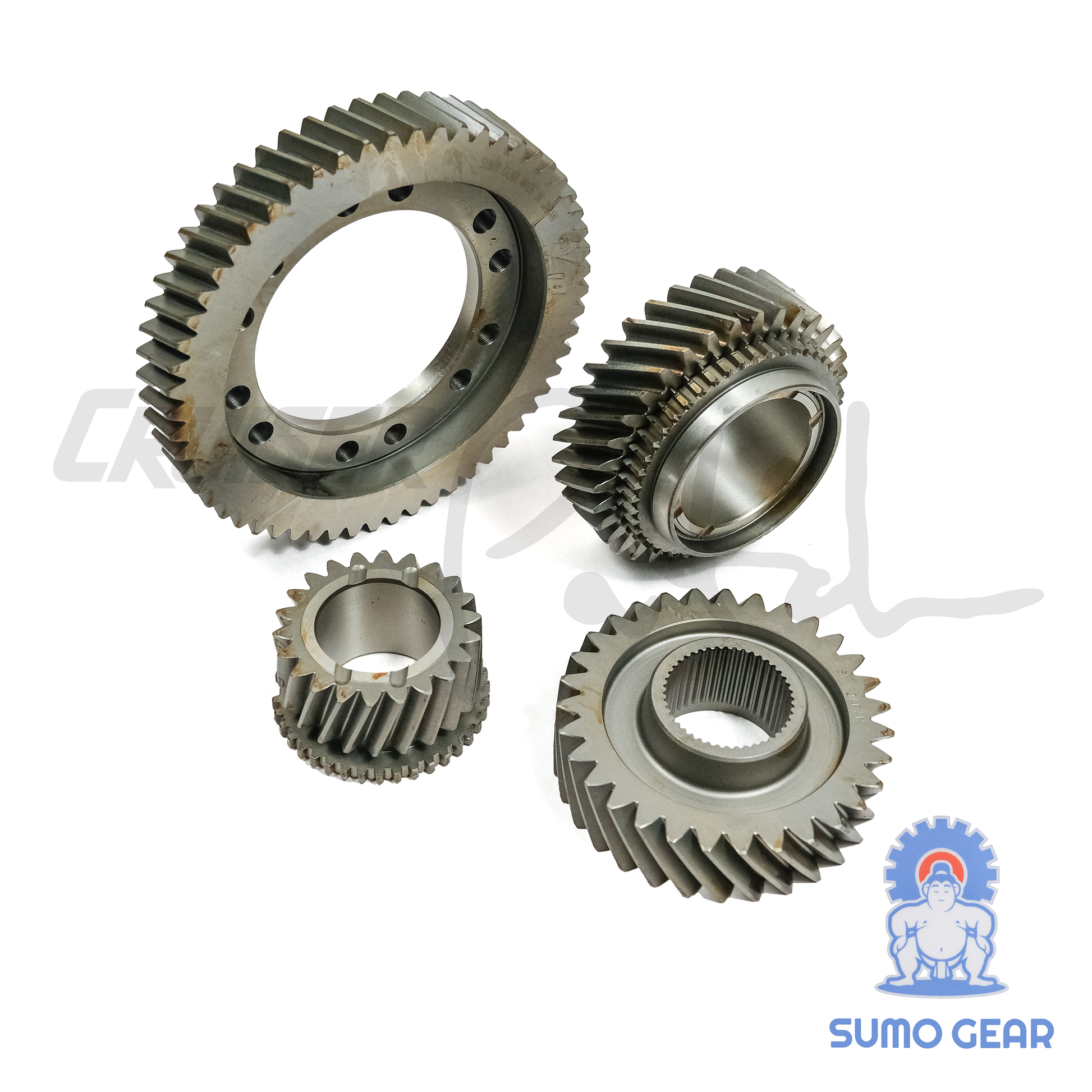

Includes:

• Sumo Gear input gear (1x): 31

• Sumo Gear idler gear (1x): 22
• Sumo Gear low gear (1x): 58
• Sumo Gear hi gear (1x): 34

Fitment details:

• 01.1990-01.1998 Toyota Land Cruiser (FJ80, FZJ80, HDJ80, HZJ80, HDJ81, HZJ81)
• 01.1990-01.1998 Lexus LX450 (FZJ80)

• 01.1996-10.2001 Toyota Mega Cruiser (BXD20)

MADE IN JAPAN
