SuperPro 100 Series Front Differential Drop Kit

SuperPro 100 Series Front Differential Drop Kit

Regular price $279.99 USD
Regular price Sale price $279.99 USD
Sale Sold out

Low stock: 1 left


When lifting a 100 Series Land Cruiser or Lexus LX470, it's necessary to add a differential drop in order to correct the CV angle at the new ride height. This kit lowers the front diff by approximately 25mm.

The front diff drop bracket and 65mm OD spacers lower the differential by approximately 20mm according to SuperPro. The nylon spacers and small steel spacers lower the OEM front skid plate post-lift. SuperPro provides grade 10.9 replacement hardware for the diff drop bracket but one could just as easily reuse the OEM hardware.

It is the opinion of Cruiser Patch staff that the steel spacers have low quality control powder coating compared to other brands however the actual differential drop bracket does not suffer from this issue.

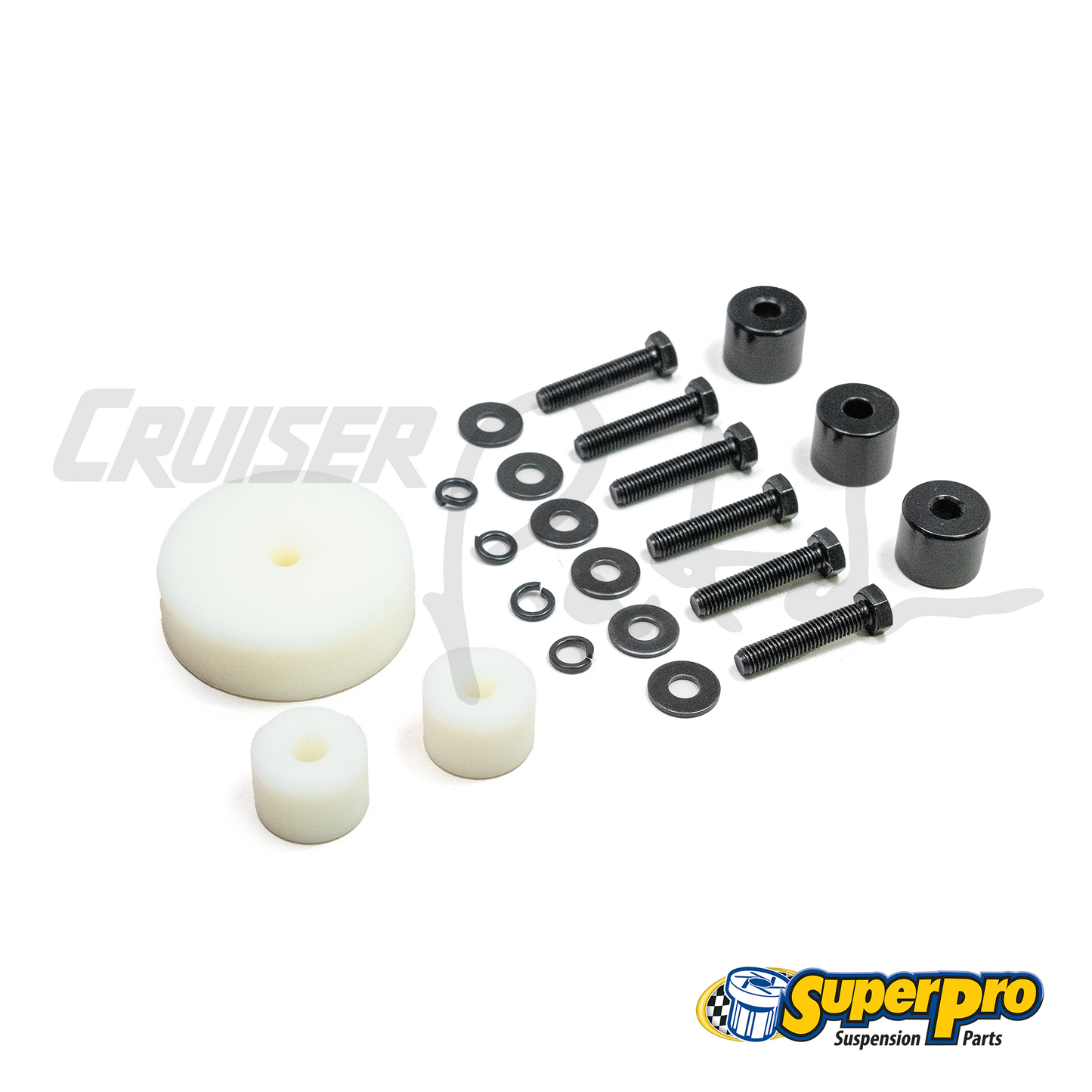

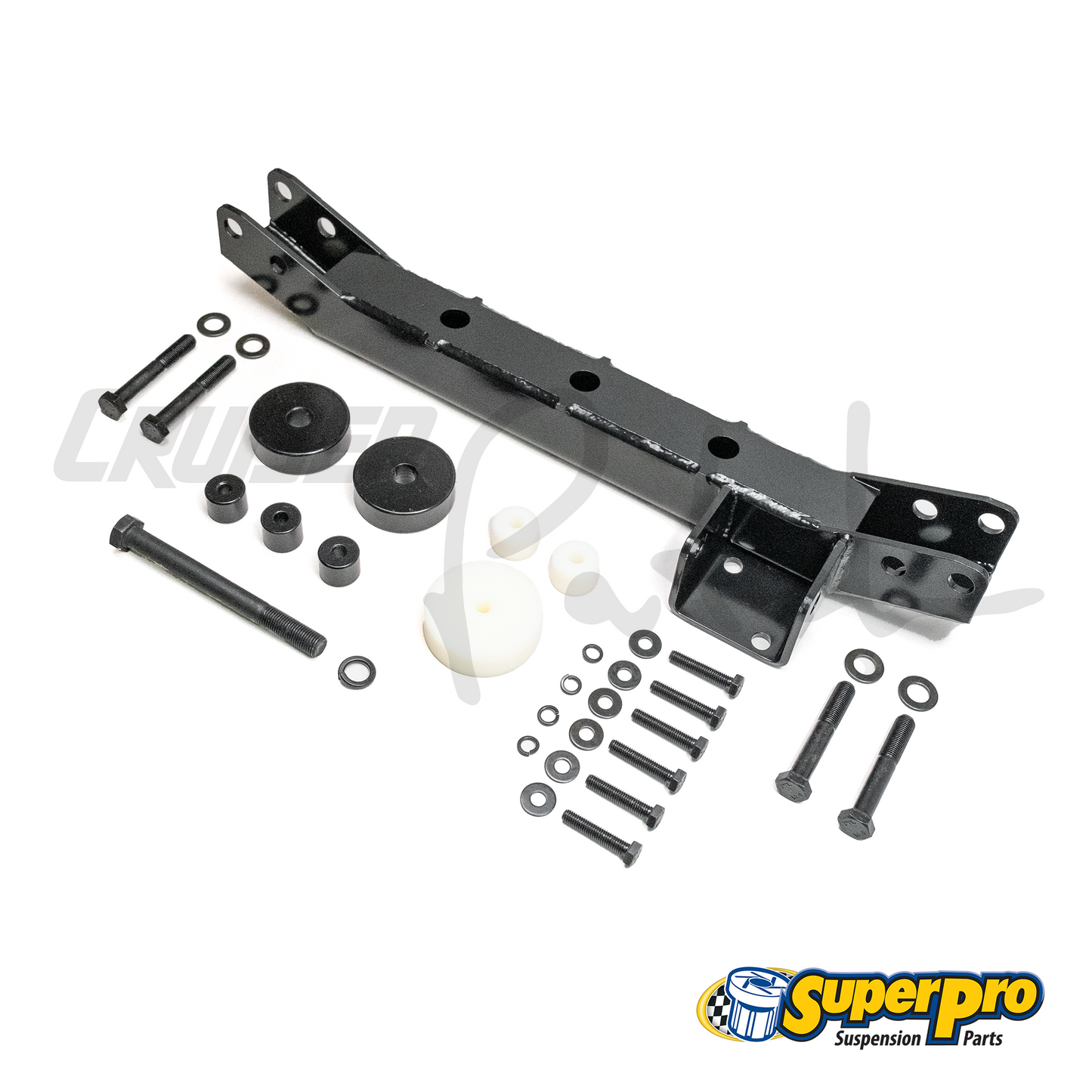

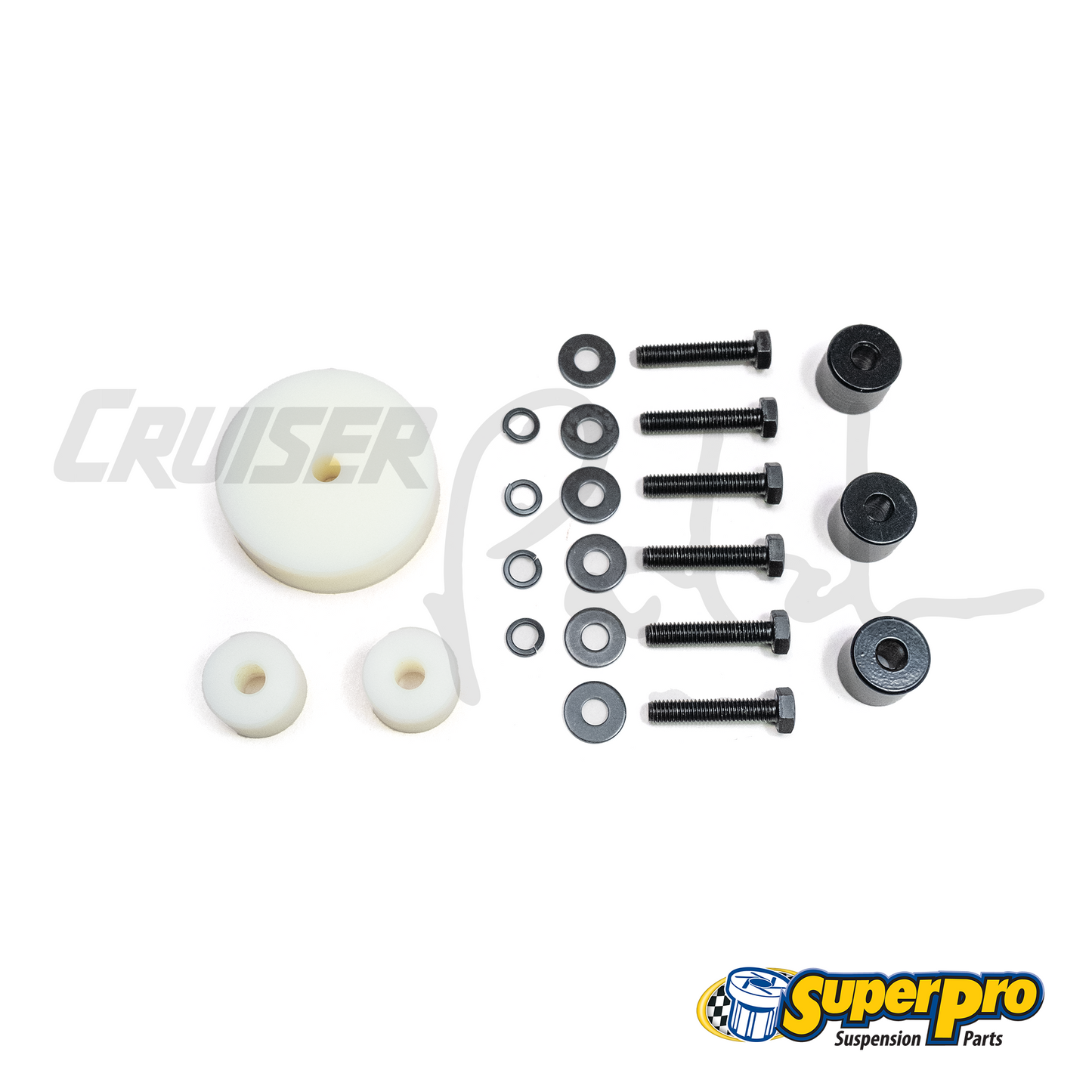

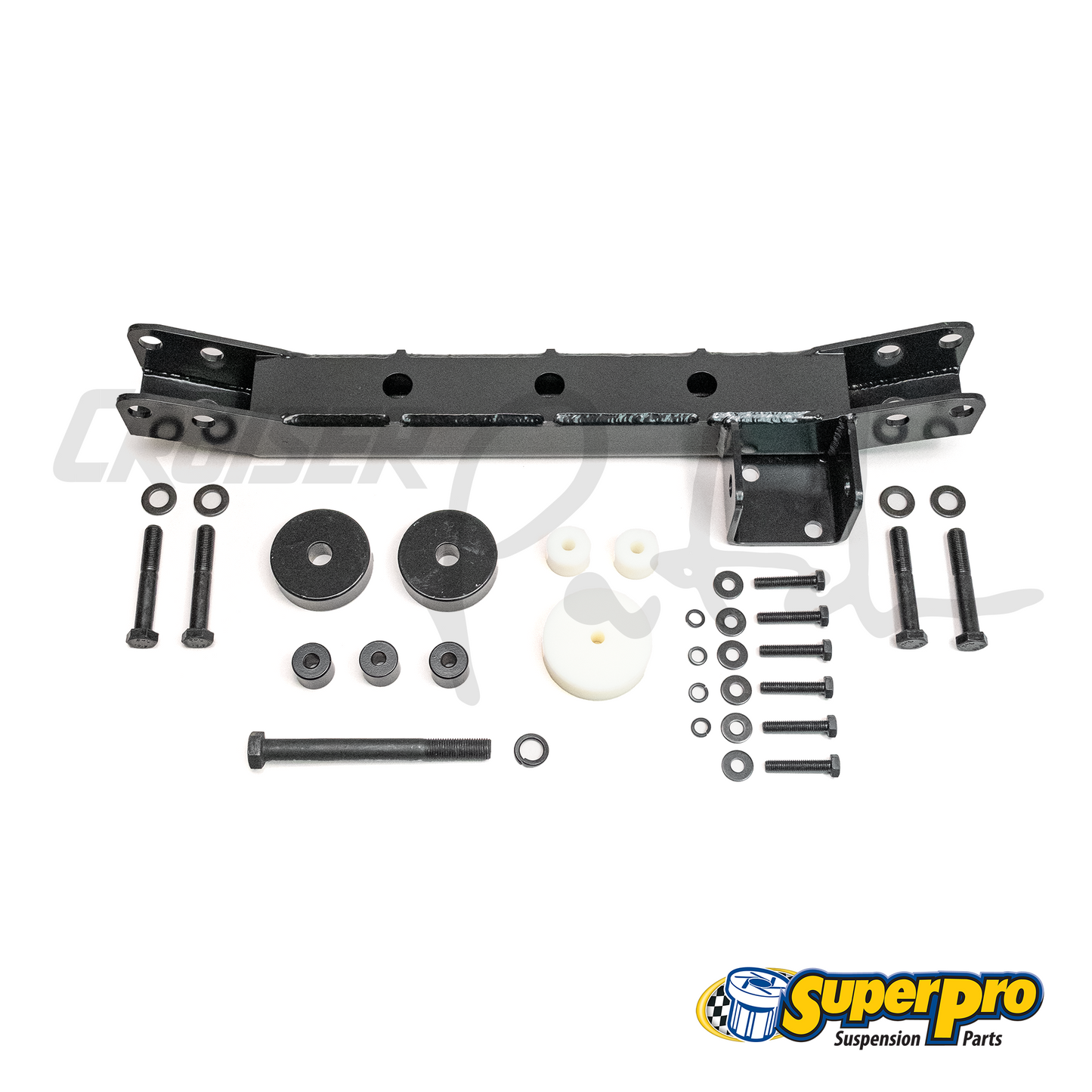

  • SuperPro Front Differential Drop kit (1x): TRCLC100DD
  • Steel Diff Drop bracket (1x)
  • Steel spacers 65mm OD x 20mm thick (2x)
  • Steel spacers 25mm OD x 20mm thick (3x)
  • Large nylon spacer 70mm OD x 22mm thick (1x)
  • Small nylon spacers 30mm OD x 21mm thick (2x)
  • M14x1.5x140mm grade 10.9 bolt (1x)
  • M14 spring washer (1x)
  • M12x1.25x75mm grade 10.9 bolts (4x)
  • M8x1.25x40mm bolts (6x)
  • M8 flat washers (6x)
  • M8 spring washers (4x)
  • SuperPro Instructions

Fits 1998-2007 Toyota Land Cruiser, 1998-2007 Lexus LX470

Includes SuperPro USA lifetime warranty

Engineered, tested and assembled in Brisbane, Australia
