Toyota 4WD IFS CV axle seal driver Special Service Tool 09550-00032 replica
Toyota 4WD IFS CV axle seal driver Special Service Tool 09550-00032 replica
21 in stock
Next batch expected Jan-Feb 2025

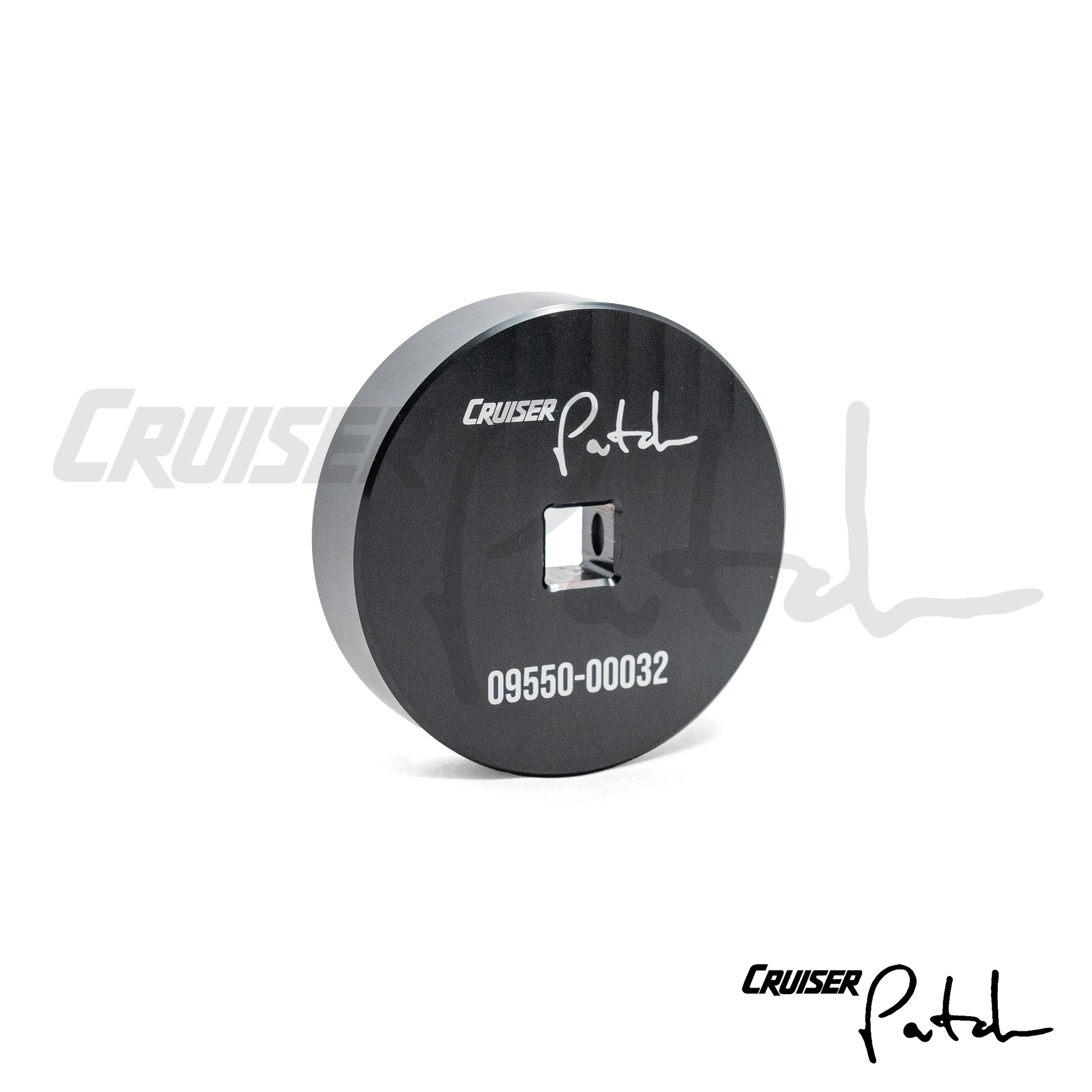

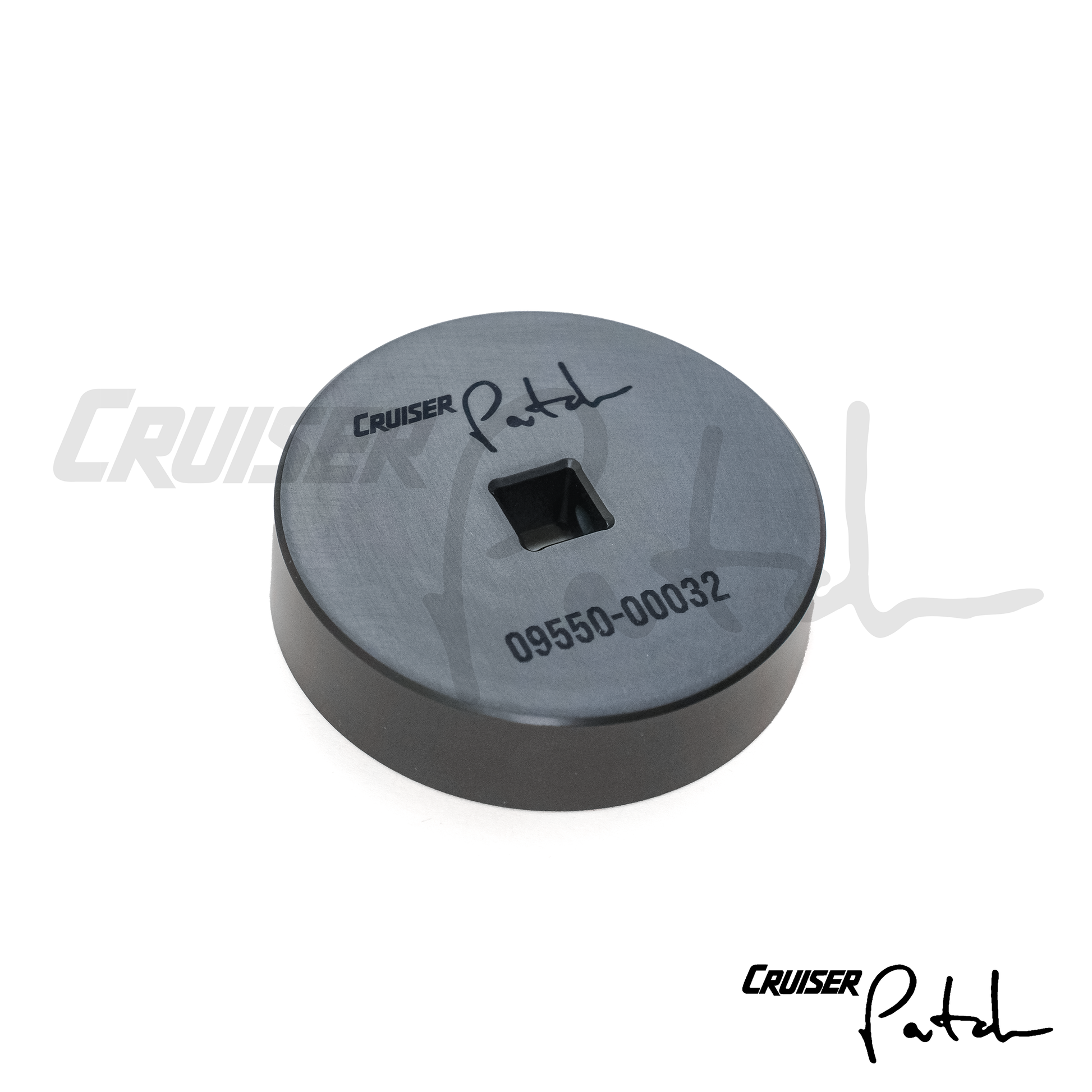

Anodized in black and cut from 6061-T6 aluminum, these seal drivers are designed to last- beautifully finished with laser engraved details on the reverse side.

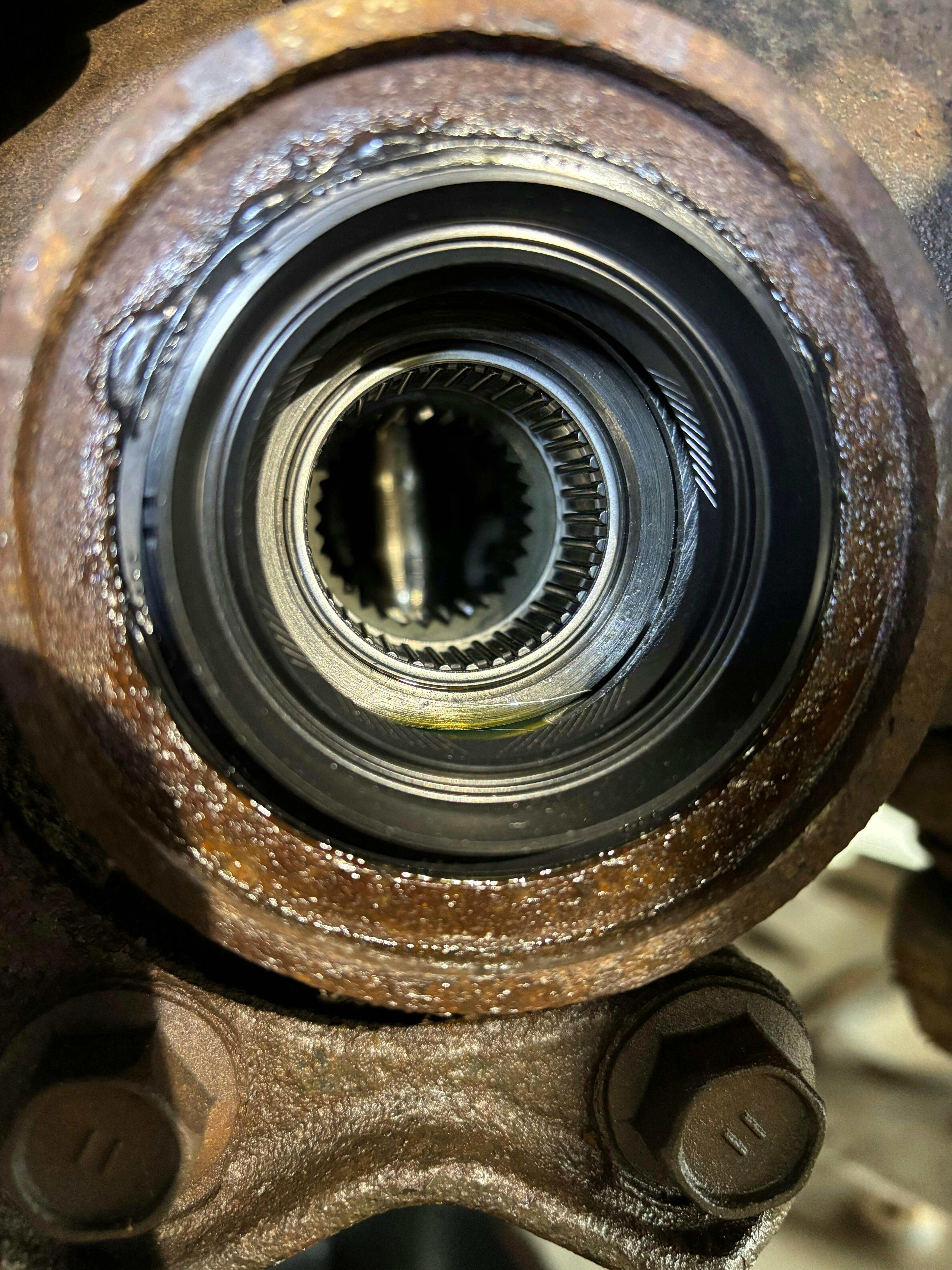

When replacing Toyota 4WD IFS CV axle seals it is paramount to ensure they are set to the correct depth. Any further or not far enough and the seal may leak. This tool allows users to effortlessly install new seals worry-free.
Instructions:

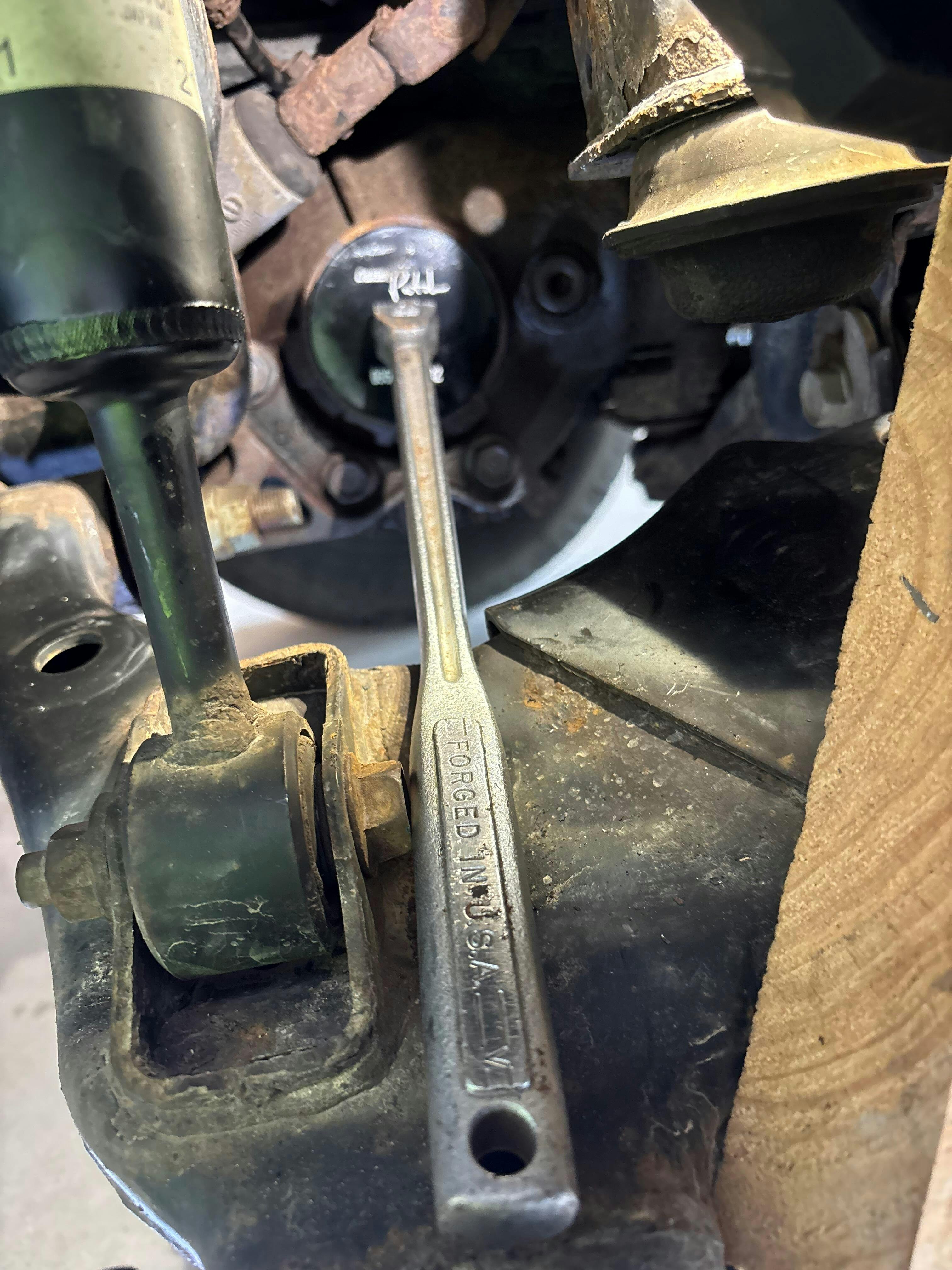

Use any 1/2" drive extension as a handle to push the seal in by hand- then tap on the seal driver tool with a brass or plastic mallet until the seal is fully seated (you cannot drive it further than the tool will allow- in other words, the tool will drive the seal into the perfect depth).
Works with: Toyota IFS front diff axle seal kit
- OEM axle seal 90311-47013
- OEM axle seal 90311-47027

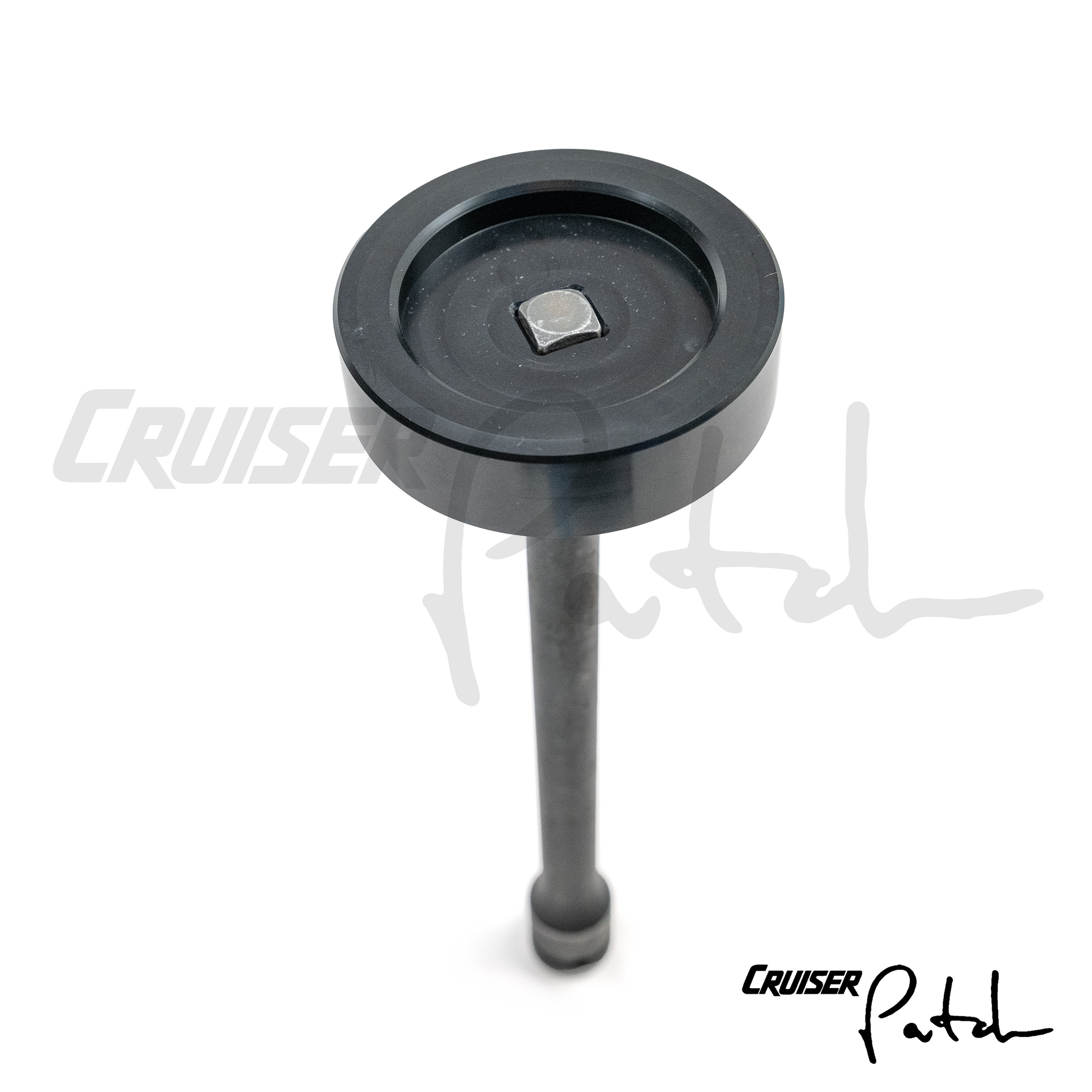

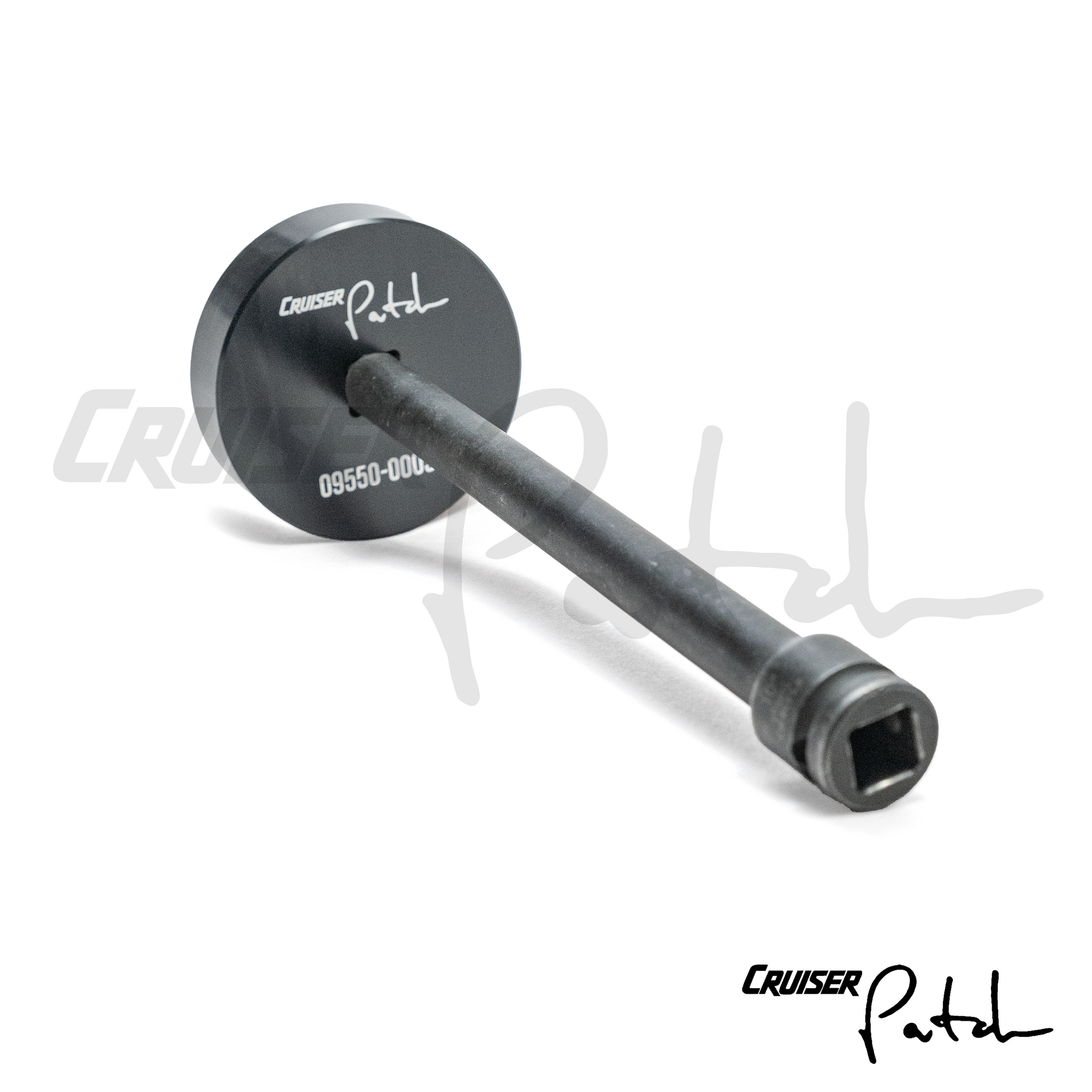

Designed to fit any 1/2" drive extension (not included)
Includes:
- Cruiser Patch 09550-00032 seal driver tool
Fitment details: Fits every IFS 4WD Toyota truck and SUV
- 1998-2021 Toyota Land Cruiser
- 1998-2007 Lexus LX470
- 2008-2021 Lexus LX570
- 2006-2014 Toyota FJ Cruiser
- 2002+ Toyota 4runner
- 2004+ Toyota Tacoma
- 2009-2021 Lexus GX460
- 2002-2009 Lexus GX470
- 2024+ Lexus GX550
- 2024+ Toyota Land Cruiser 250 (Prado)
- 2006+ Toyota Tundra
- 2007+ Toyota Sequoia
DESIGNED IN ATLANTA, GA
Share
This tool is a MUST when replacing the front differentials seals!!! Perfect installation EVERY time and saves TIME!!!
Bought this tool after installing the first seal wrong. This made it so much easier to make sure it was at the right depth, and more importantly NO MORE LEAKS!
The LC spark plug tool to add into seal driver slid still too short to tap/drive in with hammer. It would be nice if you also sold an additional extender to put onto LC spark plug tool to make handle longer.
Tom,
Thanks for the feedback- because of your note, we've redesigned the tool to accept 1/2' drive extensions as the handle. This change will be implemented in the fourth iteration of the tool (V4 coming late October 2024).
To all customers who want one, we're happy to offer an exchange for the V3 once the next batch arrives.
Thanks for your support and feedback!
