OEM 200 Series Toyota Land Cruiser LX570/460/450D CV Axle Reboot Kits

Sold individually (1x)

The 200 Series Toyota Land Cruiser and other IFS vehicles are prone to ripped, torn, or worn-out CV boots. With the CV inboard and outboard reboot kit, one can easily freshen up the boots and joints with new grease, pliable rubber, and OEM clamps.

When rebooting the outboard joint, one must remove the inboard boot. Therefore the outboard boot kit contains an inboard reboot kit.

See also: Worm-Style CV Boot Clamps

CV axle reboot video (100 Series)

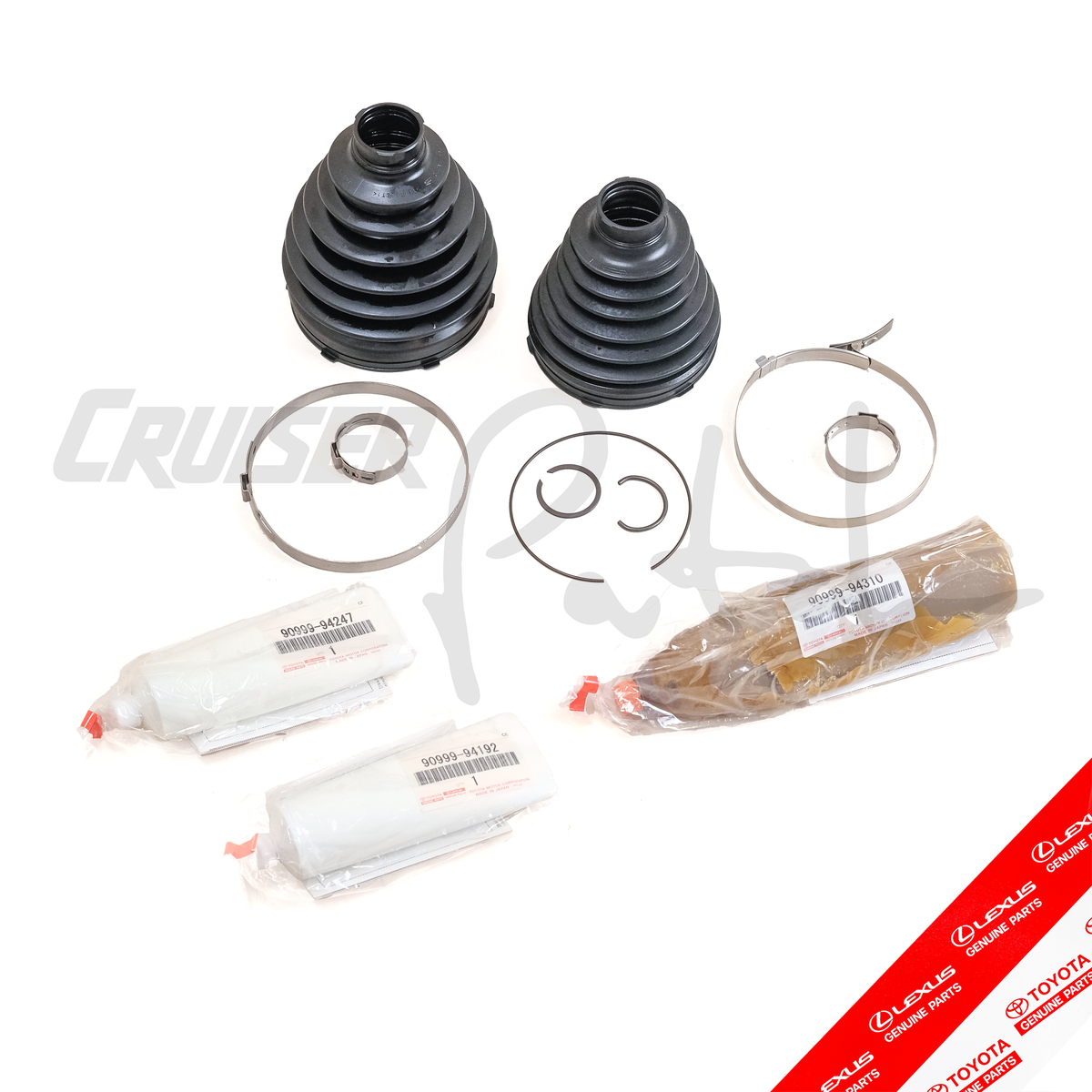

Inboard & Outboard Kit Includes: 04427-60093 (04427-60090, 04427-60091, 04427-60092)

• OEM inboard CV joint boot (1x):
• OEM grease for inboard CV joint (1x): 90999-94310 (288g, 90999-94241)
• OEM ring, shaft snap, for inboard joint (1x): 90521-37010
• OEM clamp no. 1 for front axle inboard joint boot setting (2x): 42345-60130
• OEM clamp no. 2 for front axle inboard joint boot setting (1x): 42345-60150
• OEM ring, shaft snap for front drive inner shaft joint (1x): 43425-60030
• OEM ring, hole snap for front axle inboard joint set (1x): 43425-60020
• OEM outboard CV joint boot (1x):
• OEM grease for outboard CV joint (1x): 90999-94192 (110g, 90999-94235)
• OEM grease for outboard CV joint (1x): 90999-94247 (99g, 90999-94235)
• OEM clamp no. 1 for front axle outboard joint boot setting (1x): 42345-60140

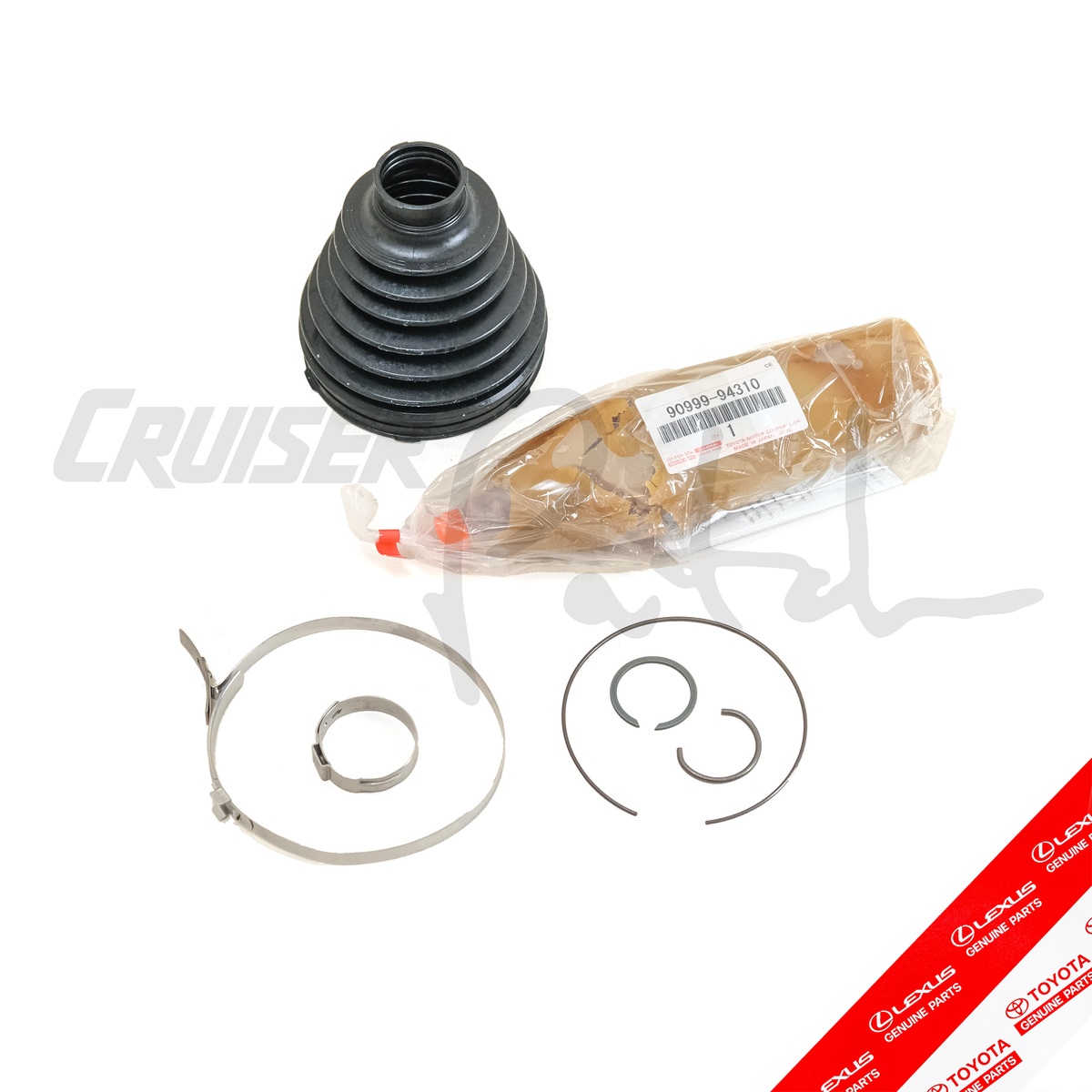

Inboard Kit Includes: 04437-60053 (04437-60050, 04437-60051, 04437-60052)

• OEM inboard CV joint boot (1x):
• OEM grease for inboard CV joint (1x): 90999-94310 (288g, 90999-94241)
• OEM ring, shaft snap, for inboard joint (1x): 90521-37010
• OEM clamp no. 1 for front axle inboard joint boot setting (1x): 42345-60130
• OEM clamp no. 2 for front axle inboard joint boot setting (1x): 42345-60150
• OEM ring, shaft snap for front drive inner shaft joint (1x): 43425-60030
• OEM ring, hole snap for front axle inboard joint set (1x): 43425-60020

Fitment details:

• 09.2007+ Toyota Land Cruiser (UZJ200, URJ200, VDJ200, GRJ200, URJ202)
• 11.2007+ Lexus LX570 (URJ201)
• 01.2012-08.2015 Lexus LX460 (URJ202)
• 09.2015+ Lexus LX450D (VDJ201)

MADE IN JAPAN
